LED Underground Light UG990
- Model
- UG990
- Power
- Customized
- Voltage
- Customized
- CCT
- 2700-6500K
- CRI
- Ra≥80/Ra≥90
- Source
- LED
- Material
- Aluminum
- Finish
- White/Black
- OEM
- Available
- Payment-Tems
- T/T
- Trade-Terms
- EXW/FOB/CFR
- Sea-Port
- Shanghai/Ningbo
Lightac Industry Co.,Limited
Hot in store
-
12V 2835 SMD LED Modules with 1.2W MD190
Inquiry -
1.5W High Power 2835 LED Module MD1800
Inquiry -
1.5 Watt IP65 SMD 2835 12V LED Module MD
Inquiry -
High Lumen LED Module for Sign Board LED
Inquiry -
Indoor 3 LEDs Module Signage Lens 1.5w 1
Inquiry -
0.72W 12V DC Waterproof RGBIC LED Module
Inquiry -
3 Years 170° DC 12v 24V 0.96w IP65 SMD2
Inquiry -
Custom 12v Sign 2w Back Lit Channel Lett
Inquiry
Product Details
Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.

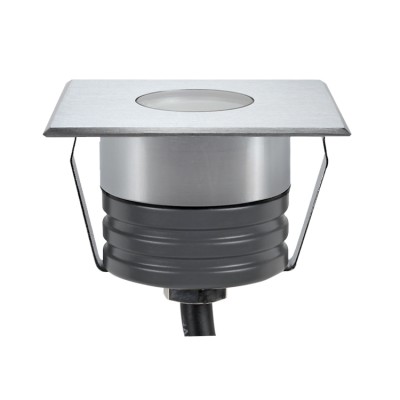

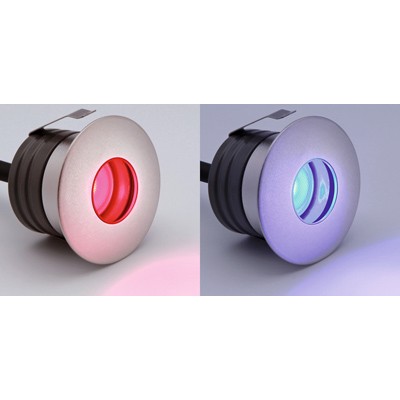

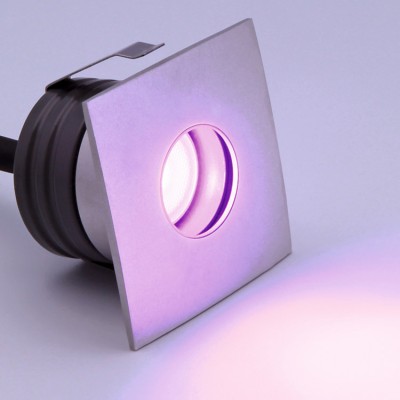

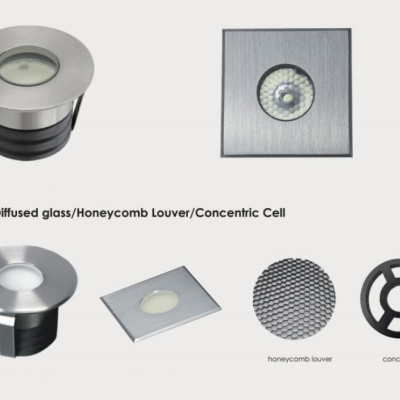

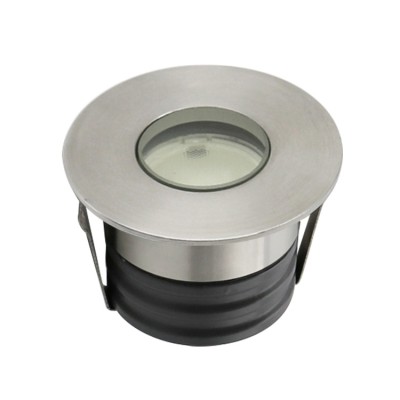

IP67 1W 2W 3W White or RGB Mini 316 stainless steel IP67 with diffused glass LED inground light
Description & Specifications
1W 2W 3W 4W 5W 6W 7W 8W 10W 12W 15W 16W 18W 24W 36W 48W 72W IP67 1W 2W 3W Single color/ RGB Outdoor LED Underground Light LED Stair Lamp Recessed LED Step Light Garden Floor Inground Lighting
Front Cover: 304# or 316# Stainless Steel
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B
LED Source: 1x1W/1x2W/3xSMD5050 single color/3xSMD5050 RGB3in1 Cree/Bridgelux LED
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=7mm
Glass pressure capacity: Full area=1700kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20℃ to 40℃
Power cable: H05RN-F 2x0.75mm2 , L=0.5m (low voltage)
H05RN-F 3x0.75mm2 , L=0.5m (Single color/high voltage)
H05RN-F 4x0.75mm2 , L=0.5m (for RGB)
Mounting sleeve: ABS
Lifespan: 50000hours
3 years warranty
Optional PWM, 0/1-10V, DALI dimmable, DMX512
Size | Wattage | Leds Type | Color | Voltage | Material | IP | Beam Angle |
Dia55mm | 0.5W/1W/ 2W/ 3W/4W | High Power LEDS/ SMD | Single Color OR RGB/RGBW | DC12V /DC24V AC100-240V | SS304/SS316 | IP67 | 8/15/25/30/45/60 asymmetrical lens |
