LED High Bay Light HBL170
- Model
- HBL170
- Power
- Customized
- Voltage
- Customized
- CCT
- 2700-6500K
- CRI
- Ra≥80/Ra≥90
- Source
- LED
- Material
- Aluminum
- Finish
- White/Black
- OEM
- Available
- Payment-Tems
- T/T
- Trade-Terms
- EXW/FOB/CFR
- Sea-Port
- Shanghai/Ningbo
Lightac Industry Co.,Limited
Hot in store
-
12V 2835 SMD LED Modules with 1.2W MD190
Inquiry -
1.5W High Power 2835 LED Module MD1800
Inquiry -
1.5 Watt IP65 SMD 2835 12V LED Module MD
Inquiry -
High Lumen LED Module for Sign Board LED
Inquiry -
Indoor 3 LEDs Module Signage Lens 1.5w 1
Inquiry -
0.72W 12V DC Waterproof RGBIC LED Module
Inquiry -
3 Years 170° DC 12v 24V 0.96w IP65 SMD2
Inquiry -
Custom 12v Sign 2w Back Lit Channel Lett
Inquiry
Product Details
Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.
LED Warehouse Lights Commercial Shop Workshop Garage Factory UFO LED High Bay Light
Description & Specifications
High LUMEN
170lm/W
Best Colling Structure:
1070 pure Aluminum
Dimming：
PNG; 0~10V; DALI

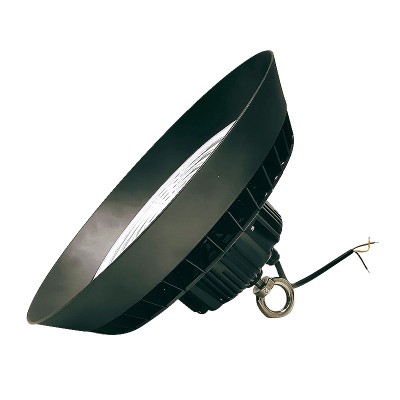

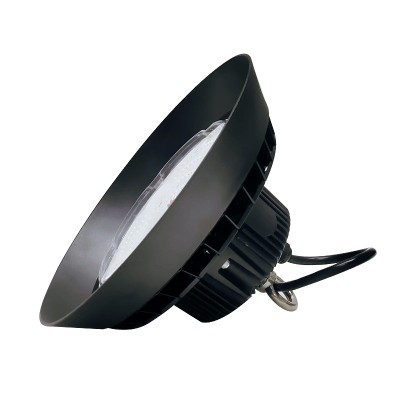

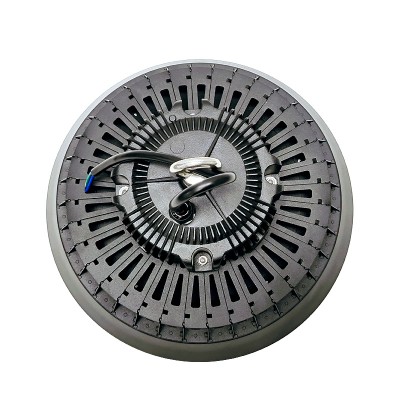

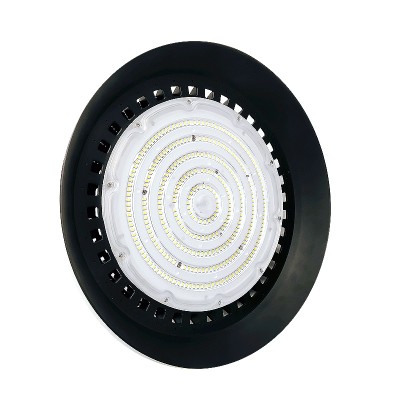

Detailed Images
Constructed of industrial grade
1070 pure aluminum housing
with excellent heat-dissipation
SMD 2835-LEDs, Meanwell LED driver and excellent surge protection, the high bay lighting fixtures ensure high performance for more than 50,000-hour of continuous use
It’s operation temperature is from -40 ℉ to 158 ℉. So it widely used in wet location rated for indoor and outdoor
Application:
Warehouse, workshop, factory, Stadium court lightFunction: Commercial and Industrial Lighting
Style: Round shape
| Product Name | LED high bay light |
| Power | 50W±5% |
| LUMINOUS EFFICIENCY | ≥170LM/W |
| Input Voltage | 90-295V/AC |
| Frequency | 50～60Hz |
| Power Factor | ≥0.95 |
| CCT | 3000K~7000K customized |
| LED light sourse | SMD 2835R 120pcs |
| Driver | Meanwell HBG-60-1400 |
| Product size: | 230*122mm |
| Package size | 260*260*155mm |
| Product weight | 1.3kg |
| Material | 1070 pure Aluminum |
| Cooling structure | Fin 1070 |
| Beam angle | 60°/90° optional |
| WORKING TEMPERATURE | 35℃～55℃ |
| Dimming | 0-10V/PWN/or DALI |
| Energy Efficiency Rate | A++ |
| Lifespan | ≥50000H |
| Power | Product size (mm) | Weight (kg) | Package size (mm) | Package Qty / Ctn |
| 60W | Ф230*122 | 1.3 | 260*260*160 | 1 |
| 100W | Ф270*184 | 2.0 | 300*300*180 | 1 |
| 150W | Ф330*194 | 2.75 | 370*70*190 | 1 |
| 200W | Φ380*203 | 3.3 | 420*420*220 | 1 |
