LED Step Light STL720
- Model
- STL720
- Power
- Customized
- Voltage
- Customized
- CCT
- 2700-6500K
- CRI
- Ra≥80/Ra≥90
- Source
- LED
- Material
- Aluminum
- Finish
- White/Black
- OEM
- Available
- Payment-Tems
- T/T
- Trade-Terms
- EXW/FOB/CFR
- Sea-Port
- Shanghai/Ningbo
Lightac Industry Co.,Limited
Hot in store
-
12V 2835 SMD LED Modules with 1.2W MD190
Inquiry -
1.5W High Power 2835 LED Module MD1800
Inquiry -
1.5 Watt IP65 SMD 2835 12V LED Module MD
Inquiry -
High Lumen LED Module for Sign Board LED
Inquiry -
Indoor 3 LEDs Module Signage Lens 1.5w 1
Inquiry -
0.72W 12V DC Waterproof RGBIC LED Module
Inquiry -
3 Years 170° DC 12v 24V 0.96w IP65 SMD2
Inquiry -
Custom 12v Sign 2w Back Lit Channel Lett
Inquiry
Product Details
Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.
IP65 Driveway Park LED Step Light Low Power Stair Lights Mini Recessed 2W Warm White LED Buried Step
Description & Specifications
IP65 Driveway Park LED Step Light Low Power Stair Lights Mini Recessed 2W Warm White LED Buried Step Lights
| Light source | Lens beam angle(°) | Consumption(watt) | Input Voltage(V) | Ik rate |
| SMD5050*3 | / | 1.5 | DC12V/DC24VAC100-240V | 10 |
| 1*3W LED | / | 3.3 | DC12V/DC24VAC100-240V | 10 |
| SMD5050*3 | / | 1.5 | DC12V/DC24VAC100-240V | 10 |
| 1*3W LED | / | 3.3 | DC12V/DC24VAC100-240V | 10 |

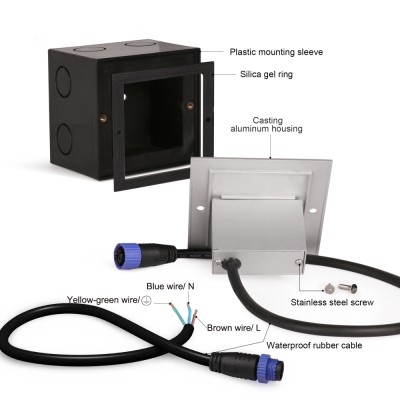

| Material specifications | |
| Housing | Made of 12#die-casting outdoor powder coated aluminum |
| Glass | Tempered glass.T=4mm |
| Lens | Optical lens,effciency≥85% |
| Cable gland | IP67 copper and nickel coated |
| Gasket | Tooling shaped seal |
| LED | SMD LED or Customized LED |
| PCB | Excellent heat conductivity aluminum, coeffcient of heat conductivity≥2.0w/mk |
| Driver | Constant current output |
| Operating temperature | (-20℃~40℃) |
| Power cable | H05RN-F2*0.75mm²L=0.3m(low voltage) H05RN-F3*0.75mm²L=0.3m(high voltage) |
1. Brand LED high lumen, energy saving, soft light,
2. 12#die-casting outdoor powder coated aluminum

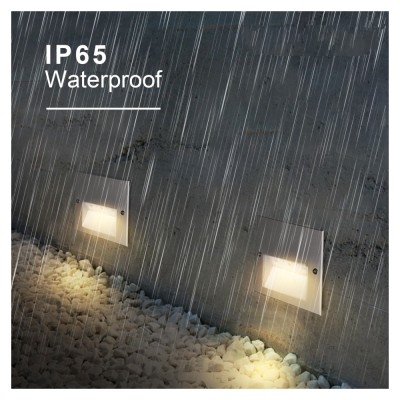

3. IP65 Waterproof,
4. stainless steel screw
5. Square, Round, linear shape meet various engineering needs,
6. Outdoor and Indoor Step/Stair/corridor both can be used.
