DC5-24V Dimmer/CCT/RGB/RGBW/RGBWC Wall Mounted Controller RF Touch Panel LED Controller for LED Strips

Product descriptions

Wall Mounted Controller RF Touch Panel LED Controller for LED Strips  DC12-24V Dimmer/CCT/RGB/RGBW/RGBWC

1、Product features:
Wireless RF iron shell 86 full touch controller is a LED controller with advanced point-control touch technology. There are five types of products in this series to choose from, which are used to control monochrome, two-line/three-line color temperature, RGB, RGBW, There are five types of RGBWC light bars; dynamic lighting effects such as gradient, jump, gradual light and dark, flicker, and flash can be selected according to different needs of customers, as well as a variety of static colors to choose from. It can be widely used in home decoration, shopping mall advertising, bar and other application places. It has the advantages of flexible wiring, convenient wiring and simple use.

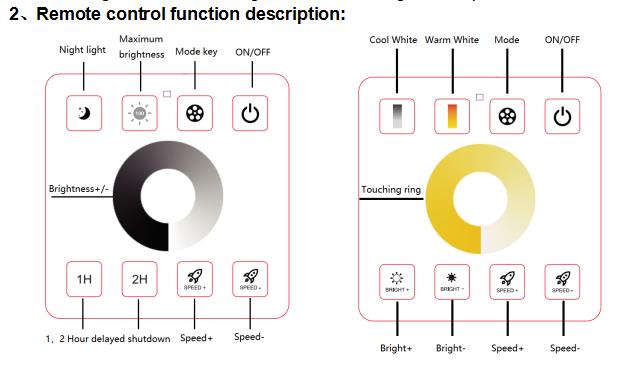

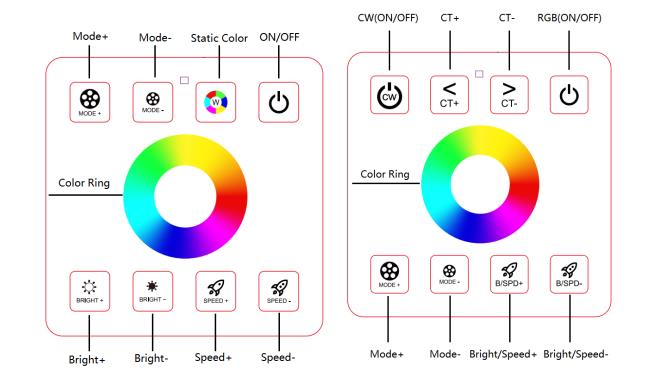

2、Remote control function description:





     3、mode list

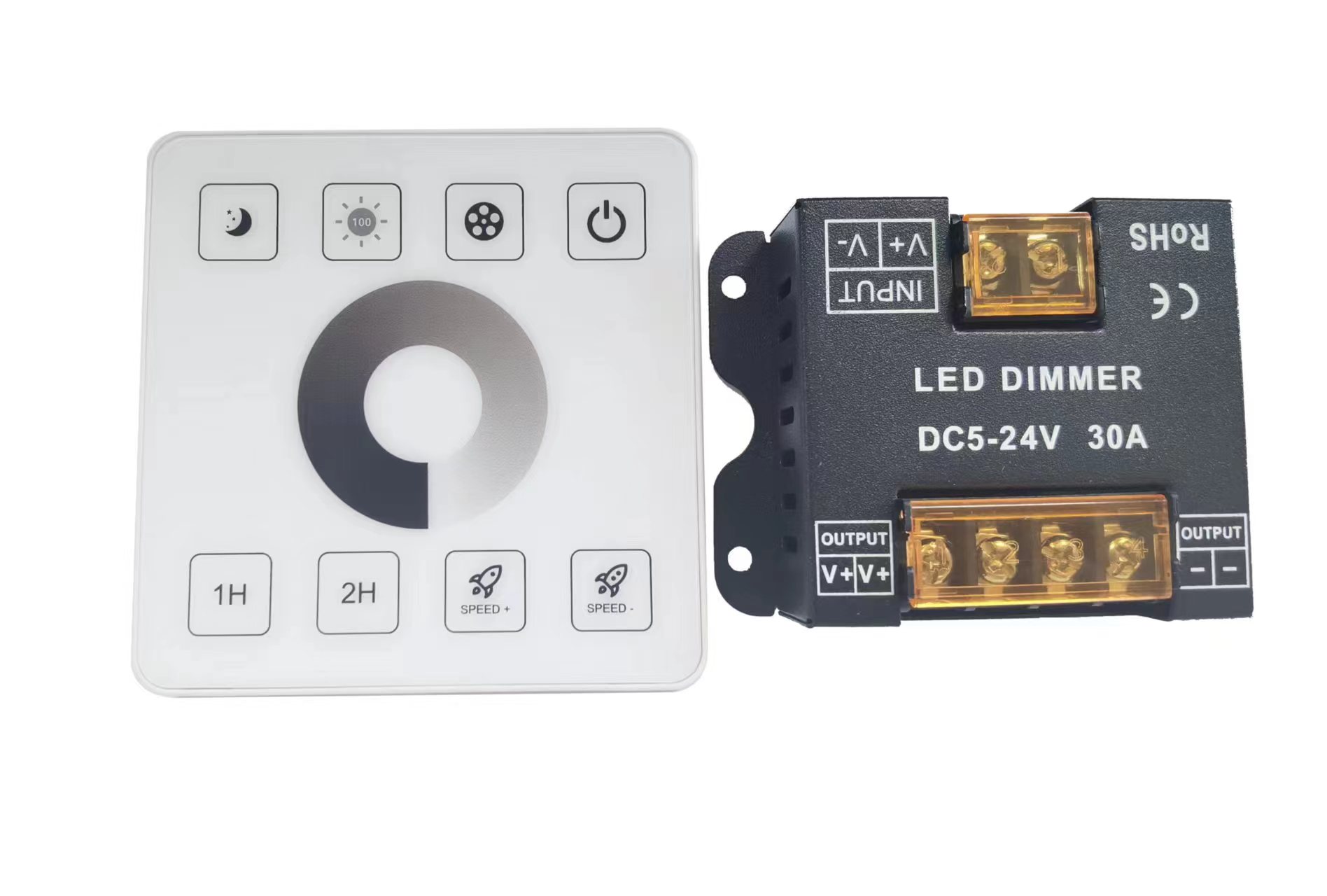

     mode 1: DimmerFunction: Gradient (breathing mode), Jump, Flash1. Working voltage: DC 5-24V 2. Working temperature: -20-60° 3. Output current/power: 15A*2CH, 5V<150W, 12V<360W, 24V<720W 4. Weight: 170 grams 5. Product size: L85*W62*H22mm 6. Packing size: L110*W94*H42mm 7. Input: positive / negative pole of input power supply 8. OUTPUT: output light with positive/negative pole. Brightness addition and subtraction: Step-less dimming. Speed plus and minus: 10 levels. Code matching : keep press the Night light button within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3 times. Code clearing : keep press the Maximum brightness key within 5 seconds after the controller is powered on, and the light bar flashes quickly for 3 times.

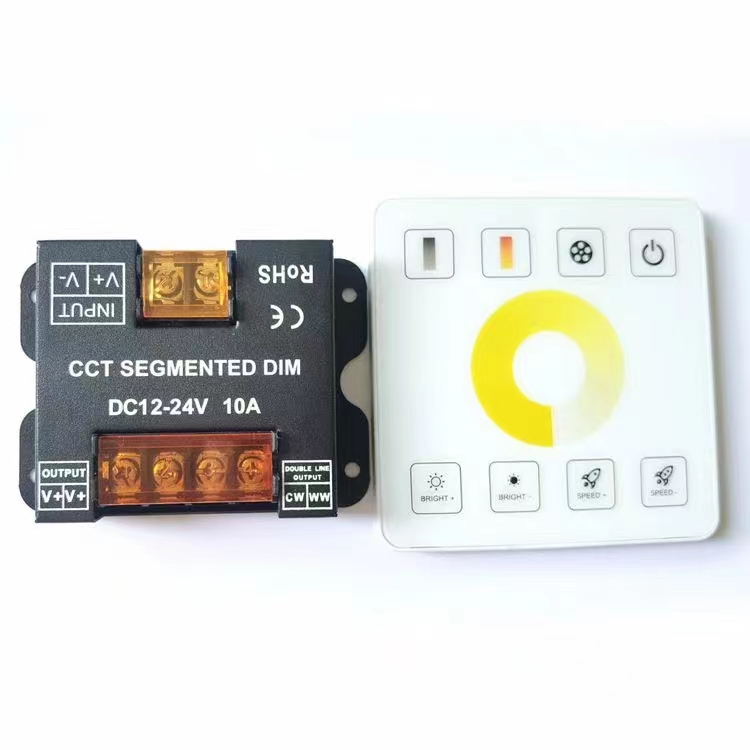

     mode 2: CCT Function：White light / warm light / neutral light jump
Sunset (cannot adjust speed and brightness)
Sunrise (cannot adjust speed and brightness)
Warm white gradient
Neutral white gradient
Cool white gradient
White / warm light transition
Warm white jump
Neutral white jump
Cool white jump
White light / warm light / neutral light jump

Product parameters：

1. Working voltage: DC 12-24V
   2. Working temperature: -20-60°
   3. Output current/power: 5A*2CH, , 12V<120W, 24V<240W
   4. Weight: 170 grams
   5. Product size: L85*W62*H22mm
   6. Packing size: L110*W94*H42mm
   7, INPUT: input power positive / negative
   8. OUTPUT: output light with positive pole/CW/WW
   9. Pay special attention to DOUBLE LINE OUTPUT: the two-wire light strip can only be connected to these two interfaces
   Code matching : long press the Cool white button within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3 times.
   Code clearing : press and hold the Warm white key within 5 seconds after the controller is powered on, and the light bar flashes quickly for 3 times.

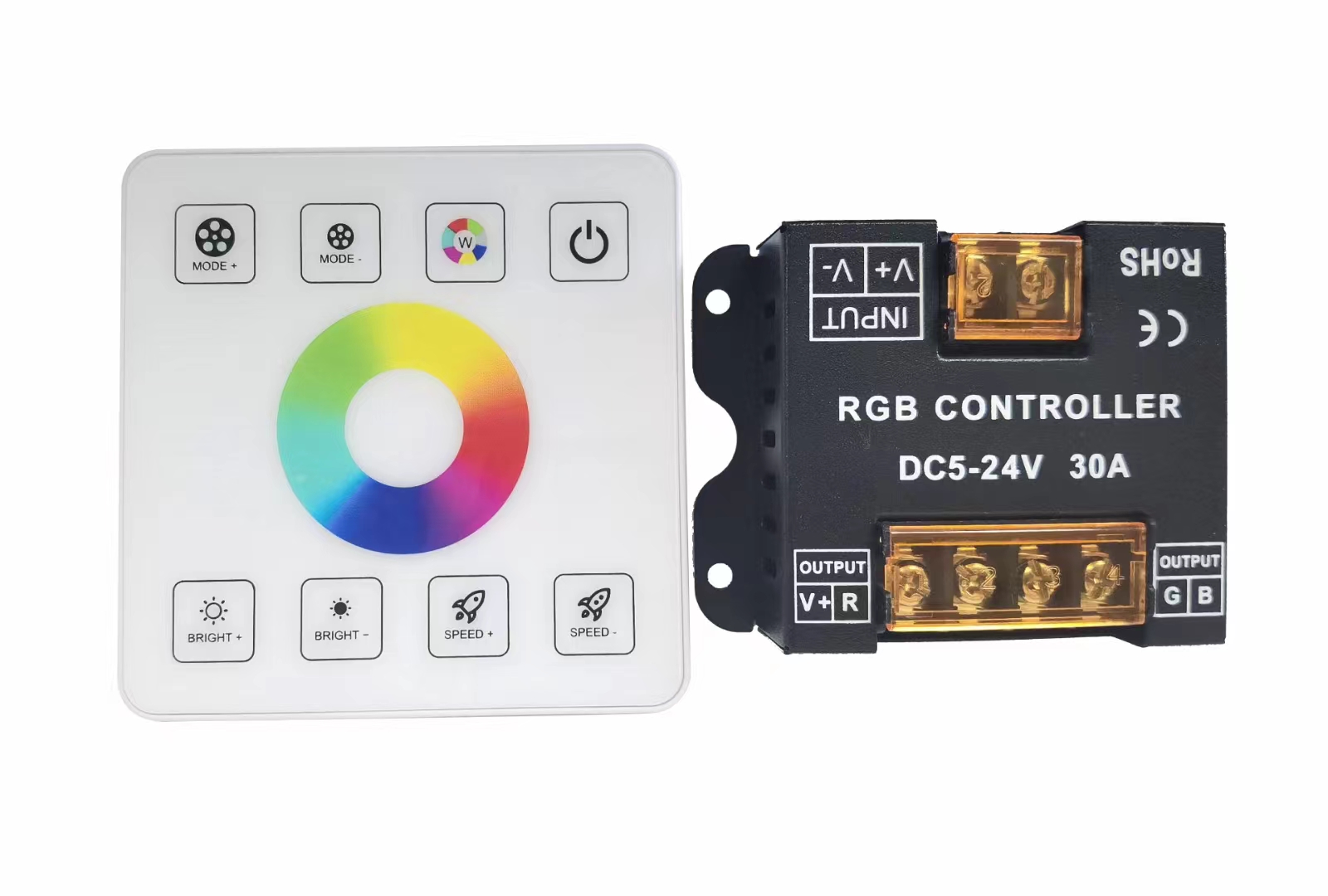

        mode 3: RGB Function：Red gradient, Red jump, Red flash
   Green gradient, Green jump, Green flash
   Blue gradient, Blue jump, Blue flash
   Yellow gradient, Yellow jump, Yellow flash
   Purple gradient, Purple jump, Purple flash
   Cyan gradient, Cyan jump, Cyan flash
   White(RGB mixed) gradient, White(RGB mixed) jump, White(RGB mixed) flash
   3 colors gradient, 3 colors jump, 3 colors flash
   7 colors gradient, 7 colors jump, 7 colors flash

   Product parameters：

   1. Working voltage: DC 12-24V
   2. Working temperature: -20-60°
   3. Output current/power: 5A*2CH, , 12V<120W, 24V<240W
   4. Weight: 170 grams
   5. Product size: L85*W62*H22mm
   6. Packing size: L110*W94*H42mm
   7, INPUT: input power positive / negative
   8. OUTPUT: output light with positive pole/CW/WW
   9. Pay special attention to DOUBLE LINE OUTPUT: the two-wire light strip can only be connected to these two interfaces
   Code matching : long press the Cool white button within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3 times.
   Code clearing : press and hold the Warm white key within 5 seconds after the controller is powered on, and the light bar flashes quickly for 3 times.


        mode 4: RGBW Function：Red gradient, Red jump, Red flash
   Green gradient, Green jump, Green flash
   Blue gradient, Blue jump, Blue flash
   Yellow gradient, Yellow jump, Yellow flash
   Purple gradient, Purple jump, Purple flash
   Cyan gradient, Cyan jump, Cyan flash
   White gradient（RGB Mixed）,  White jump（RGB Mixed）, White flash（RGB Mixed）
   White gradient, White jump, White flash
   3 colors gradient 3 colors jump 3 colors flash
   7 colors gradient 7 colors jump 7 colors flash

   Product parameters：

   1. Working voltage: DC 5-24V
   2. Working temperature: -20-60°
   3. Output current/power: 10A*4CH, 5V<200W, 12V<480W, 24V<960W
   4. Weight: 180 grams
   5. Product size: L103*W62*H22mm
   6. Packing size: L110*W94*H42mm
   7, INPUT: input power positive / negative
   8. OUTPUT: output light with positive pole/R/G/B/W
   Note: Brightness and speed can be adjusted in each mode
   Static Colors: Red, Green, Blue, Yellow, Purple, Cyan, Mixed White, Single White, Mixed White + Single White, White + Red, White + Green, White + Blue, White + Yellow, White + Purple, White +Cyan 15 colors are optional (white light is white alone) (cycle switching)
   BRIGHT brightness plus or minus: 10 levels (can be fired in burst)
   SPEED speed addition and subtraction: 10 levels (can be fired in bursts)
   Code matching : keep press MODE+ button within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3 times.
   Code clearing : keep press  MODE- button within 5 seconds after the controller is powered on, and the light bar flashes quickly for 3 times.

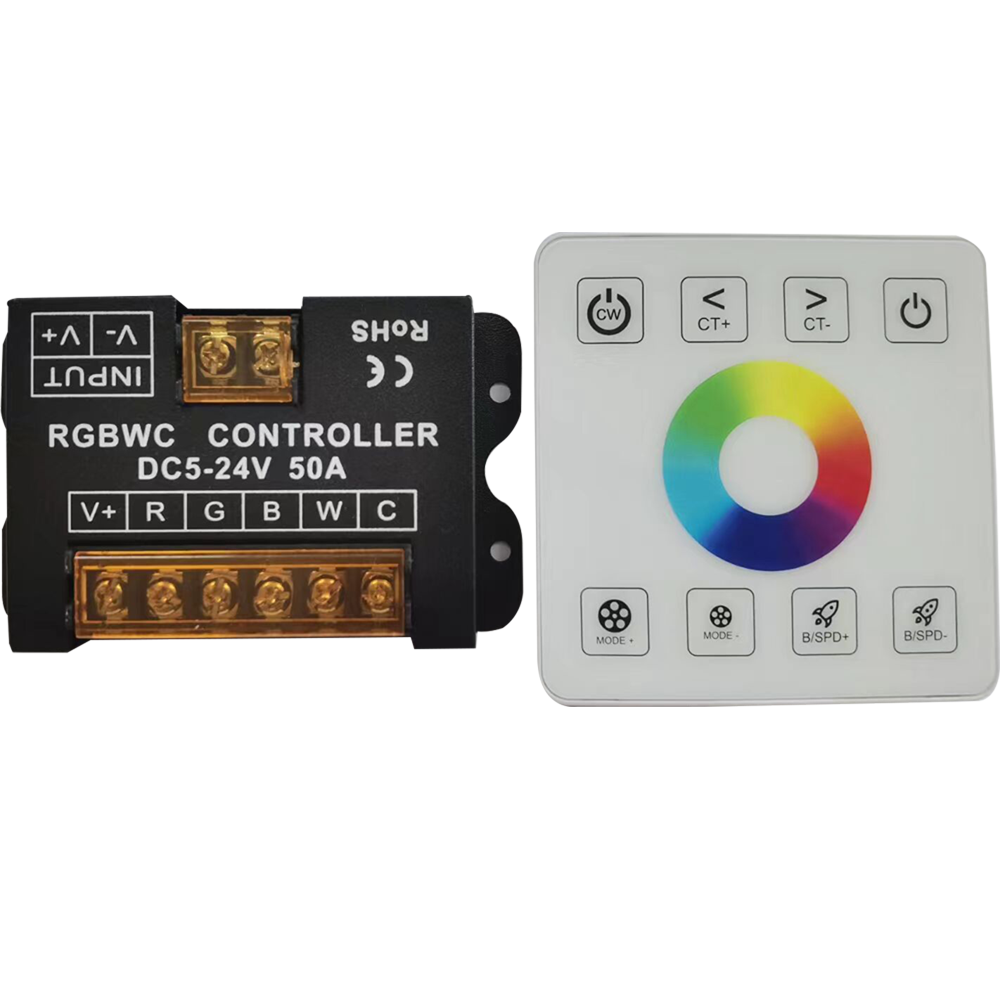

        mode 5: RGBWCFunction：Red gradient, Red jump, Red flash
   Green gradient, Green jump, Green flash
   Blue gradient, Blue jump, Blue flash
   Yellow gradient, Yellow jump, Yellow flash
   Purple gradient, Purple jump, Purple flash
   Cyan gradient, Cyan jump,  Cyan flash
   White Gradient(RGB Mixed), White Jump(RGB Mixed), White flash(RGB Mixed)
   Warm white gradient, Warm white jump, Warm Explosive flash
   Cool white gradient, Cold white jump, Cold Explosive flash
   White/warm light transition,  White/warm jump,  White/warm flash
   Warm-Cold gradient,  Warm-Cold jump, Warm-Cold flash
   3 colors gradient, 3 colors jump, 3 colors flash
   7 colors gradient,  7 colors jump,  7 colors flash

   Product parameters：

   1. Working voltage: DC 5-24V
   2. Working temperature: -20-60°
   3. Output current/power: 10A*5CH, 5V<250W, 12V<600W, 24V<1200W
   4. Weight: 180 grams
   5. Product size: L103*W62*H22mm
   6. Packing size: L110*W94*H42mm
   7. INPUT: input power positive / negative
   8.OUTPUT: output light with positive pole/R/G/B/W/C
   Note: Brightness and speed can be adjusted in each mode.
   Color temperature +/-: 31 color temperature levels plus or minus
   Brightness/speed addition and subtraction: dynamic speed adjustment, static brightness adjustment. 10 levels (can be fired in bursts)
   Code matching : keep press MODE+ button within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3 times.
   Code clearing : keep press  MODE- button within 5 seconds after the controller is powered on, and the light bar flashes quickly for 3 times.

   4、Precautions:1. Please connect according to the input power supply of the controller. You need the power adapter to be used together. Do not directly input high voltage or other voltages. Please pay attention to safety when connecting.
   2. Please connect the power supply, controller and lamps in the power-off state, and then turn on the power after connection. Please do not reverse the positive and negative poles of the input and output.
   3. Please do not use it with overload, check the maximum output current of the device, otherwise it will cause damage to the device or affect the service life; please pull out the edge cover under the remote control before using the remote control.
   4. Please do not use it in a high dust and high temperature environment. Turn off the power if not in use for a long time.
   5. Non-professional engineers should not disassemble or disassemble replacement parts by themselves to avoid equipment damage.
