Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.
30W
230*230*98.5 mm
50W
230*230*98.5 mm
Features:

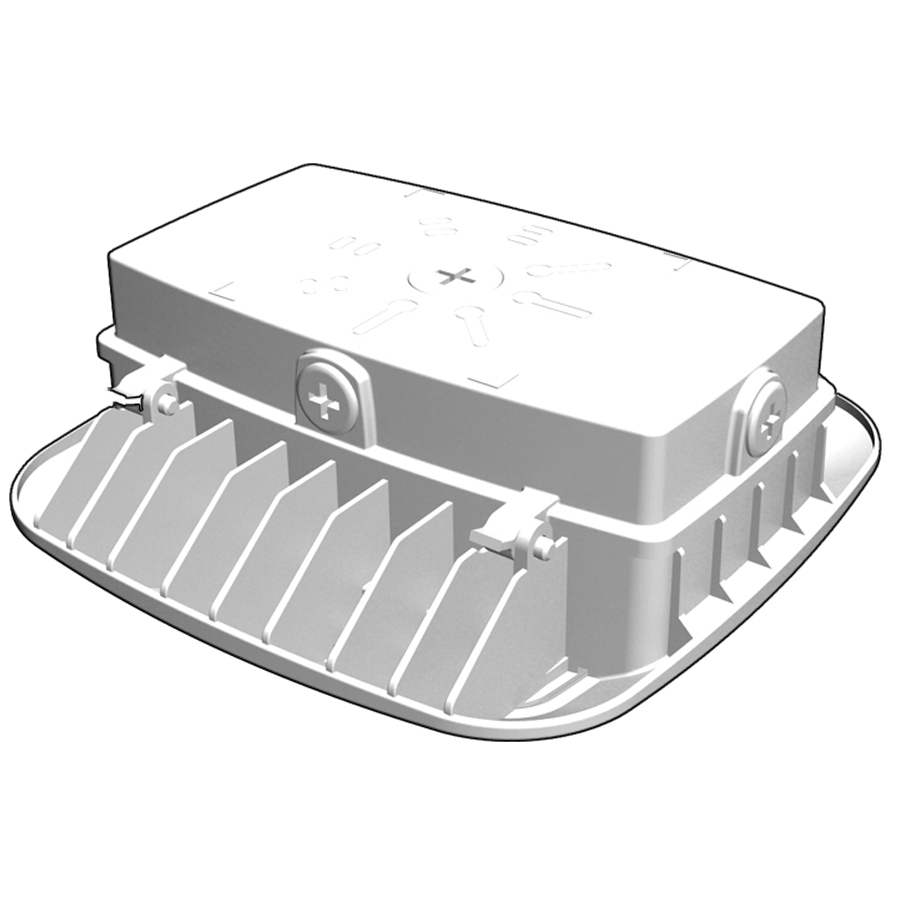

1. High performance, up to 130lm/W;2. Super wide 160DEG beam angle, High transmittance optic PC lens;3. Hanging type internal wiring, anti-slip design back cover, easy installa-tion and high safety;4. IP66 rated, suitable for wet locations;5. 3-in-1 dimming, 1-10V, PWM, Resister;6. Occupancy sensor available;7. Operating temperature rating of –40°F to 122 °F (-40°C to 50°C )8. White/Bronze housing powder coat finish, 5 years warranty

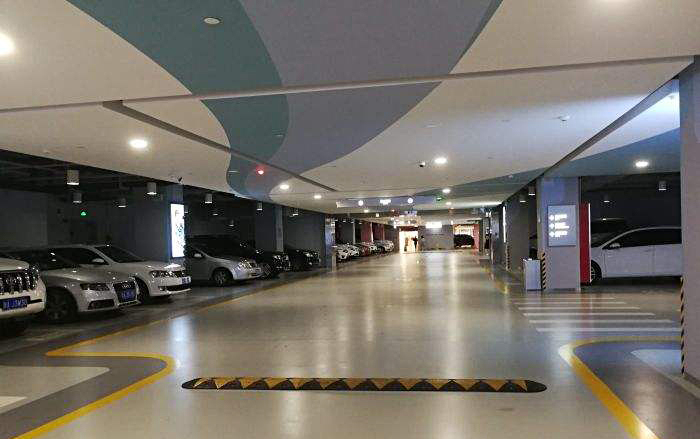

Application：Parking garage, warehouse, parking buildings, stair way, interior canopies.

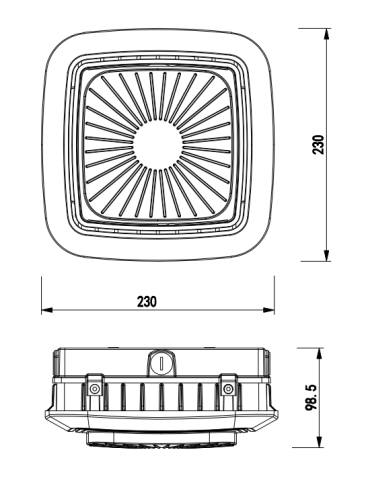

Dimension
230*230*98.5 mm
Beam angle
160 degree

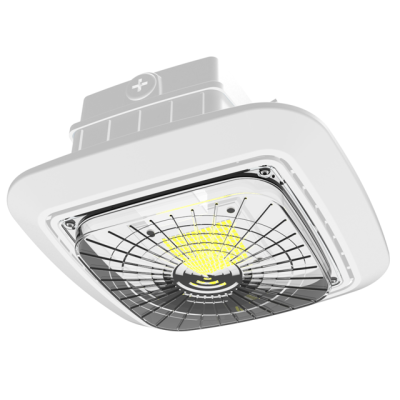

| Product Name | LED Parking Garage Light |
| Material | Aluminum alloy + PC cover |
| Power | 30W & 50W |
| Voltage | 100-277VAC |
| Beam angle | 160 degree |
| Protection lever | IP66 & IK08 |
| Power | Input Voltage | Storage temperature | Installation | G.W. |

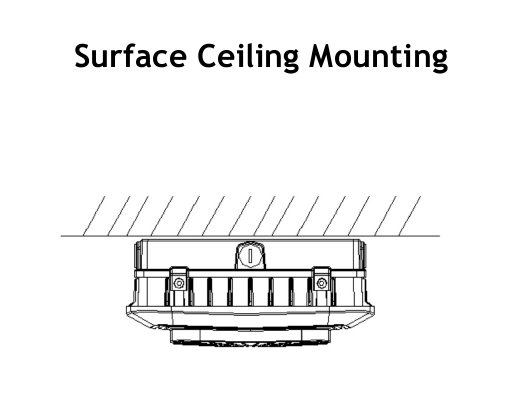

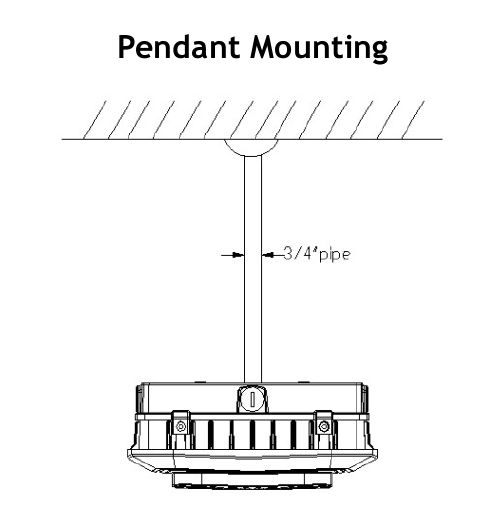

| 30W | AC100V ~ 277V/305V AC180~ 528V | –40 ~ ﹢65°C | Surface Ceiling Mounting& Pendant Mounting | 2.4kg/5.3lbs |
| 50W | AC100V ~ 277V/305V AC180~ 528V | –40 ~ ﹢65°C | Surface Ceiling Mounting& Pendant Mounting | 2.5kg/5.5lbs |
