3/4" Mini Round LED Courtesy Light RV Caravan Marine Boat Interior Ceiling Lamp
Product descriptions
1, Features
• Clear PC lens, engineered lens optics uniformly distributes the light from LED at a wide viewing angle
• 304 stainless steel ring, available in highly polished or black finishes
• Compact size, easy for installation by drilling a 3/4” (19mm) cut-out hole and pushing in, ideal as
a courtesy anywhere and a utility for live wells, lockers and compartments
• Circuit board completely sealed in epoxy to resist water, corrosion and vibration, IP68 rated
• (1) SMD2835 LED, low current draw
• Rated for 12V, tested to 13.8V
• Also available in 24V version by special order only
2, Technical Information
Lighting Color | Input Voltage | No. of LEDs | LED Type | CCT | Luminous Flux | Current Draw |
Neutral White | 12 V | 1 | SMD | ~4,200K | 10 lm | 0.02 A |
Blue | 12 V | 1 | SMD |
|
| 0.02 A |
Green | 12 V | 1 | SMD |
|
| 0.02 A |
Red | 12 V | 1 | SMD |
|
| 0.02 A |

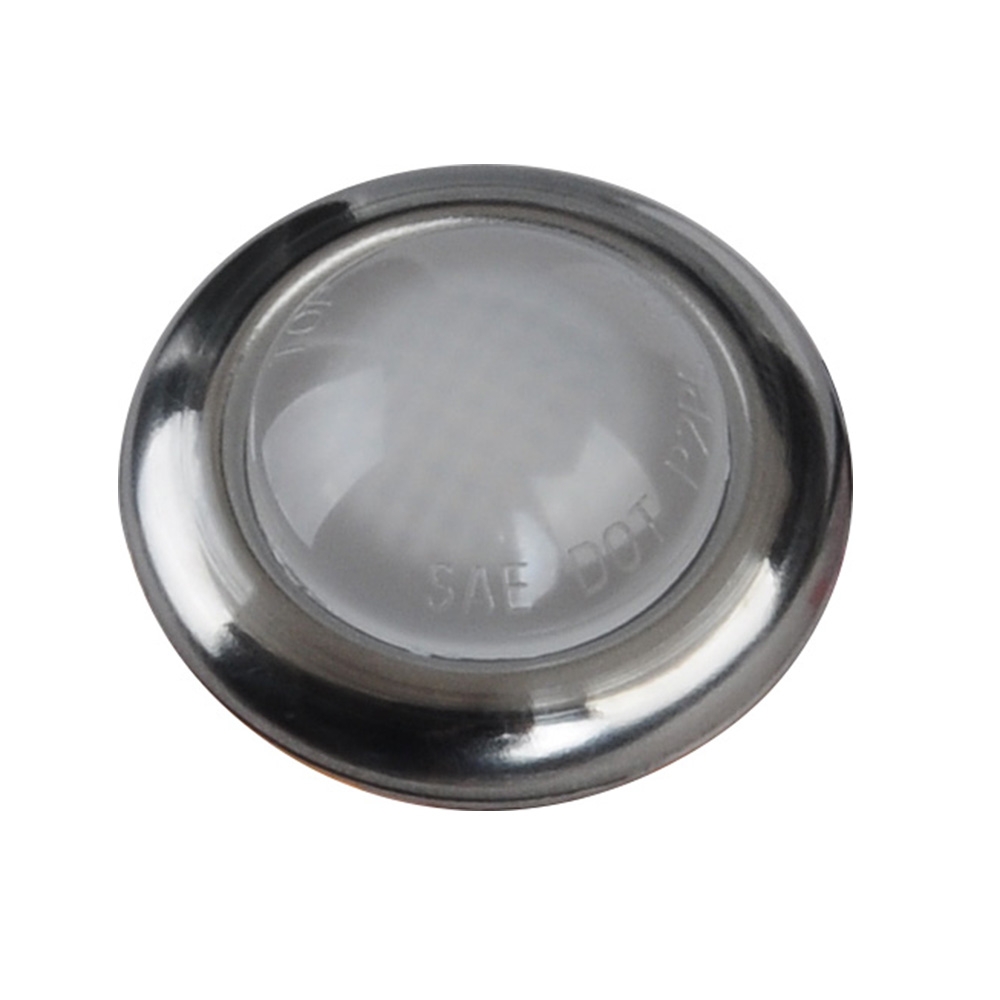

3, Product Pictures

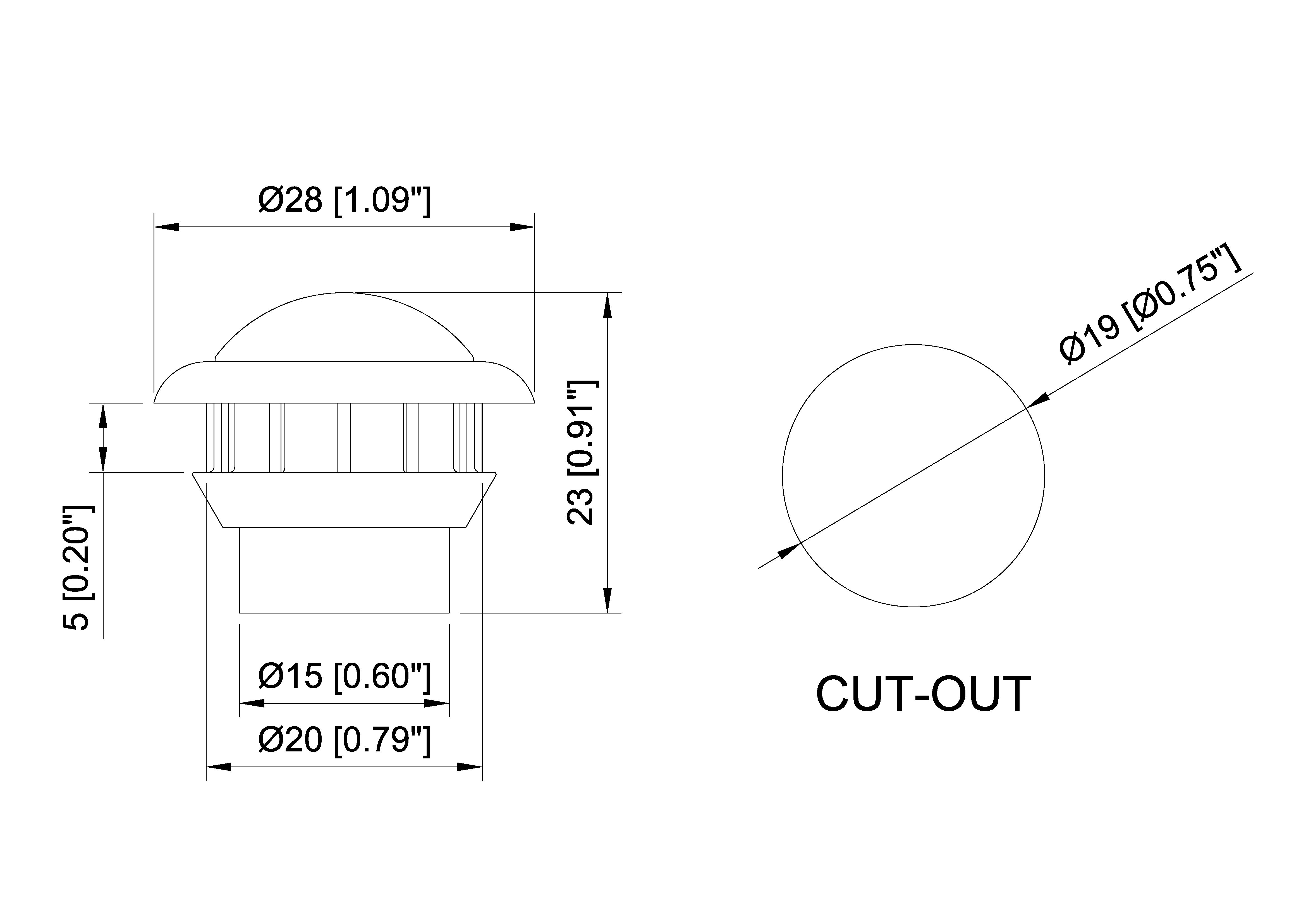

4, Dimensions
