DALI LED Linear Light Tubes IP44 Rated Aluminum Alloy Durable White Emitting Light for Office Home Commercial Lighting
Product descriptions
| Measurement: | |
| Product name | LED Linear Light |
| Housing material | 6063-T5 |
| Surface treatment | Powder coated or Brushed aluminum |
| CCT | 3000K,4000K,6000K |
| LEDs | 2835SMD (SANAN chip) |
| LEDs Life Span | 50000H |
| Input Voltage | 100-277V/200-240V 50/60HZ |
| Power supplier | Flicker-free |
| Luminous Efficacy(lm/w) | 100lm/W |
| Color Render (CRI) | RA≥80 or RA≥90 |
| Power factory(PF) | ≥0.9 |

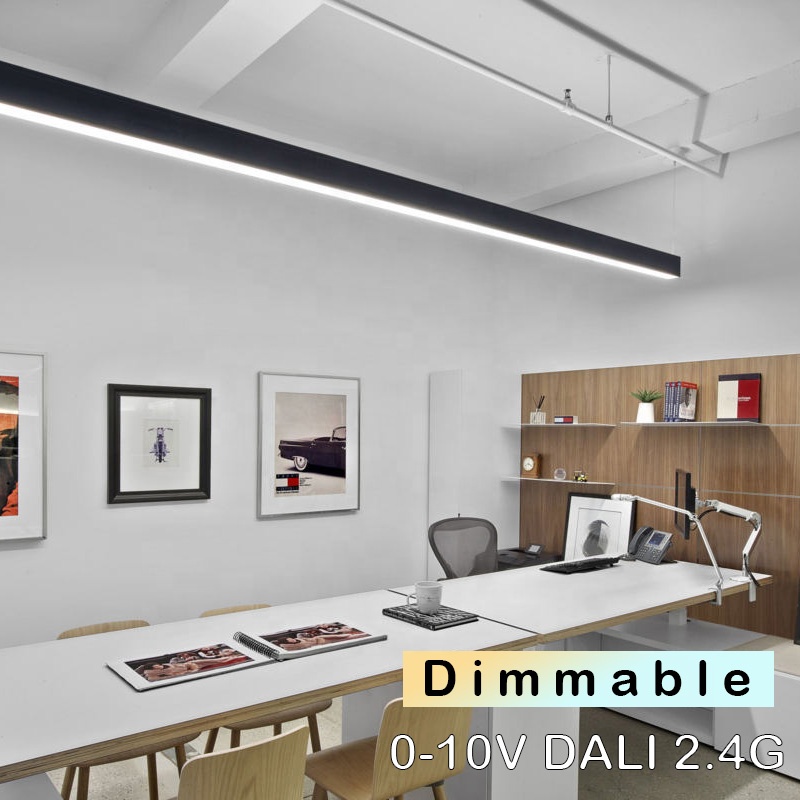

| Optional features : | 0-10V dimming, DALI dimming,CCT dimming |
| IP Rated | IP20 |

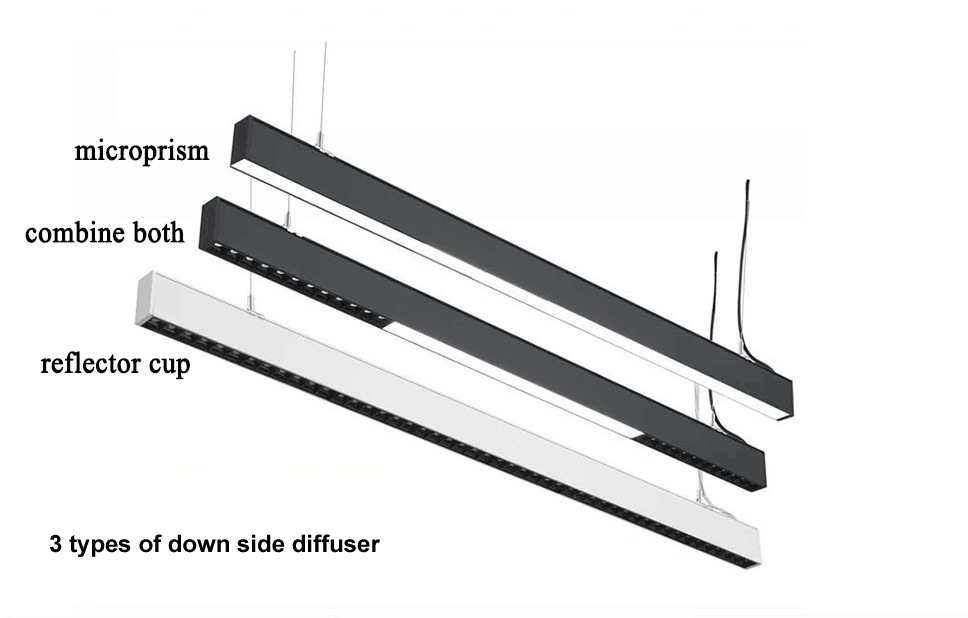

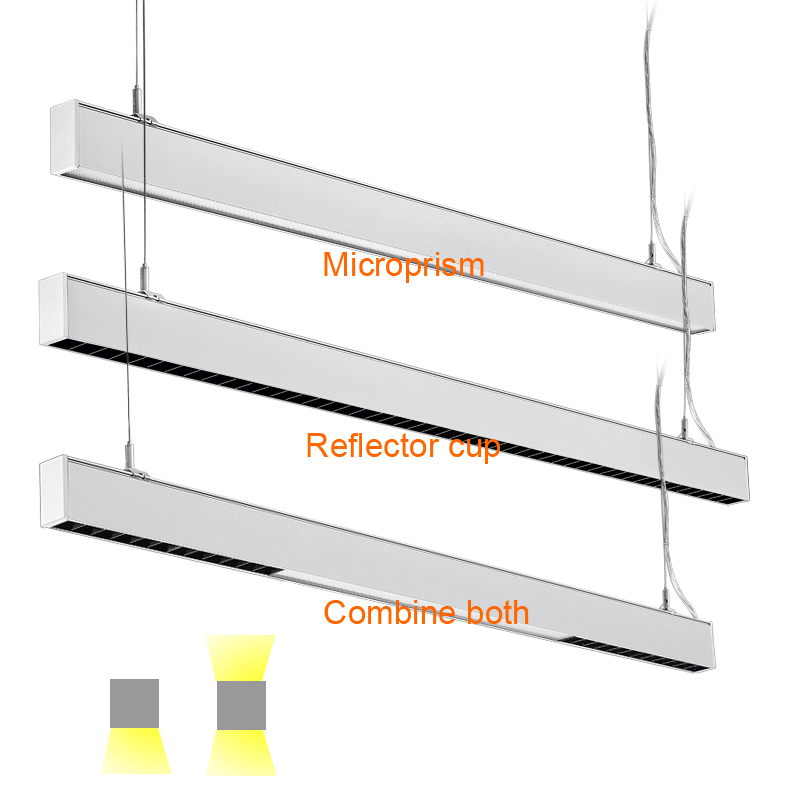

| Beam Angle | 120° (PC)34°(Reflector) |
| Working Temp(℃) | Surrounding Ambiance Temperature -25°~40°Degree Celsius |
| Body Material | aluminum,PC,ABS |
| Color Option(shell) | Silver,White,Black |

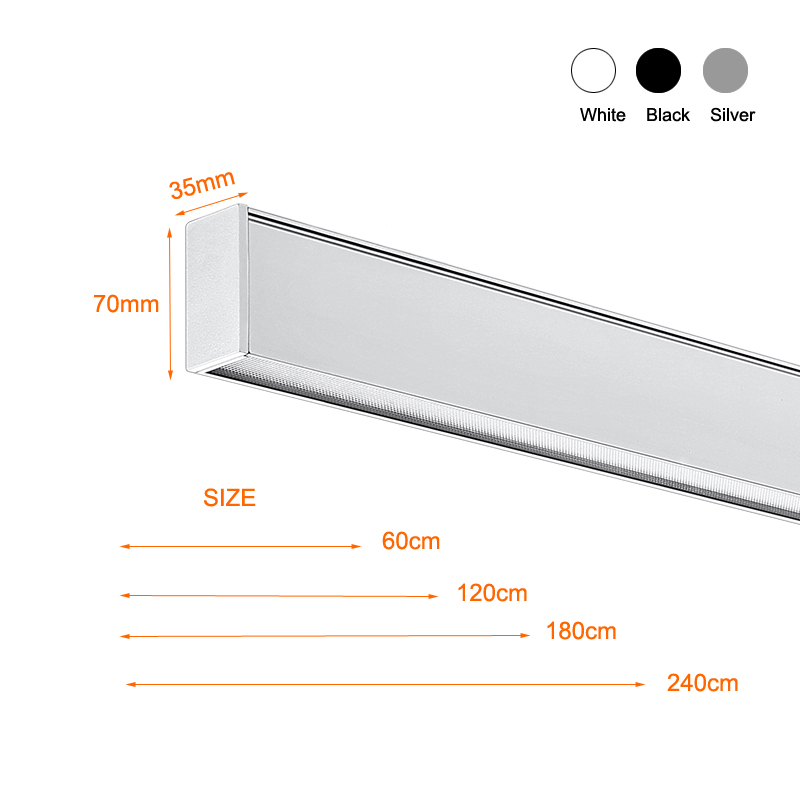

| Size | Watts | Voltage | CRI |
| L605*W35*H70 | 20W | AC200-240V/100-277v | Ra>80/90 |
| L1200*W35*H70 | 40W | AC200-240V/100-277v | Ra>80/90 |
| L1795*W35*H70 | 60W | AC200-240V/100-277v | Ra>80/90 |
| L2390*W35*H70 | 80W | AC200-240V/100-277v | Ra>80/90 |
Feature
1.Connect with seamless, form with line shape.

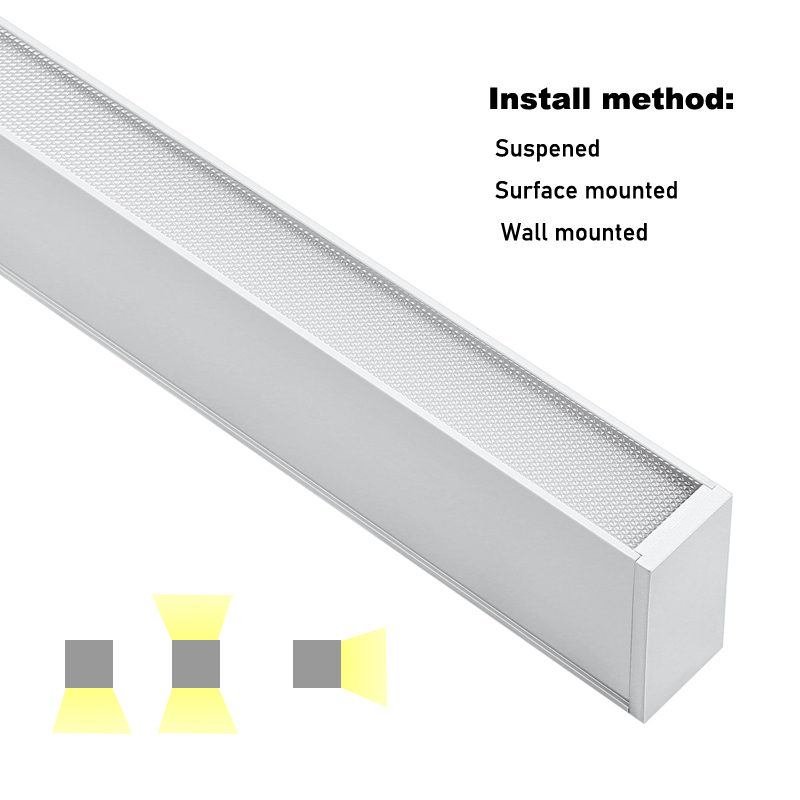

2.Product can be used hanging ,surface mounted, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can't run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.

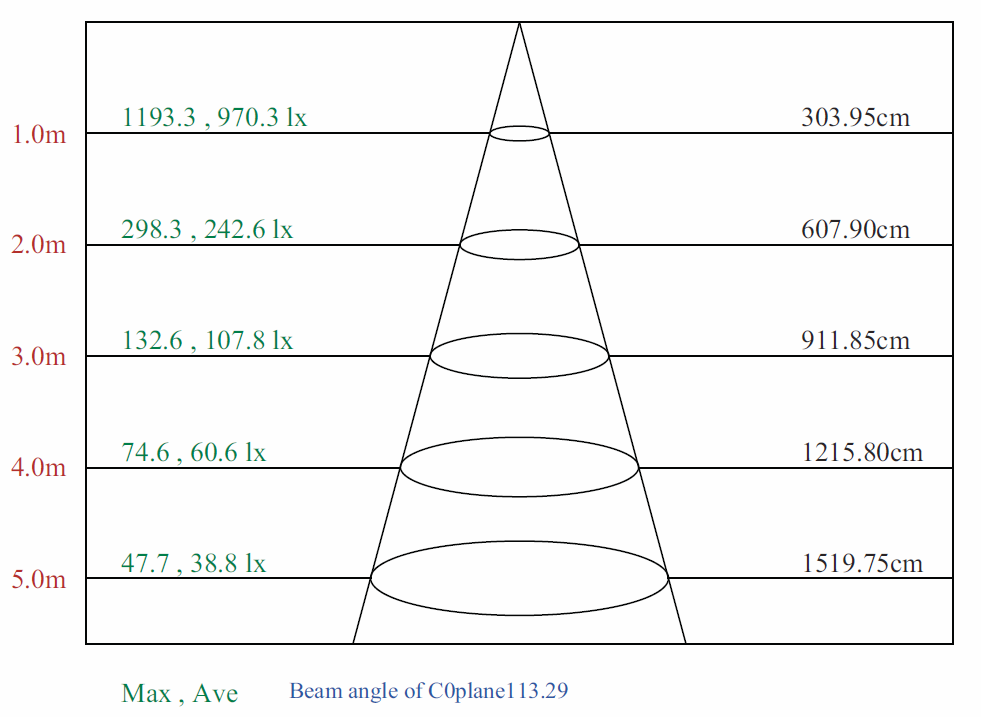

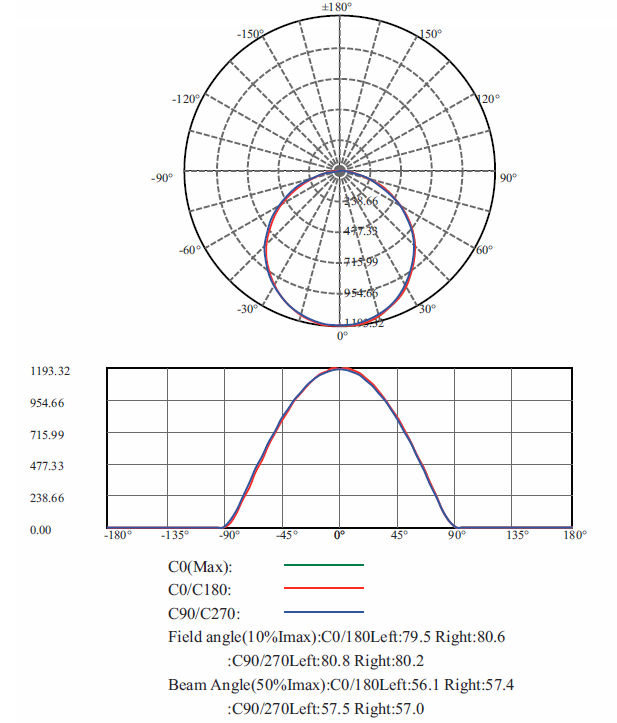

Graphs/profile

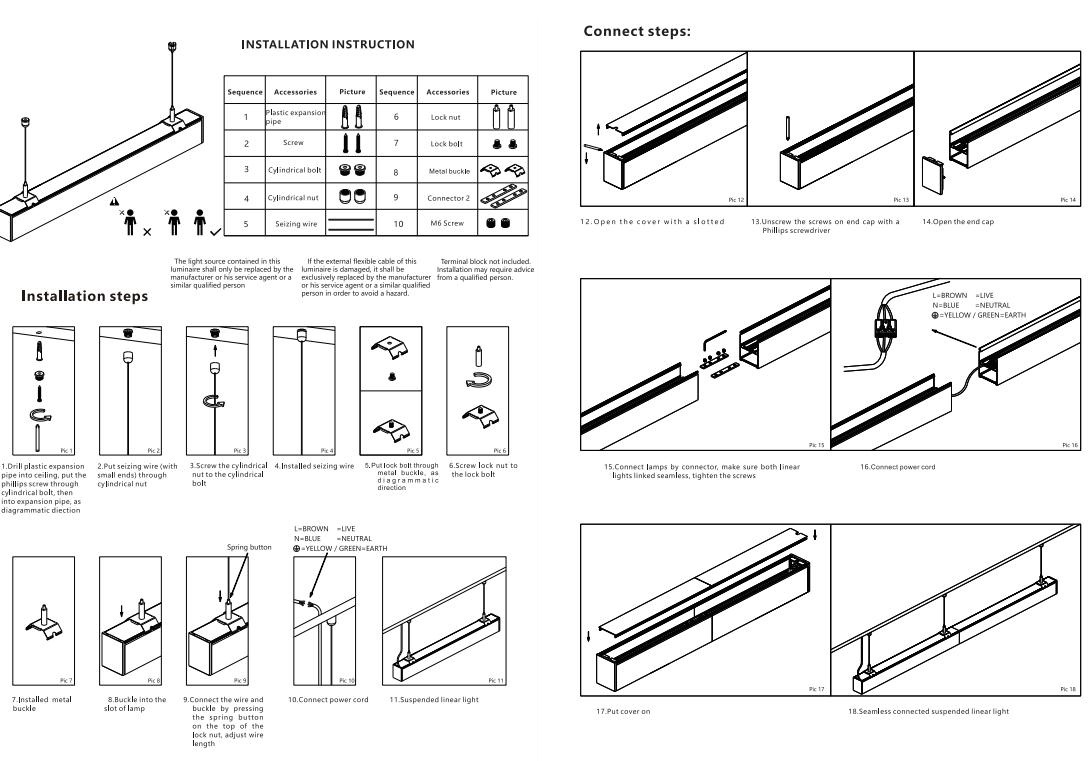

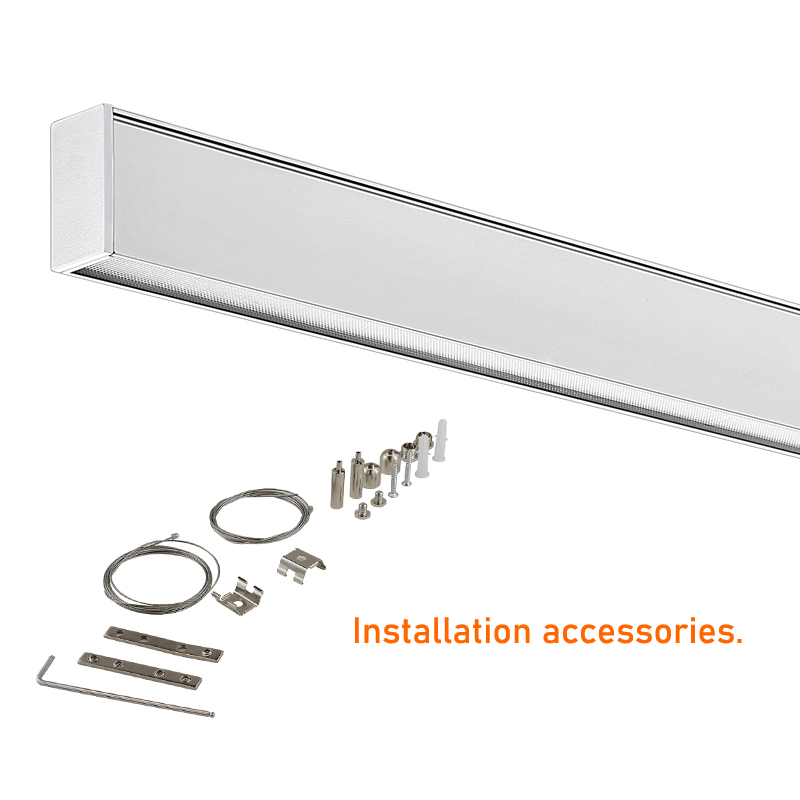

Installation methods

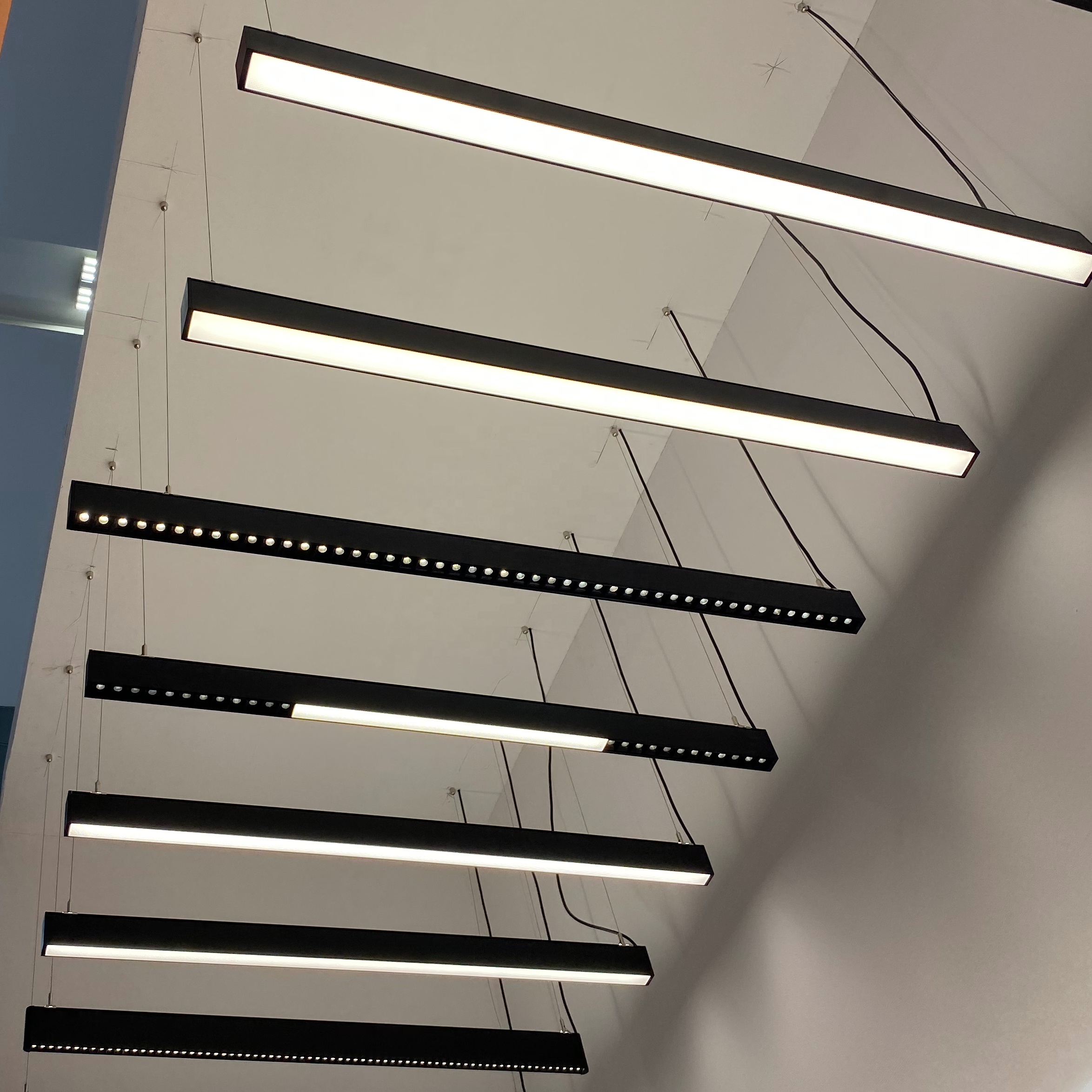

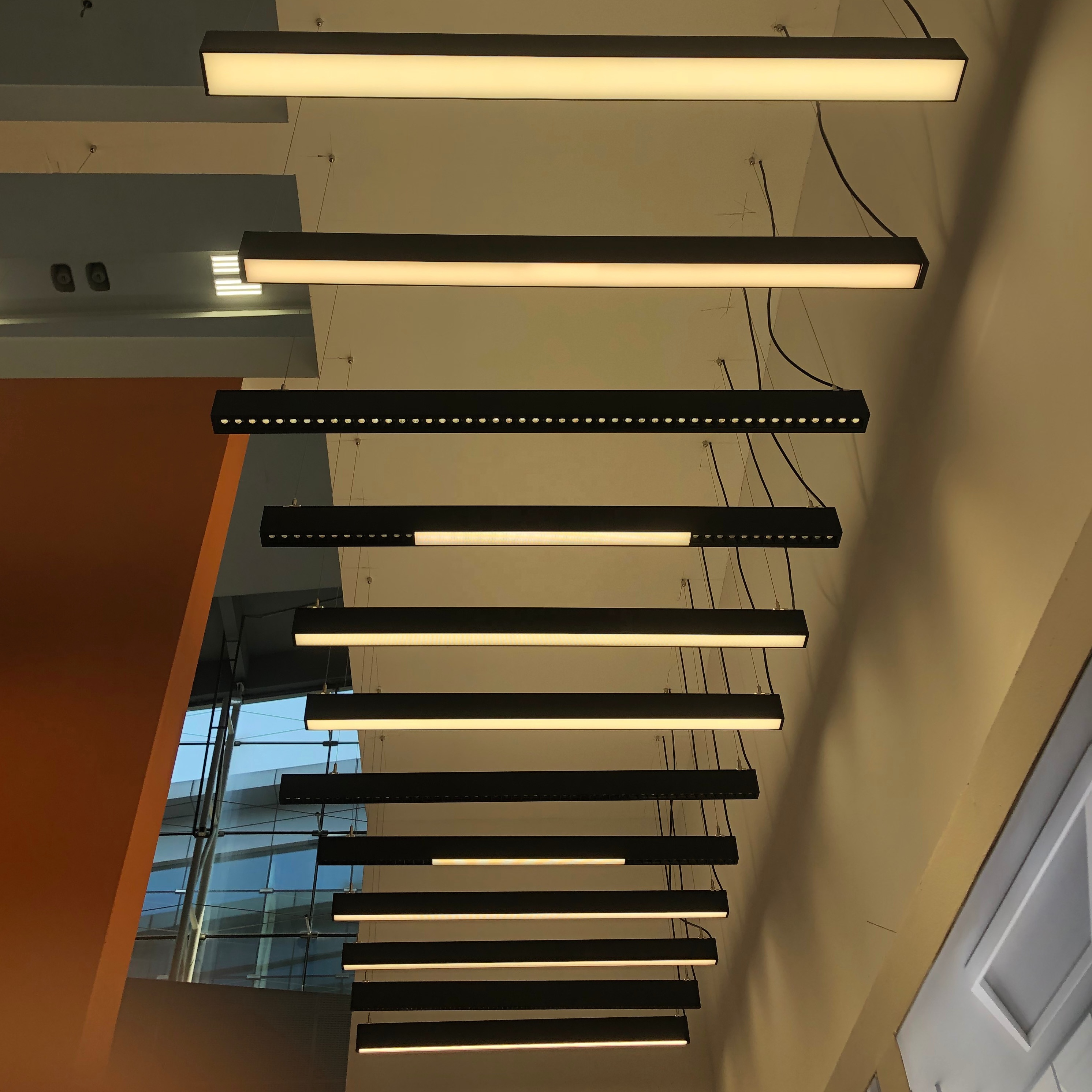

Suspened wire
Ceiling mounted

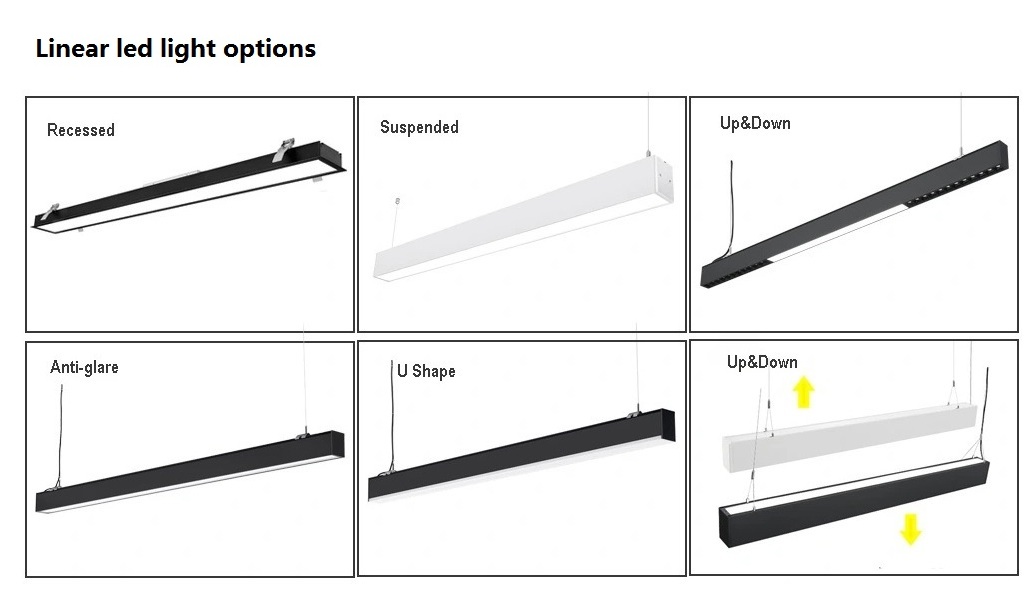

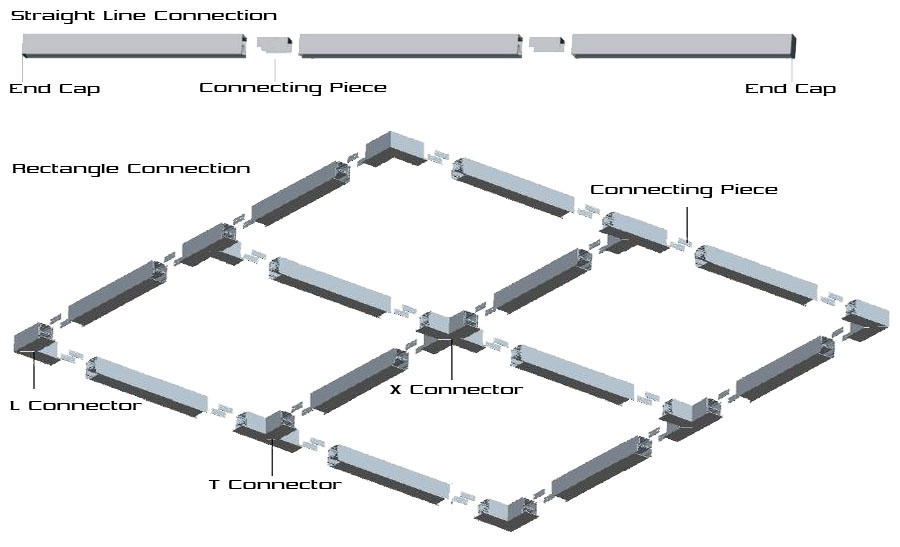

Different angle corner option to make different shapes

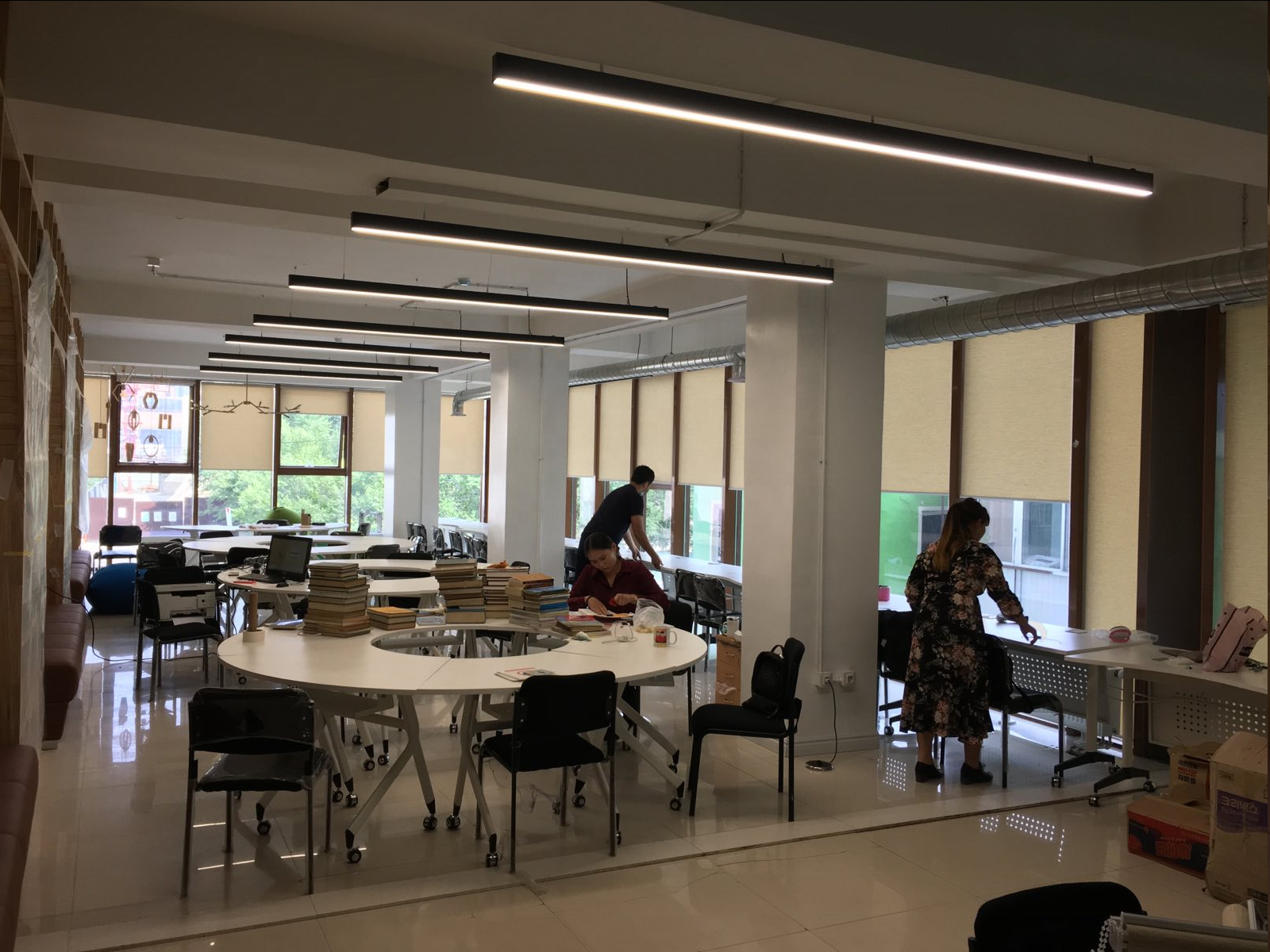

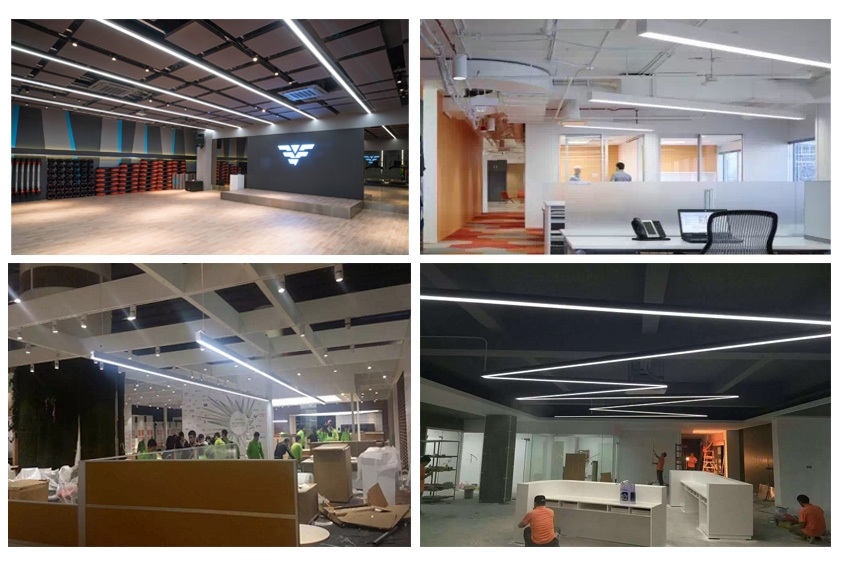

Applications

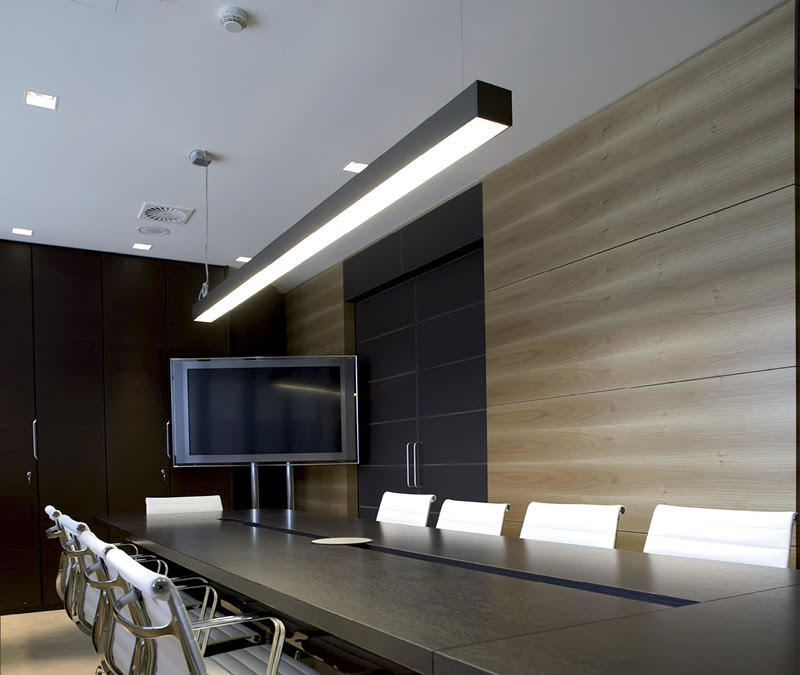

Use in shopping mall, office, school, leisure site, garage, factory, school, supermarket, hospital, store
etc.
