3.2"X1" Oblong LED Courtesy Light RV Caravan Marine Boat Interior Lamp
Product descriptions
1, Features
• Ideal as a courtesy light, accent light or auxiliary light anywhere needed.
• Surface mount; with rubber gasket, fasteners & black screw caps included; easy installation
by cutting out a 1/2” (12,5mm) hole, or a rectangular 46x18mm (1.81”x0.71”) cut out for
multi-voltage 10~30V.
• Clear PClens in diffused lens pattern to distribute lighting in a wide beam angle.
• Circuit board completely sealed in epoxy to resist water, corrosion and vibration, IP65 rated.
• 2 of SMD LEDs; lighting colors available in Cool White and Blue.
• Rated for 12V, tested to 13.8V
• Also available in optional versions of multi-voltage 10~30V operating range, or 24V version
by special order.
2, Technical Information
Description
| Lighting Color | Input Voltage | LED Count | Typical CTT | Luminous Flux | Current Draw at 13.8V |
White Light | C. White | 12 V | 2 | 6500 K | 30 lm | 0.05 A |
Blue Light | Blue | 12 V | 2 |
| 6 lm | 0.05 A |
White Light | C. White | 10~30 V | 2 | 6500 K | 30 lm | 0.05 A |
Blue Light | Blue | 10~30 V | 2 |
| 6 lm | 0.05 A |

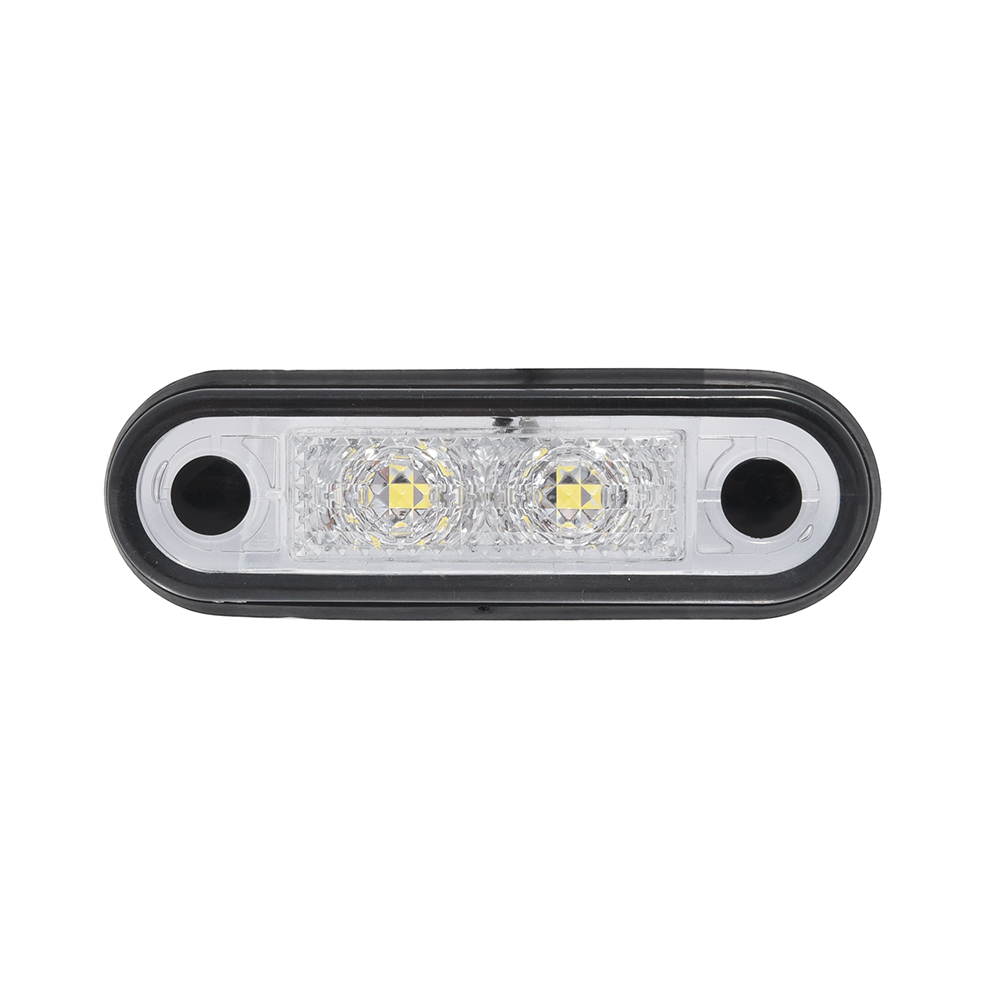

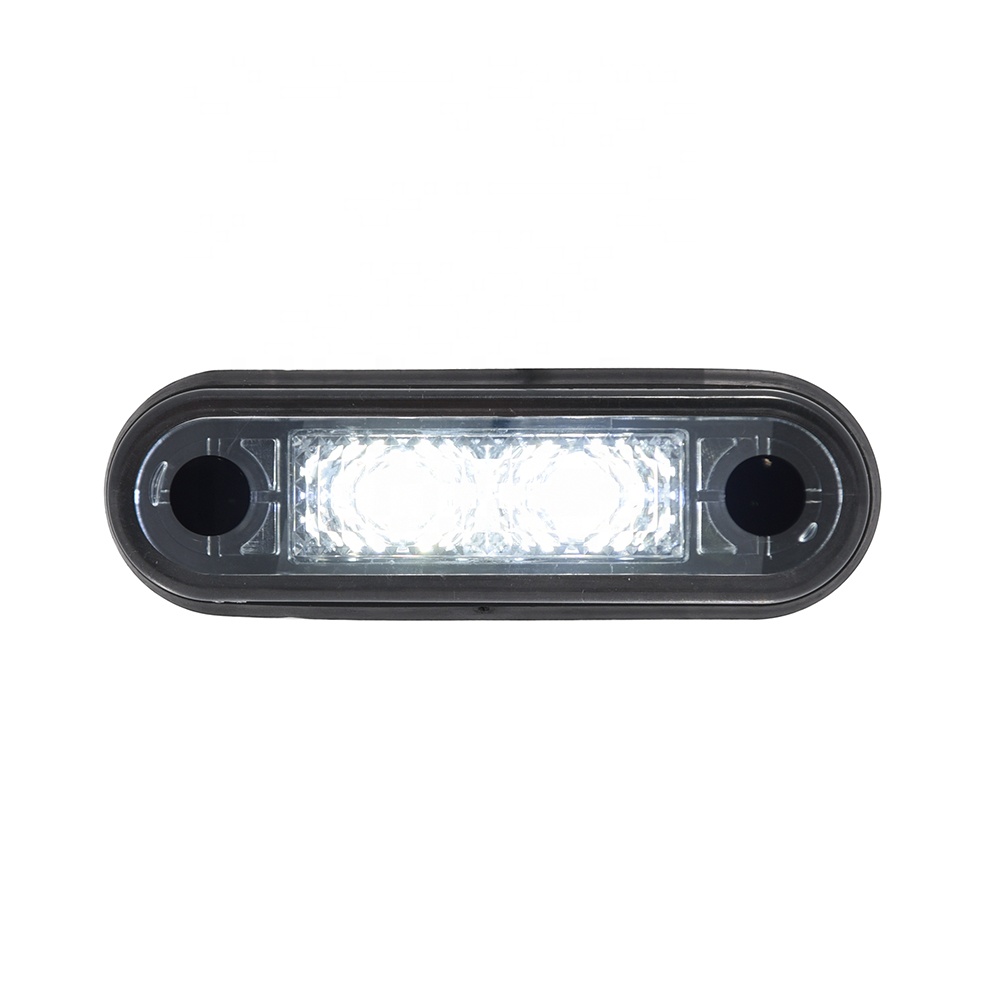

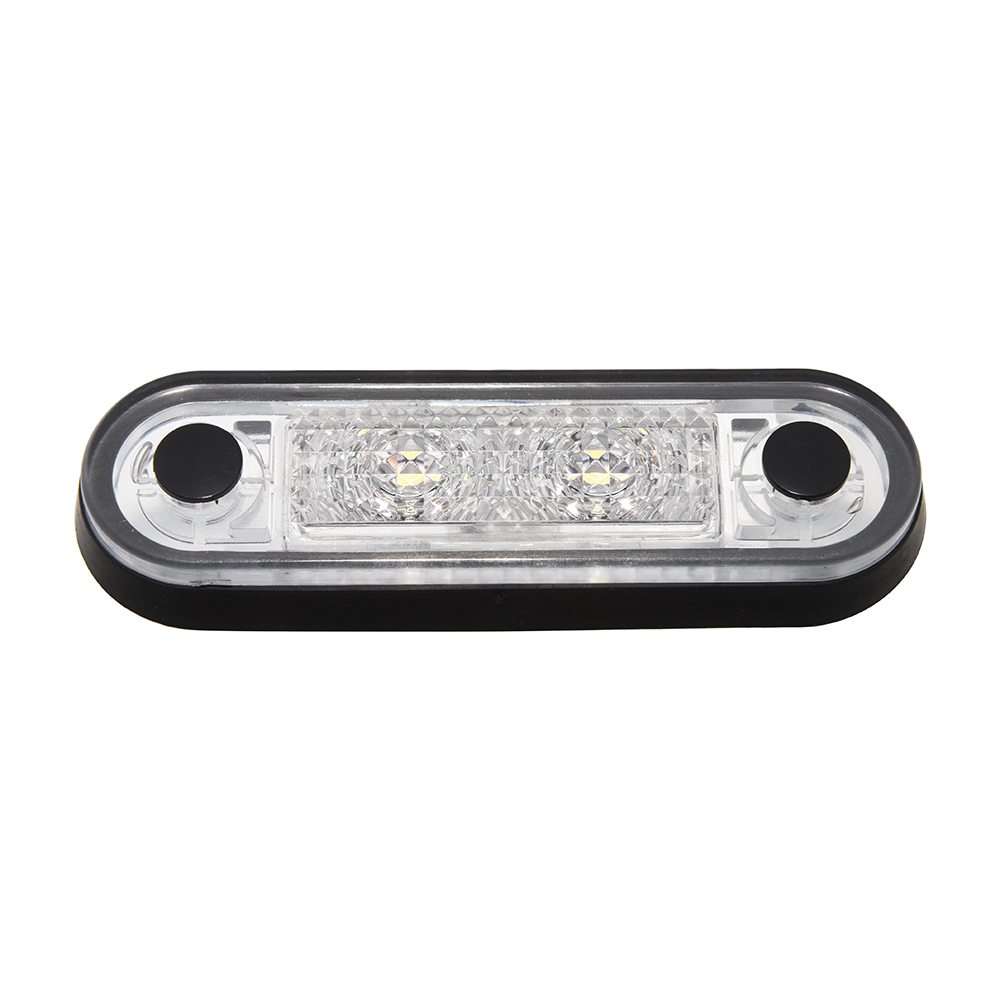

3, Product Pictures

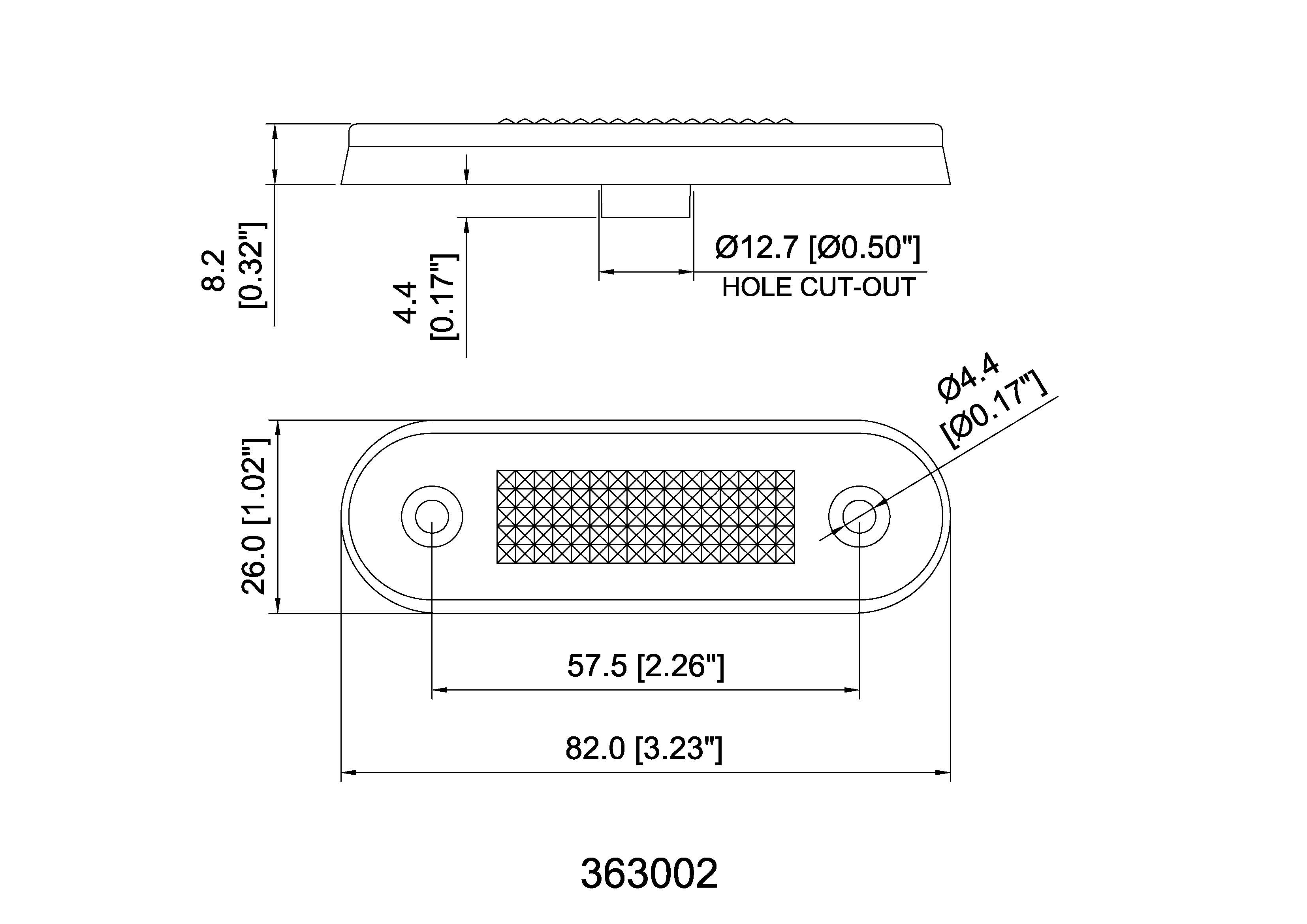

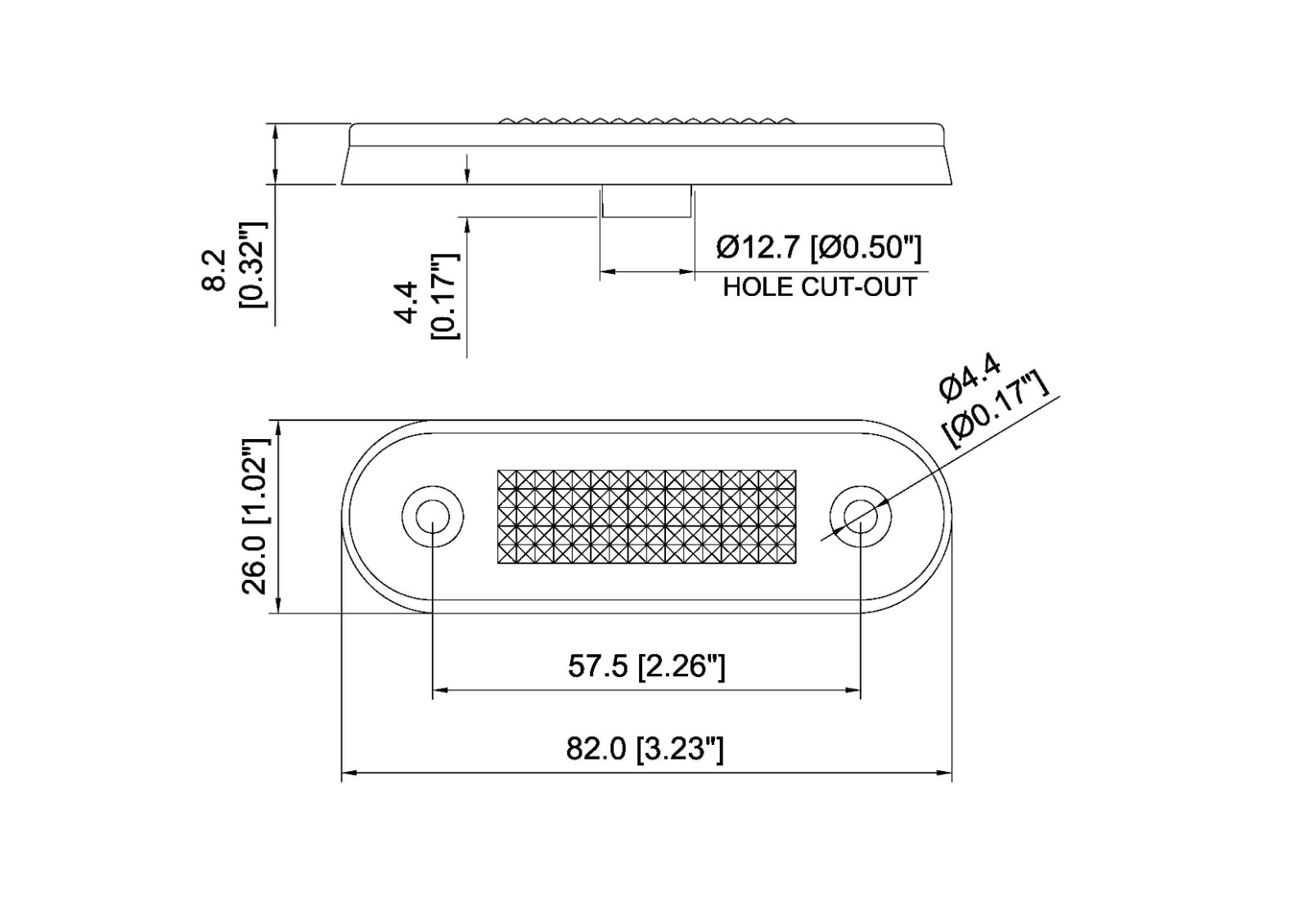

4, Dimensions
