Reference Prices: $7.2-$8.8
E-mail for quotations sales@lightac.com

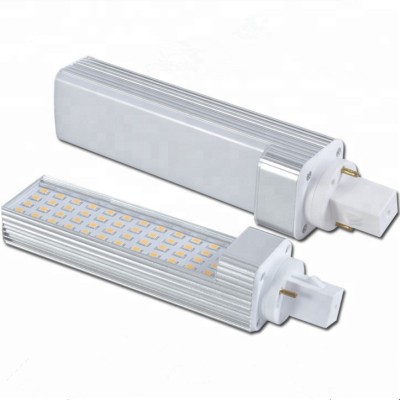

LED Plug-in LED Light PLC150

Model: PLC150

Power: Customized

Voltage: Customized

CCT: 2700-6500K

CRI: Ra≥80/Ra≥90

Source: LED

Material: Aluminum

Finish: White/Black

OEM: Available

Payment-Tems: T/T

Trade-Terms: EXW/FOB/CFR

Sea-Port: Shanghai/Ningbo

Share to:

Lightac Industry Co.,Limited

Business：Supplier of LED lighting for indoor and outdoor, commercial and residential application, etc..E-mail: sales@lightaclighting.com, sales@lightac.com, Website: www.lightaclighting.com www.lightac.com



Hot in store

Product Details

Please kindly note:

Below description is just for reference,
contact us if in need of more information.

Some items may upgrading without update here,it may exist the little difference, please kindly note it.

OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.

CFL Compact fluorescent retrofit G23 2pin 4 pin GX23 GX24Q Epistar chip 12 Watt PL G24 LED Bulb Light

Description & Specifications

Video Description

Product Advantages:

1. It can replace the traditional lamp with nice appearance.

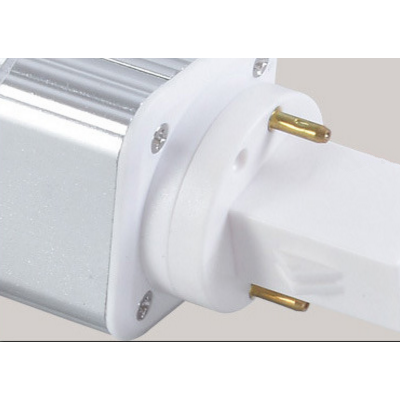

2. The plug of the light is G23/G24/E26/E27/B22

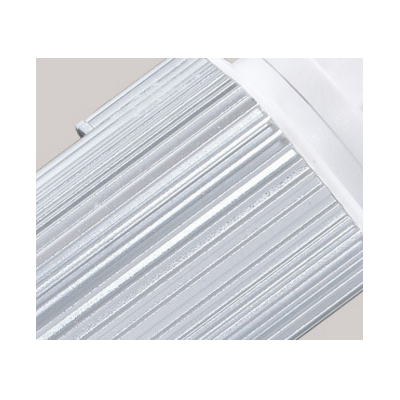

3. The products adopt the connection of AL and PC with inner driver and Aluminum PCB; it is better for heat sink.

Lamp Size

(mm)

LED Quantity

(pcs)

Luminous Flux

(lm)

Socket

164mm

60PCS

850-940Lm

G23/G24/E26/E27/B22

Power	12W

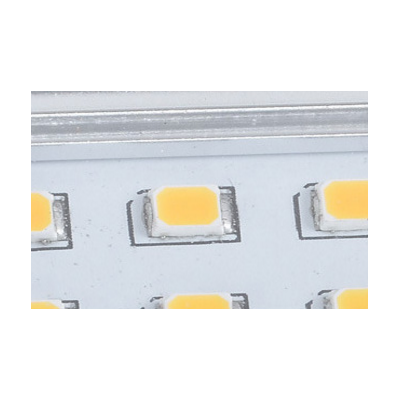

LED Quantity	60pcs 2835 LED
Input voltage	90-260VAC
Beam Angle	120degree
Power Factor	>0.85
Power Efficiency	>92%
Material	AL+PC

Size chart:

Power	A	B	C
5 W	124mm	88mm	28mm
7 W	124mm	88mm	28mm
8 W	147mm	111mm	28mm
9 W	147mm	111mm	28mm
10 W	152mm	116mm	28mm
11 W	164mm	128mm	28mm
12 W	164mm	128mm	28mm
13 W	192mm	156mm	28mm

Socket chart

Structure installation:

12W LED plug light could be installed on the G23/G24/E26/E27/B22 lamp base, pls take down the starter before installing.

Kindly Notice: before installing, please make sure the power source is off!

Aging test:

LED plug light’s aging time is over 72hours, LED plug lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.

Package detail:
