LED Downlight DL720
- Model
- DL720
- Power
- Customized
- Voltage
- Customized
- CCT
- 2700-6500K
- CRI
- Ra≥80/Ra≥90
- Source
- LED
- Material
- Aluminum
- Finish
- White/Black
- OEM
- Available
- Payment-Tems
- T/T
- Trade-Terms
- EXW/FOB/CFR
- Sea-Port
- Shanghai/Ningbo
Lightac Industry Co.,Limited
Hot in store
-
12V 2835 SMD LED Modules with 1.2W MD190
Inquiry -
1.5W High Power 2835 LED Module MD1800
Inquiry -
1.5 Watt IP65 SMD 2835 12V LED Module MD
Inquiry -
High Lumen LED Module for Sign Board LED
Inquiry -
Indoor 3 LEDs Module Signage Lens 1.5w 1
Inquiry -
0.72W 12V DC Waterproof RGBIC LED Module
Inquiry -
3 Years 170° DC 12v 24V 0.96w IP65 SMD2
Inquiry -
Custom 12v Sign 2w Back Lit Channel Lett
Inquiry
Product Details
Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.

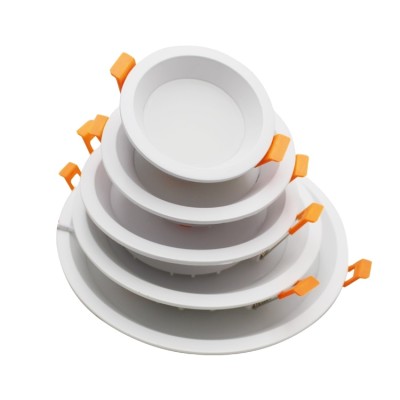

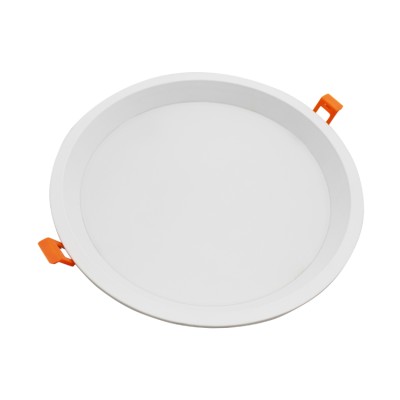

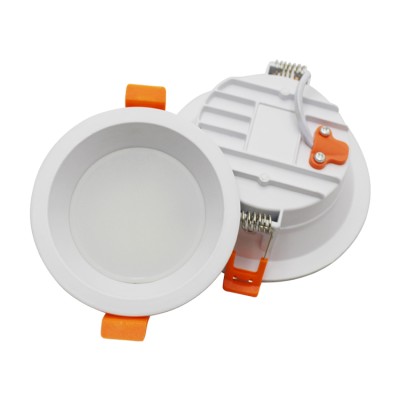

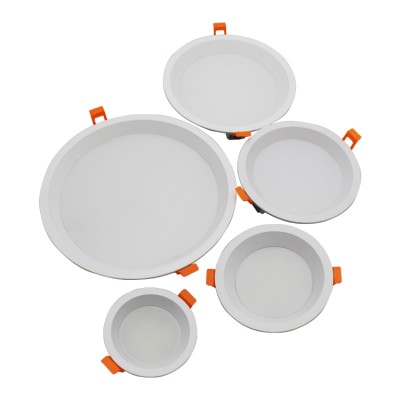

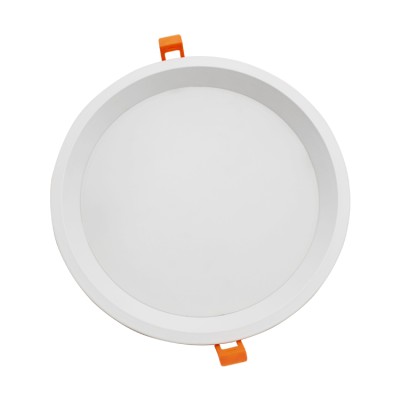

Commercial project modern design recessed ceiling mounted 70-200mm cutout dimmable slim smd cob LED downlight
Description & Specifications
7W 12W 18W 24W Downlight Thin Surface Mount Led Downlights Slim Led Downlight
| Wattage | 7W | 12W | 15W | 18W | 24W |
| Input Voltage | 85-265 | ||||
| Light source | SMD 2835 | ||||
| Lamp Luminous Flux(lm) | 700 | 1320 | 1650 | 1980 | 2640 |
| Dimension | ∅100*30 | ∅120*30 | ∅145*30 | ∅170*30 | ∅225*30 |
| CRI(Ra) | 80 | ||||
| Beam Angle | 180 | ||||
| Cutout | ∅75-85 | ∅90-105 | ∅115-130 | ∅140-160 | ∅195-210 |
| Material | AL+PC | ||||
| Carton Size | 38*37*24.5 | 40.5*30*37 | 37*34.5*35 | 40*40*37.5 | 47.5*37*27 |
| Qty/ctn | 60 | 60 | 40 | 40 | 20 |
| G.W. | 7.2 | 9.5 | 9.2 | 11.3 | 10 |
| Warranty | 2 years | ||||
