Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.

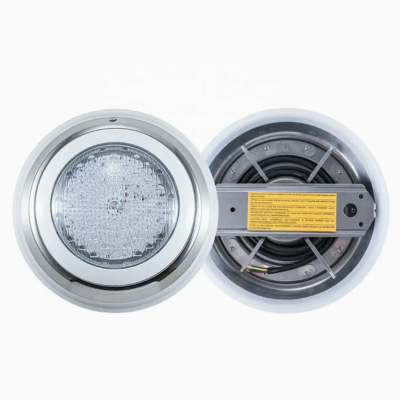

1. Lamp housing uses high-quality SUS304 stainless steel, a delicate and beautiful lamp body, and excellent heat-dissipating performance.

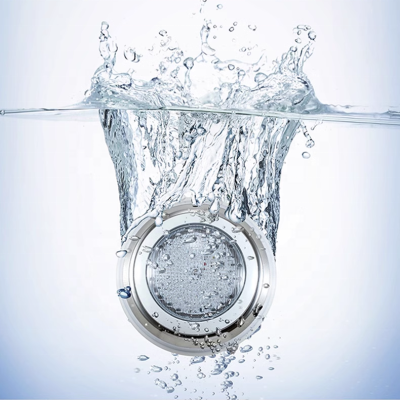

2. Lamp body uses toughed glass and waterproof silicone sealed, the waterproof effect is superior.
3. Light source use imported high-lumen, high-power LED chips, with a built-in constant current power supply, to ensure the stability performance.
4. Use PMMA optical lenses,15,30,45,60 beam angle can choose to achieve the desired effect.
5. Working voltage can choose according to practical application as DC 12V, DC 24V, and AC24V.6.IP68 protection grade.
PC maskWaterproof and explosion-proof PC face shield, with high hardness, not easily broken, high light transmittance, good heat dissipation effect, and protection of the light source.

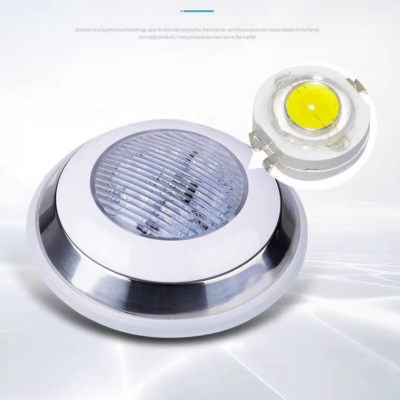

Highlight lamp beadsLED beads, High brightness, low energy consumption, uniform light output, soft light, and long service life.
Stainless steel materialStainless steel frame, after oxidation sandblasting treatment, does not rust and has good corrosion resistance and pressure resistance.
Easy installationThe bottom adopts a waterproof sealing design, and the waterproof P68 wall mounted installation is simple and convenient.
Power | Lamp Beads | Size | Voltage |
12W | 12 Beads | Φ230*H48mm | AC/DC12V AC/DC24V AC85-265V (50/60Hz) |
18W | 18 Beads | Φ300*H70mm | |
25W | 25 Beads | Φ300*H70mm | |
35W | 35 Beads | Φ300*H70mm | |
45W | 45 Beads | Φ300*H70mm | |
54W | 54 Beads | Φ300*H70mm |
Wattage: | 12W, 18W, 25W, 35W, 45W, 54W. |
LED Source: | Bridgelux/Epistar 35/45mil |
CRI (Ra): | >80 |
Working Volgage: | AC/DC12V, AC/DC24V, AC85-265V (50/60Hz) |
LM flux: | 120-135LM/W |
IP Rate: | IP68 Waterproof |
Materials: | Stainless Steel 304 / 316, PC mask |
Light Color: | Warm White 2700-3200K Day White 4000-4500K Cool White 6000-6500K Red / Green / BlueRGB (IR Remote, RF Remote, DMX512 Control System) |
Operating temperature: | -30~70 ºC |
Control way: | Single control/ External control/DMX512 control |
Wire Line: | 1 Meter Rubber Cable (length can be customized) |
