LED Tri proof Light TPL600
- Model
- TPL600
- Power
- Customized
- Voltage
- Customized
- CCT
- 2700-6500K
- CRI
- Ra≥80/Ra≥90
- Source
- LED
- Material
- Aluminum
- Finish
- White/Black
- OEM
- Available
- Payment-Tems
- T/T
- Trade-Terms
- EXW/FOB/CFR
- Sea-Port
- Shanghai/Ningbo
Lightac Industry Co.,Limited
Hot in store
-
Modern Chic LED Floor Lamp FRL580
Inquiry -
3-Color Modern Rechargeable Touch Table
Inquiry -
ABS LED Desk Lamp DTL2200
Inquiry -
Portable Touch Rechargeable Wireless Des
Inquiry -
Rotatable 12W Exterior Interior LED Wall
Inquiry -
Round 12W LED Wall Light WL1730
Inquiry -
Waterproof Durable Aluminium LED Outdoor
Inquiry -
Modern 3000K 12W LED Wall Lamp WL1710
Inquiry
Product Details
Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.
mini triproof vapor tight fixture aluminum housing 6ft 8ft 40w 60w IP65 waterproof led linear batten tri proof light
Description & Specifications
Product Description

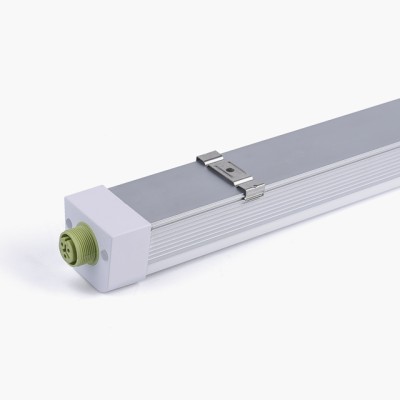

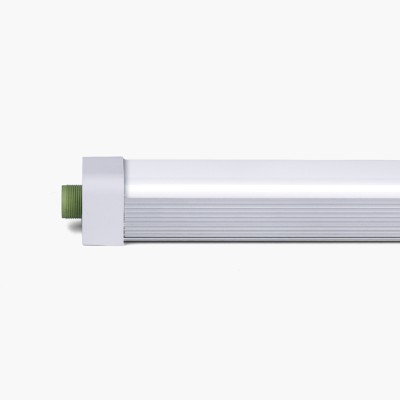

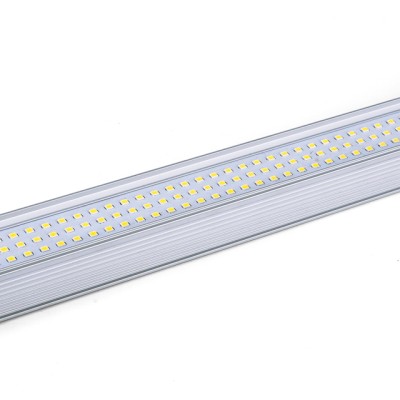

The mini Tri-proof light is connectable design and IP65 waterproof and dustproof. It can replace traditional triproof lights and is widely used in underground parking lots, subway stations, airports, ports, factories, underground tunnels and other humid environments.
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 |
| Efficiency | 110-130LM/W |
| Color Index | Ra>82 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| IP Rating | IP65 |
| CCT | 3000K,4000K,5000K,6000K |
| Material | Aluminum + PC |
| Length | Power | Description | |
| 1FT(300mm) | 8W | Input Voltage:AC100-277V | CCT: 2700K-6000K |
| 2FT(600mm) | 15W | PF: >92% (internal driver) | Lumen:100Lm±10% |
| 3FT(900mm) | 25W | Power Efficiency:>90% | CRI:Ra>80 |
| 4FT(1200mm) | 30W | Clear PC Cover | Working Frequency: 50Hz-60Hz |
| 5FT(1500mm) | 40W | Mositure proof processed | |
| 6FT(1800mm) | 44W | ||
| 8FT(2400mm) | 60W |
Features
IP65 water-proof, dust-proof
Maximum tandem wattage: 200W and 600W optional
Special design for multiple link
Heat protection system, with excellent internal driver
Enjoy Hassle-free, safe and easy Installation
Options
Fuctions: Standard Version / Triac Dimmable Version
Connection options: linkable / Non-linkable / Power on the back

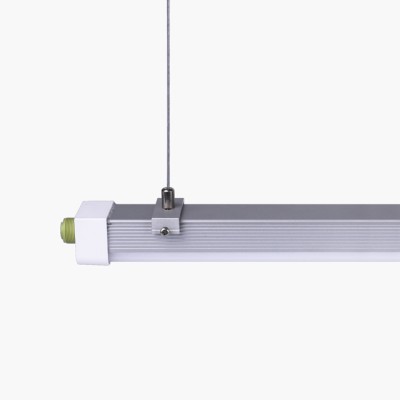

Installation types: Standard Clip, Suspending
Cover: Milky / Clear
