Business：Supplier of LED lighting for indoor and outdoor, commercial and residential application, etc.. OEM / ODM acceptable, this site is only for wholesale business, if you are interested in drop-shipping retail business, please go to our B2C website www.lightsb
Website: www.lightsb2b.com; E-mail: sales@lightac.com
Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.
| Power | 50W | 100W |
| Voltage | AC 85-265V 50/60Hz | AC 85-265V 50/60Hz |
| Light Source | SMD 3030 | SMD 3030 |
| Driver | China (MEANWELL, Phi-lips, MOSO, SOSEN, Inventronics optional) | |
| Warranty(Year) | 3-Year (5 Years optional) | 3-Year (5 Years optional) |
| Material | Die-casted Aluminum+lens+PC Cover | Die-casted Aluminum+lens+PC Cover |
| IP Rating | IP65 | IP65 |
| Lumens | 110lm/w | 100lm/w |
| Size | D560*H470mm | D560*H470mm |
| Color Temperature | 2700K-7000K | 2700K-7000K |
| Application | Garden, Road, Packing Lot, Garden, Square, Pathway, Yard, Public Area, etc | |
| Packing size | Lamp body: 57.5*57.5*21.5CM, 4 PCS/CTN. Lamp base: 73*31.5*23cm, 10 pcs /ctn. | |
| N.W. | 4.65KG | |
| G.W. | 5.65KG | |

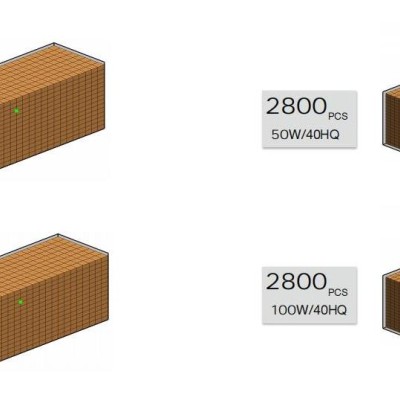

| Container loading | 20’’GP: 1000 pcs, 40’’GP: 2000 pcs, 40’’HQ: 2800 PCS | |
Power: 50W/100WIP/IK level: IP65/IK10 Surge protection device: 10KVA
Input voltage: AC 85-265V,
Power supply brands: China. (MEANWELL,Inventronics, SOSEN, DONE, optional)
Power factor:>0.95

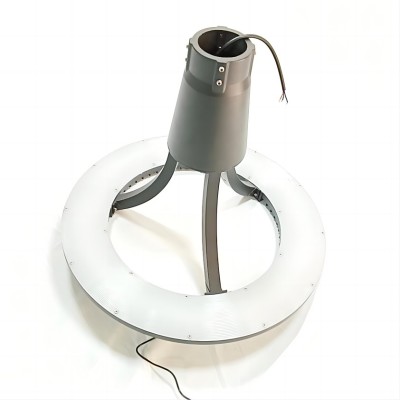

Product material: Die-casted aluminum radiator+PC lens
Luminaire efficiency: 100-110lm/w
Color temperature: 2700K/3000K/4100K/5000K/5700K/6500K
Environmental temperature: -40 ℃~65 ℃
Color rendering index:>70
Lamp life:>50000 hours
Chip: 3030 SMD. (Phil-ips Lum-ileds/Lightning/Smalite/TYF 3030 SMD optional)
Warranty: 3 years (5 years optional)
Product advantages
Unique design

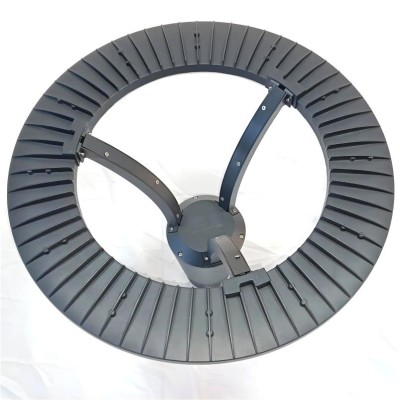

2.Die-casted Aluminium heatsink
3.Beam angle: 120 degree,
4.Small volume to save freight cost

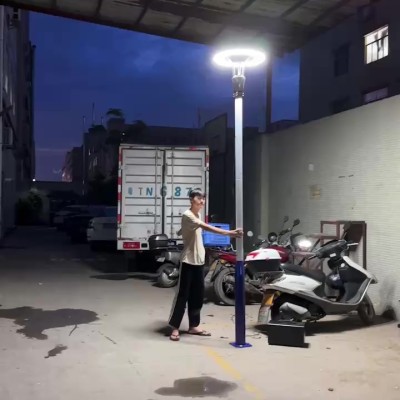

Product applicationStreet, park, square, garden, urban lighting, suburb lighting, road lighting
