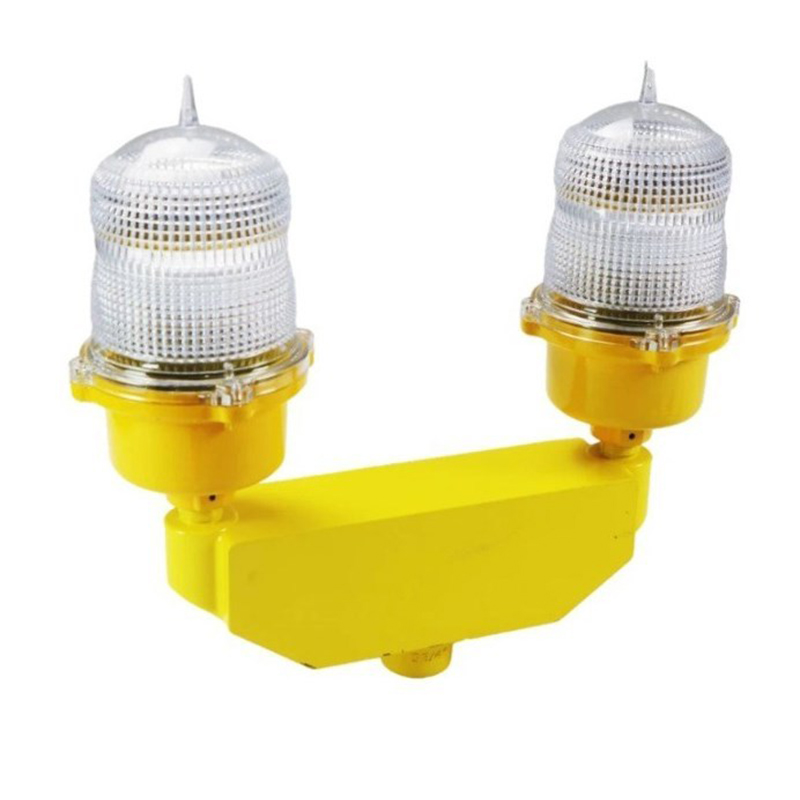

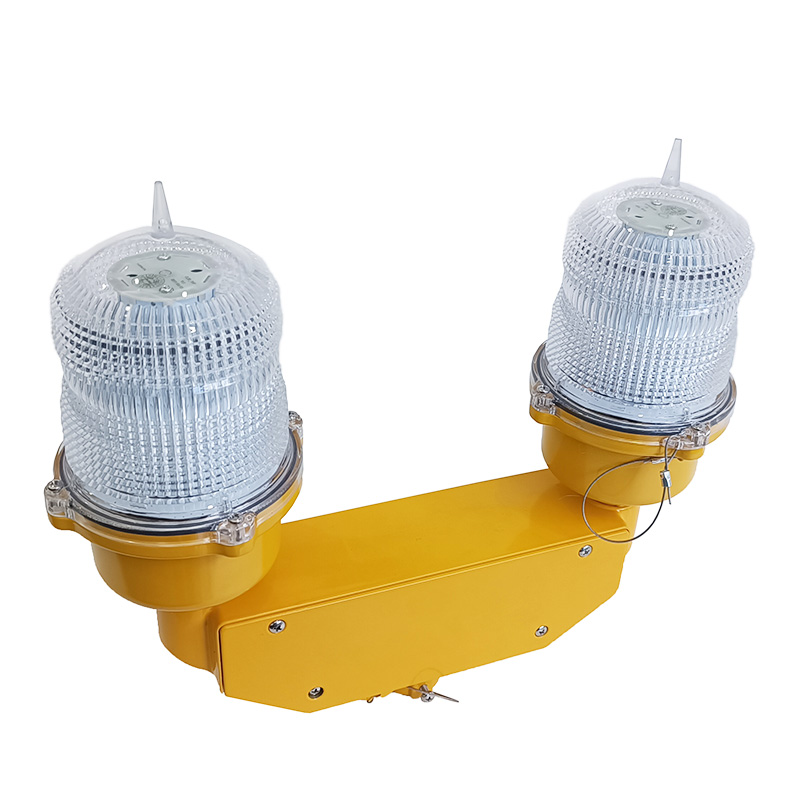

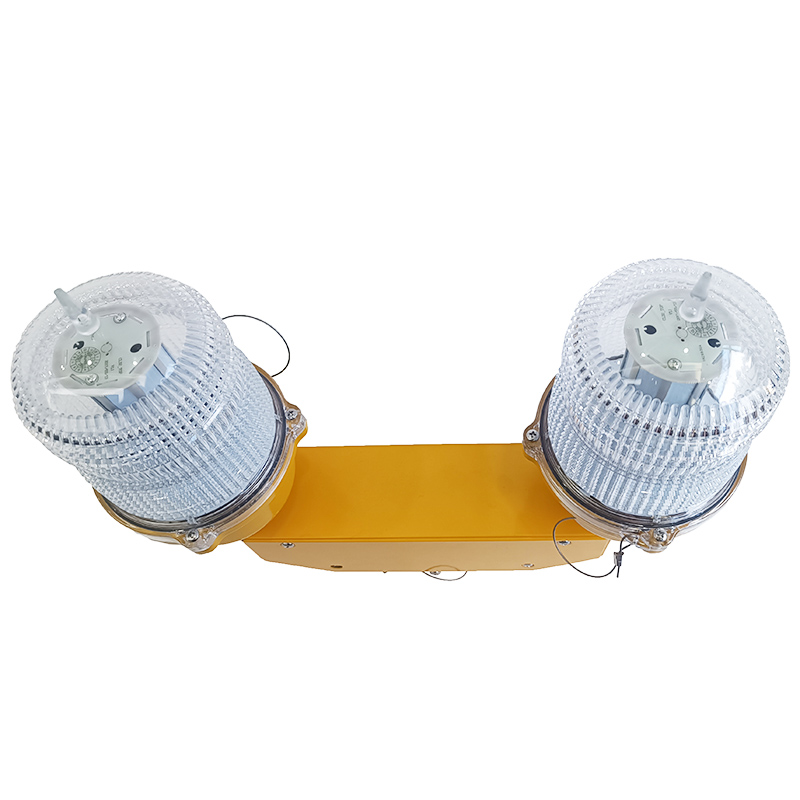

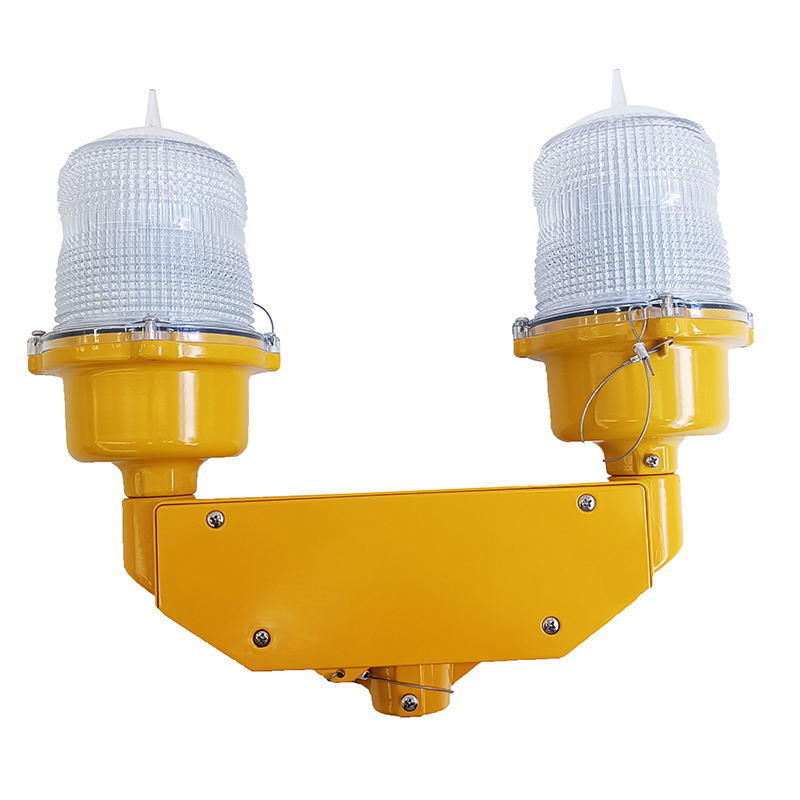

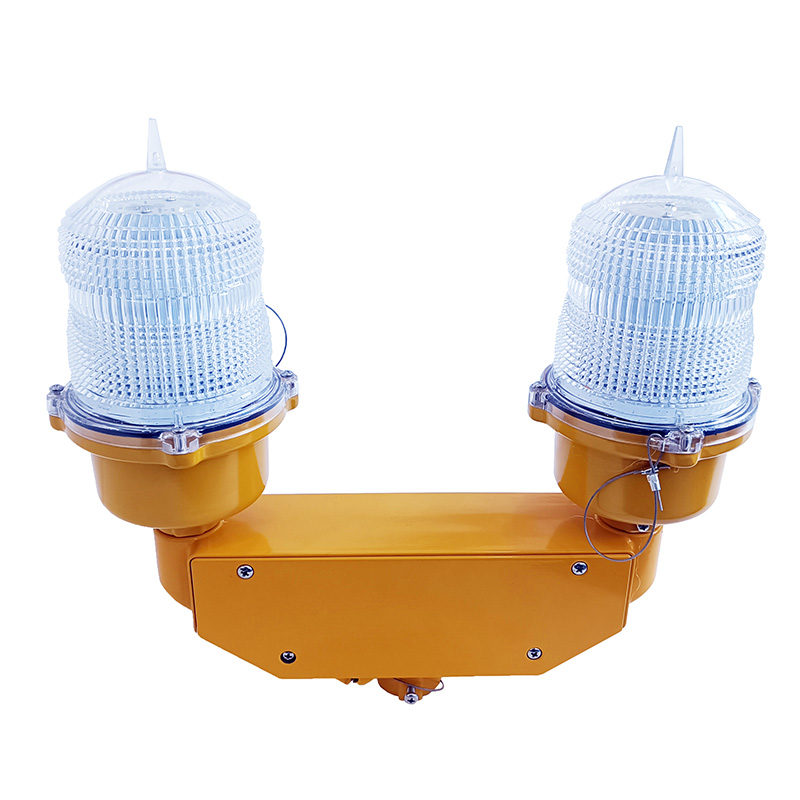

Low intenstity Dual LED aviation obstruction lights 32.5cd steady burning for high-rise buildings/antennas/towers/cranes
Product descriptions
Built-in Photocell Aviation Obstruction Light is designed for marking any obstacle that may present hazards to aircraft navigation.It is made of die-cast aluminium alloy housing with a polycarbonate dome and complies with ICAO regulations for low-intensity Type B lights.GPS or GPRS functionally is available upon request.
FEATURES AT A GLANCE
1.Utilizes LED or infrared LED Technology.
2.Customizable for both AC and DC power conditions.
3.Opiton for steady burning or flashing mode.
4.Multiple light elements in the source reduce the risk of complete blackout in case of single source failure.
5.All hardware components are made of corrosion-resistant metals.
6.NVG(Night Vision Goggles) compatibility is an optional customization.
Support AC and DC power supply
Die-cast Aluminium Alloy Body
LED Light Source
| Effective Intensity | 32.5 Candela |
| Vertical Divergence | 10 Degree |
| Horizontal Divergence | 360 Degree |
| LED Color | Red |
| LED Lifespan | 100,000 Hours |
| Flash Pattern | Steady Burning(Default) or Flashing Mode(20-60 times/min) |
| Power Consumption | 5W(Steady Burning) |
| Input Voltage | 85-265VAC,50/60 Hz;12VDC;24VDC;30-60VDC |
| Lens | Polycarbonate,UV Stabilize |
| Body | Die-casting Aluminium |
| Water-proof | IP67 |
| Weight | 3.5KGS |
| Dimension | 340x413x140mm |
| Mounting Size | Threaded 3/4'' bottom hub |
| Temperature Range | -40°C~+55°C |
| Wind Speed | Up to 150mph(240kph) |
| Warranty | 5 years |
| Optional | Available in flashing pattern(40FPM) Available with built-in photocellAvailable with built-in alarm relay contacts |
Built-in Photocell
Steady Burning or Flashing Mode
