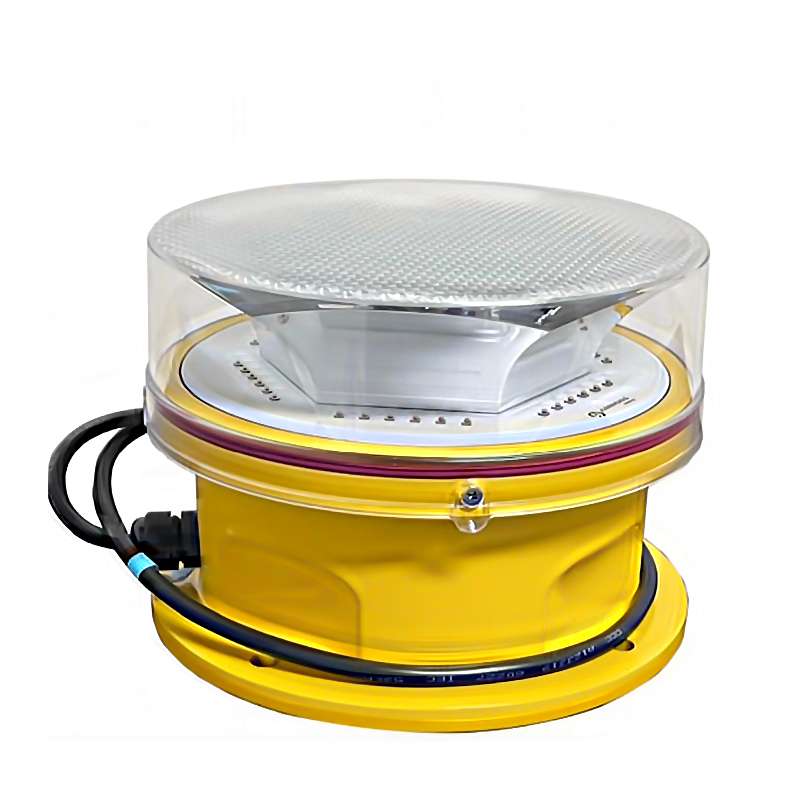

Medium-intensity Type B Aviation Obstruction Light

Product descriptions

Application:

This aviation obstruction light is used to mark buildings that pose a threat to aircraft. It is suitable for outdoor structures with heights greater than 45 meters but less than 105 meters, such as buildings, towers, and large construction machinery that require warning to aircraft. It is designed to withstand installation in high-salinity areas.

STANDARD:

CAAC MH/T6012-2015

AC-137-CA-2017-05

ICAO Attachment 14, Volume I, Sixth Edition

FAA Advisory Circular 150/5345-43GH L-864

Specifications:

LED lifespan: ≥ 100000 hours
LED color: Red
Effective light intensity (cd): ≥ 2000cd (at night)
Horizontal lighting angle: 360 °
Verticallighting angle: ≥ 3 °
Flash frequency: default 20 FPM (20~60 FPM can be customized)
Light control threshold:<50cd/m2 at night
Rated voltage: AC 220V (single-phase) (other voltages can be customized)
Working frequency: 50Hz
Average power:<2W (20fpm)
Material Body: Aluminum Alloy
Lightshade: PC
Light shade color: White transparent
Installation size (mm): Dia. 200 × θ 12 (mm)
Dimensions (mm): Dia. 230 × 168 (mm)
Product weight (kg): 2.5kg
Can withstand ambient temperature: -40°C~55°C
Storage temperature: -55°C~70°C
Can withstand environmental humidity: 0%~95% RH (non condensing)
Wind resistance level: ≤ 240Km/h
Protection level: IP65

Optional Accessories: Installation bracket/power cord (The length of the power cord can be customized, with a default length of one meter.)

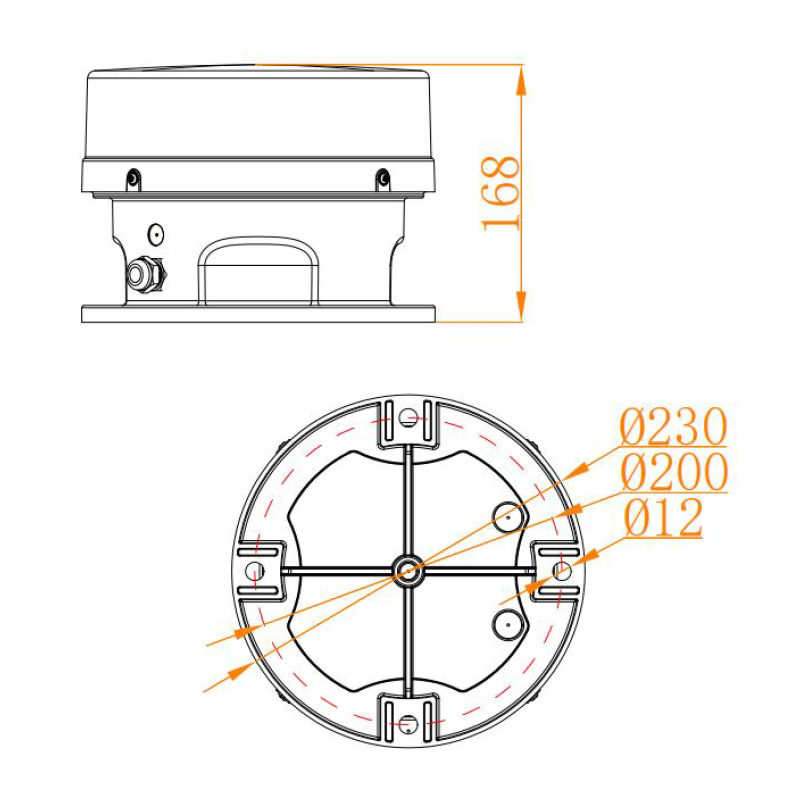

Size:

Install:

Notes:

1. Please ensure that the power supply voltage matches the specified voltage before use.
2. The temperature of this product may rise slightly during operation, which is normal.
3. The product uses PC material components (such as lampshades and shells) that must not come into direct or indirect contact with organic solvents such as industrial alcohol, thinner, isopropanol, carbon tetrachloride, cyclohexanone, etc., as they may cause corrosion and cracking.
4. Do not touch any part of the lamp body during operation to prevent danger.
5. This product is a sealed structure. Unauthorized personnel are not allowed to disassemble or assemble it. If such actions are discovered, our company will not provide a warranty.
6. While the product is operating, do not look directly at the lamp at eye level to avoid eye damage.
