7" LED Dome Light SS Low Profile, Sensor Touch Dimmable RV Caravan Marine Boat Interior Lamp CE/RoHS/REACH Certificated
Product descriptions
1, Features
• Highly polished 304SS bezel, frosted and diffused plastic lens with aluminum heatsink on the back
• Low profile & surface mount with fasteners included
• SMD 2835 LEDs, available in single White Color and White/Red Nav. version (red night vision)
• Dimmable by sensor touch. Touch to turn on the light and keep touching for approx.5 seconds to
dim it to the brightest. Two independent sensor touch switches to control white color or
red (blue) color separately
• The light is completely sealed by epoxy to ensure its water proof, IP65 rated.
• Rated for multi-voltage 10-30V operating range
2, Technical Information
Description | Input Voltage | Lighting Color | No. of LEDs | CCT | Luminous Flux (lm) | Current Draw (A) at 13.8V |
Touch Dimmable, Single White Color | 10~30 V | Natural White | 12 | 4,500K | 330 | 0.55 |
Touch Dimmable, Combination Color White/Blue | 10~30 V | N.W./ Blue | 12W/6B | 4,500K Blue | 330/26 | 0.55/0.23 |
Touch Dimmable, Combination Color White/Red | 10~30 V | N.W./ Red | 12W/6R | 4,500K Red | 330/58 | 0.55/0.23 |
Not Dimmable, Single White Color | 10~30 V | Natural White | 12 | 4,500K | 330 | 0.55 |

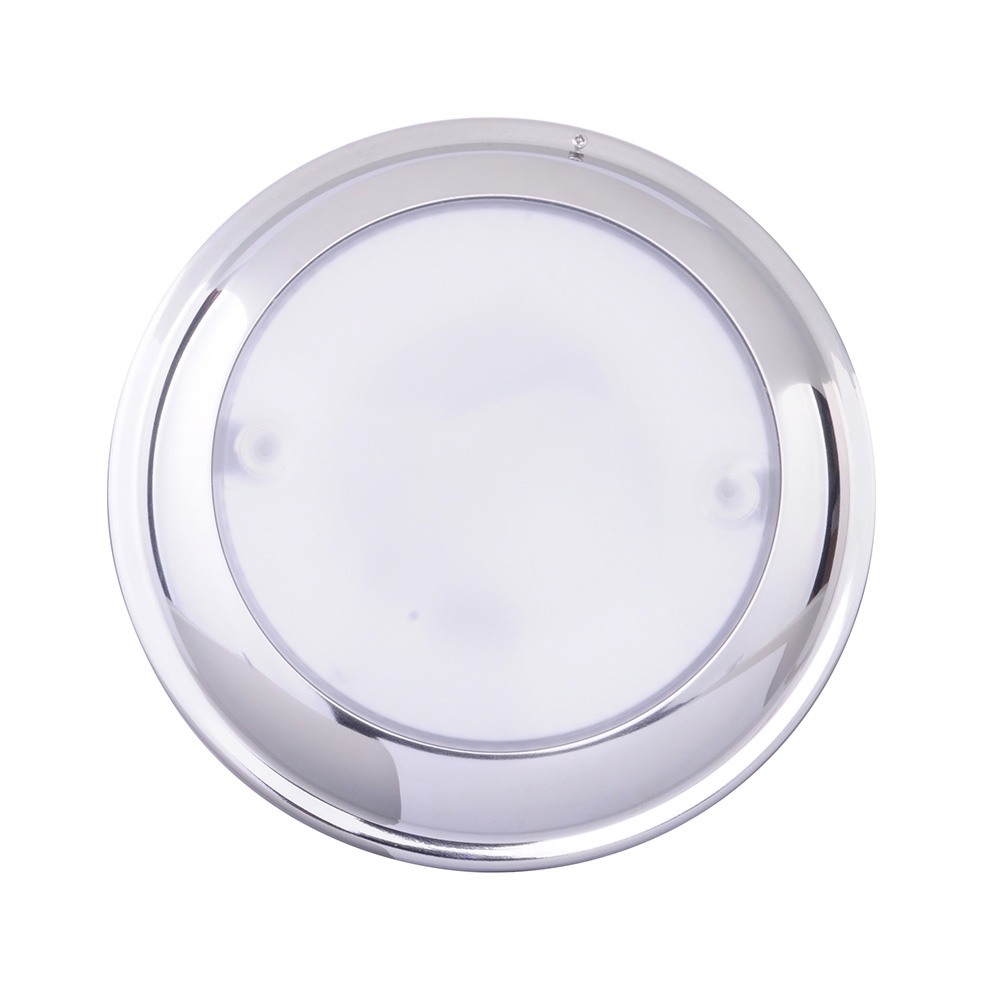

3, Product Pictures

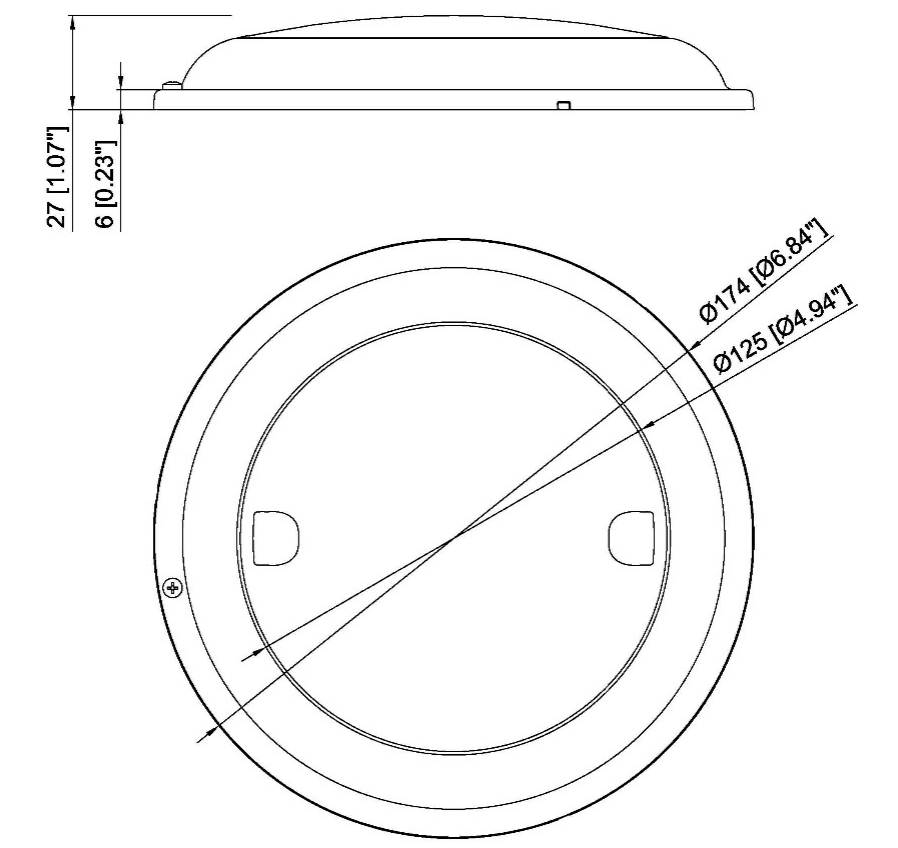

4, Dimensions
