Office LED Pendant Light Aluminum and PC Lamp Body 600/1200/1800/2400mm SMD2835 Chip CE/ROHS Certified IP44 Rated
Product descriptions
| Measurement: | |
| Product name | LED Linear Light |
| Surface treatment | Powder coated or Brushed aluminum |
| CCT | 3000K,4000K,6000K |
| LEDs | 2835SMD (SANAN chip) |
| LEDs Life Span | 50000H |
| Input Voltage | 100-277V/200-240V 50/60HZ |
| Power supplier | Flicker-free |
| Luminous Efficacy(lm/w) | 100lm/W |
| Color Render (CRI) | RA≥80 or RA≥90 |
| Power factory(PF) | ≥0.9 |
| Optional features : | 0-10V dimming, DALI dimming,CCT dimming |
| IP Rated | IP20 |
| Beam Angle | 120° (Degree Beam Angle) |
| Working Temp(℃) | Surrounding Ambiance Temperature -25°~40°Degree Celsius |
| Body Material | aluminum,PC,ABS |
| Color Option(shell) | Silver,White,Black |

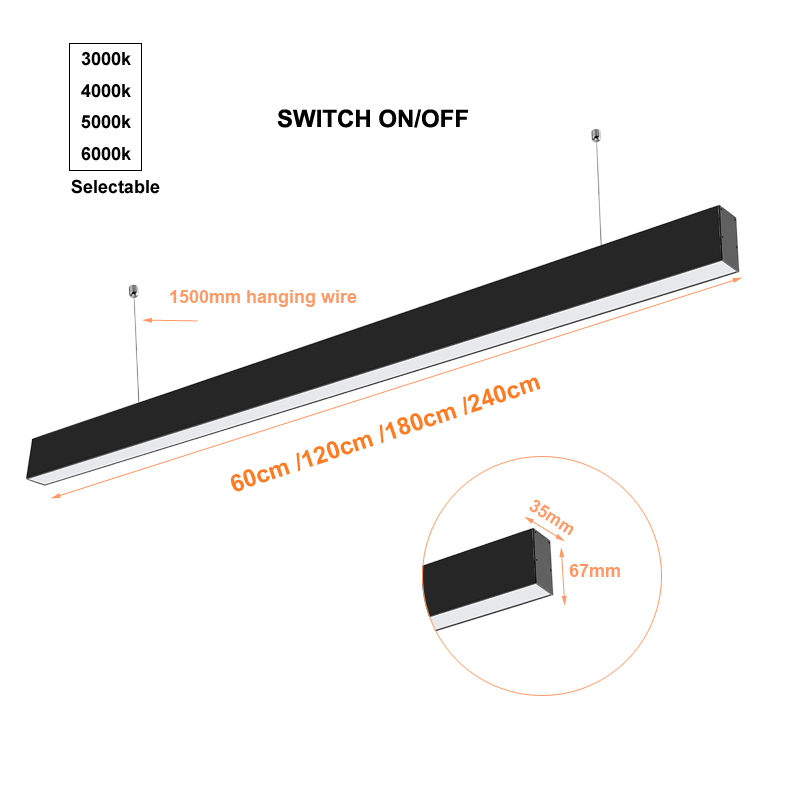

Standard specifications :
| Size | Watts | Voltage | CRI |
| L600*W35*H67 | 20W | AC200-240V/100-277v | Ra>80/90 |
| L1196*W35*H67 | 40W | AC200-240V/100-277v | Ra>80/90 |
| L1790*W35*H67 | 60W | AC200-240V/100-277v | Ra>80/90 |
| L2386*W35*H67 | 80W | AC200-240V/100-277v | Ra>80/90 |

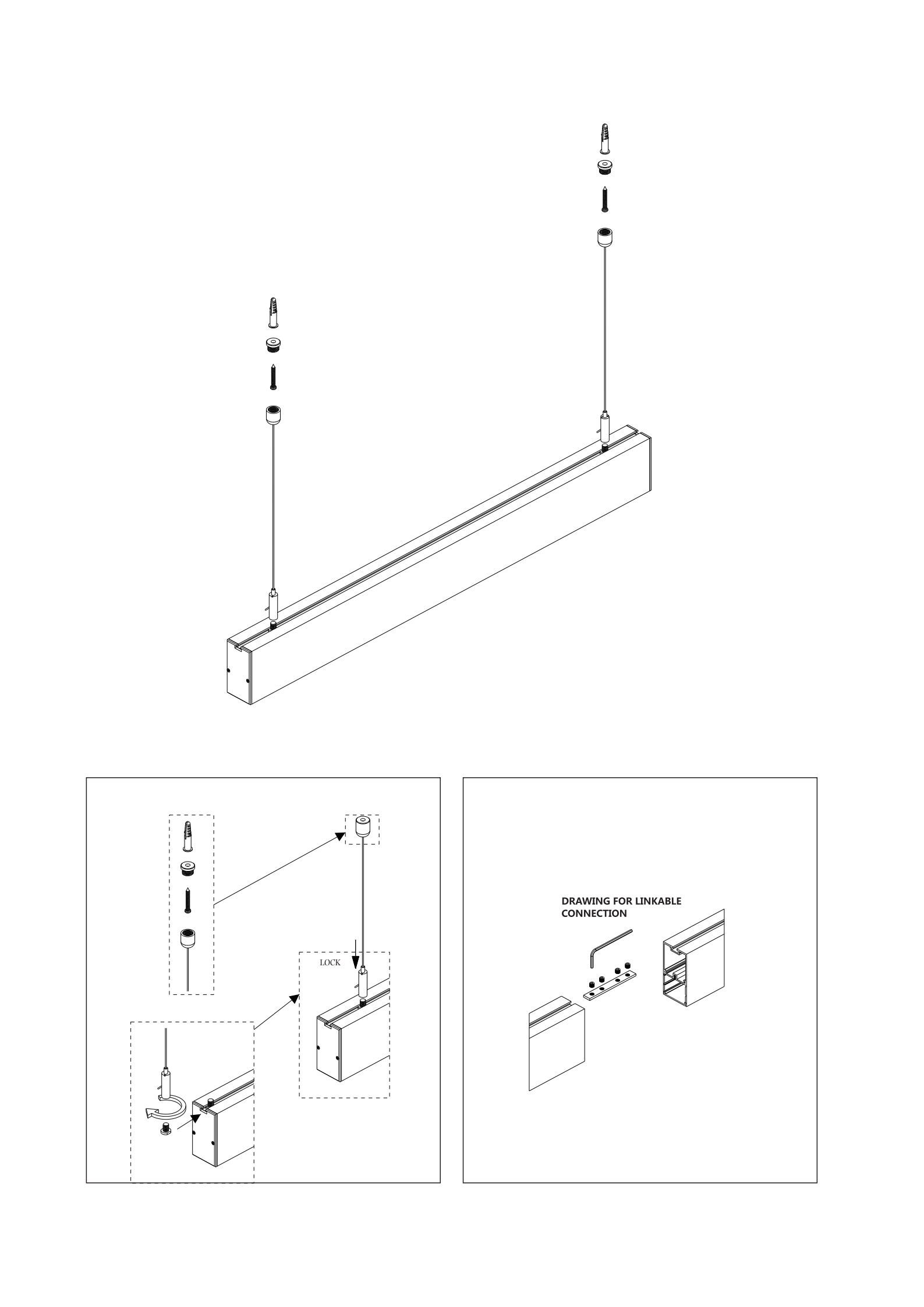

Installation methods

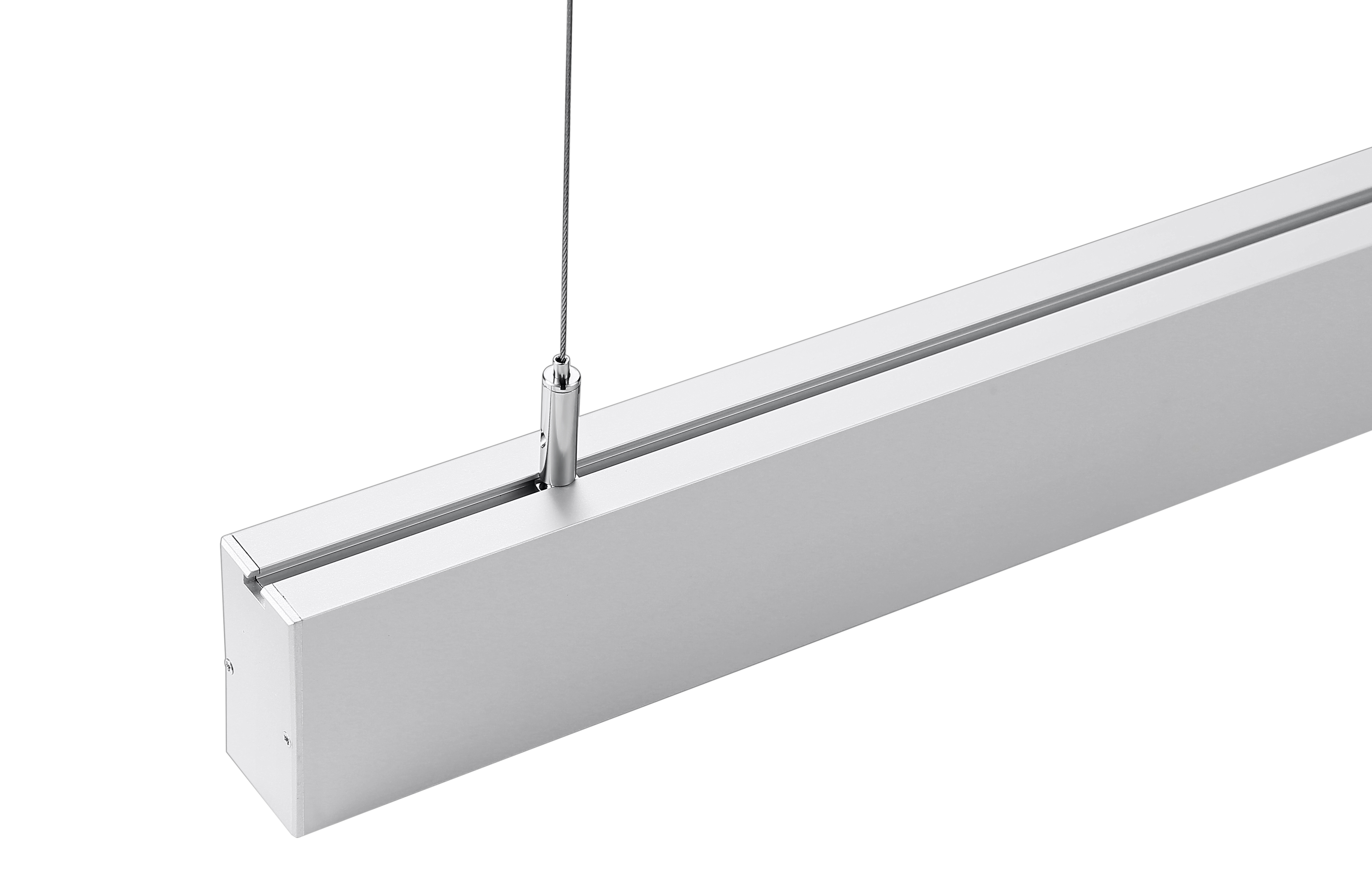

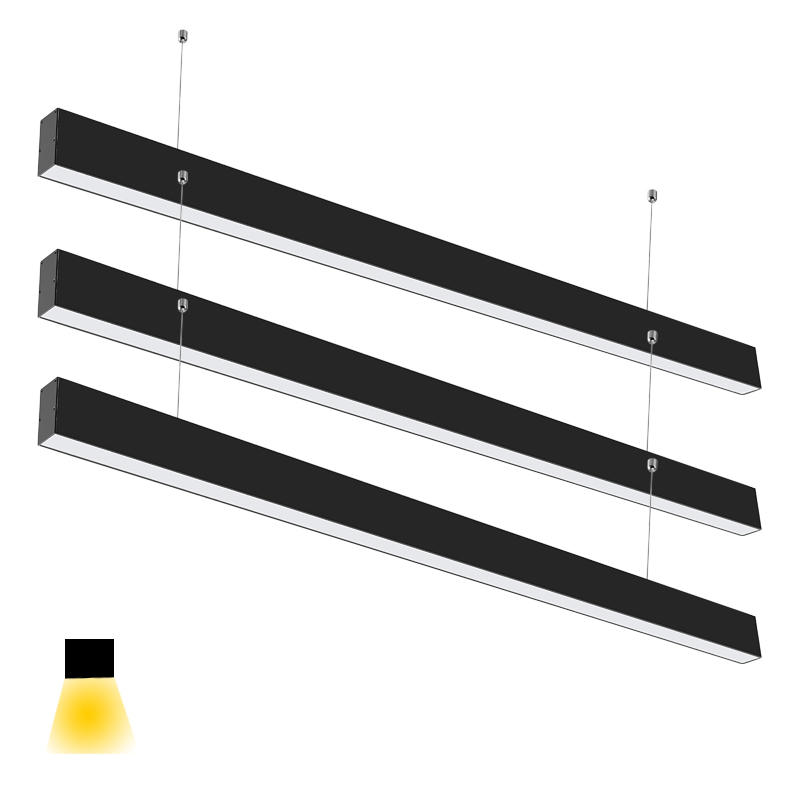

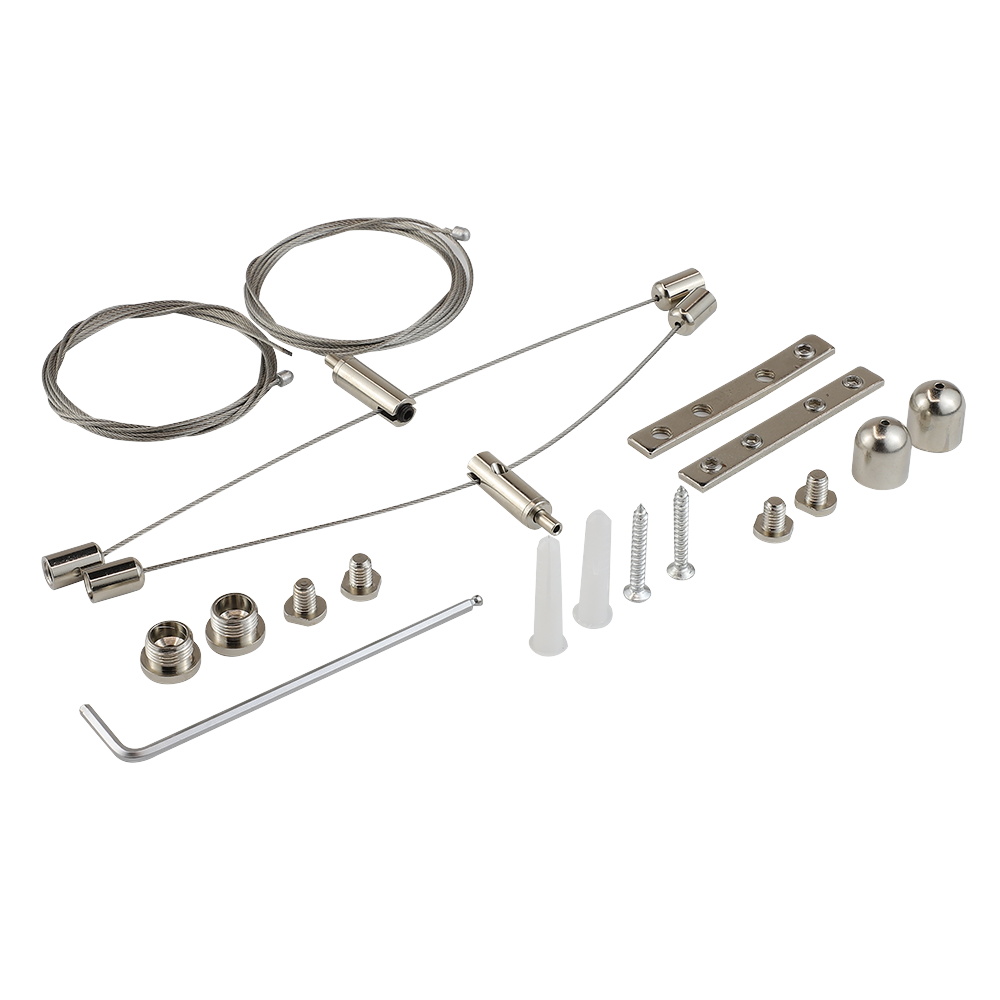

1.Suspened wire2.Ceiling mounted3.Different angle corner option to make different shapes

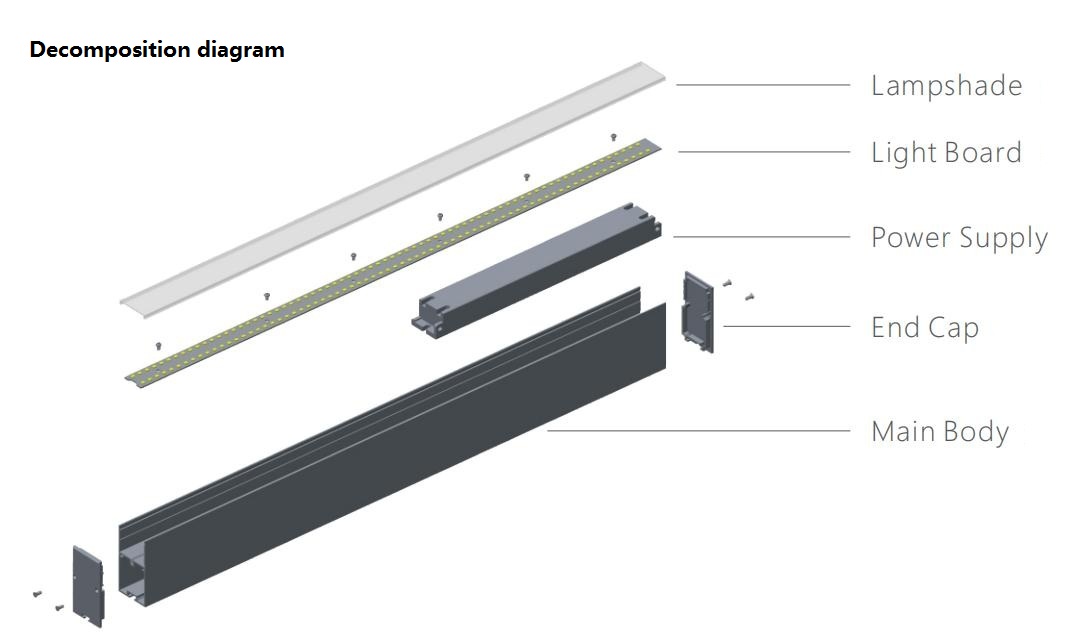

Feature
1.Connect with seamless, form with line shape.
2.Product can be used hanging ,surface mounted, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can't run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.

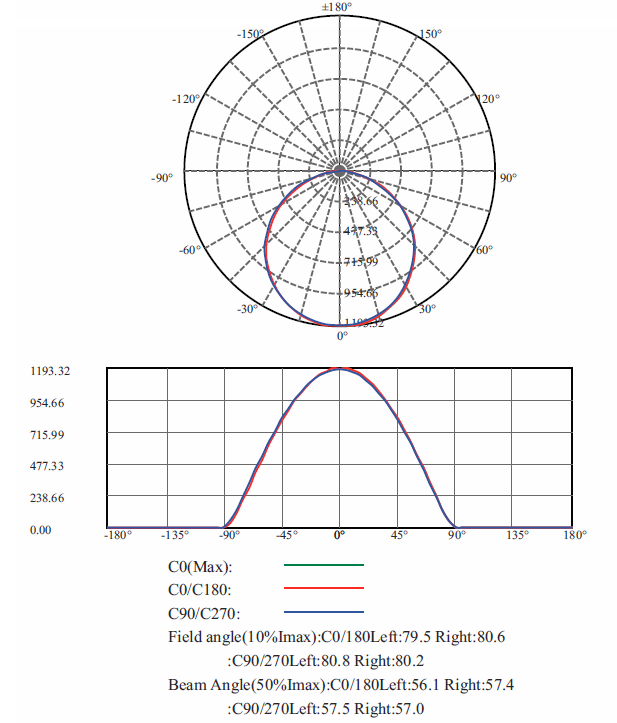

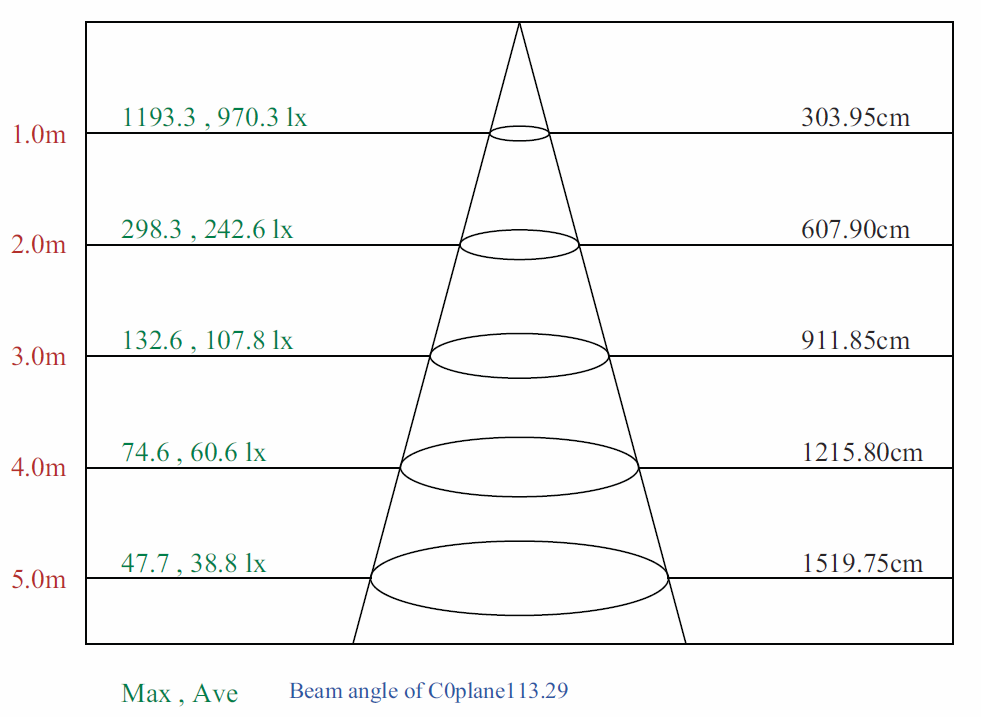

Graphs/profile

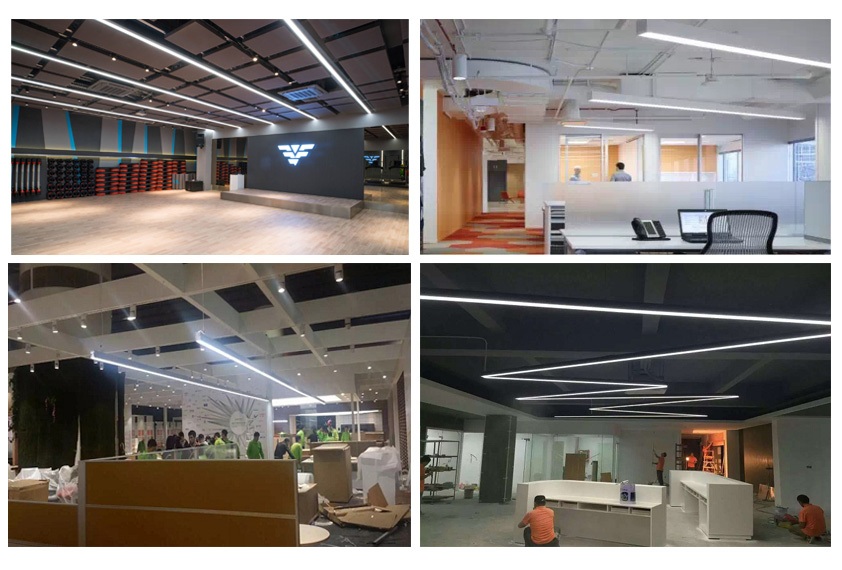

Applications

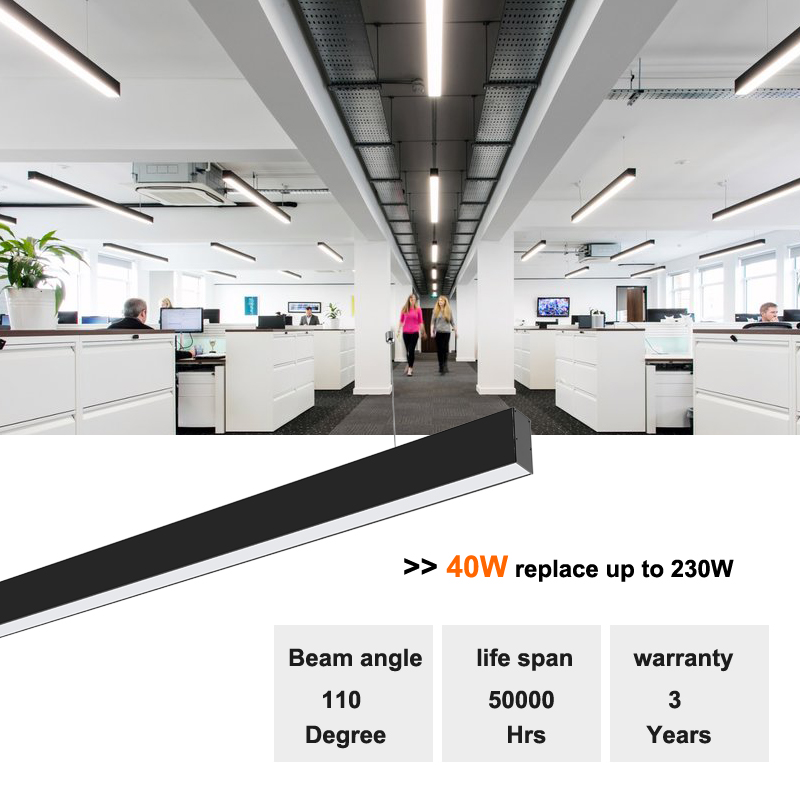

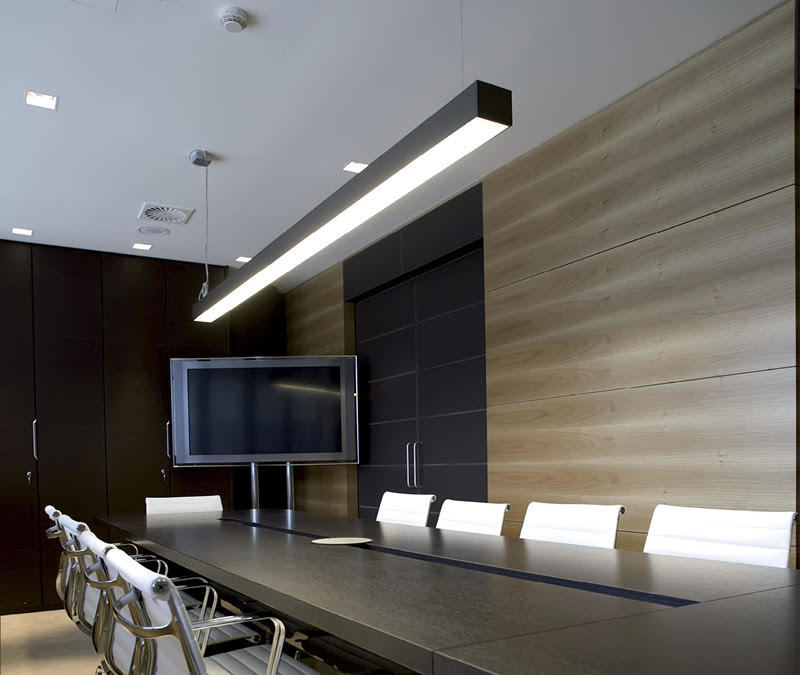

Use in shopping mall, office, school, leisure site, garage, factory, school, supermarket, hospital, store
etc.
