V Shape / Flat DC24V DC12V LED Fridge Display Light Led Light for Cooler
Product descriptions
V shape / Flat DC24V DC12V led fridge display light led light for cooler

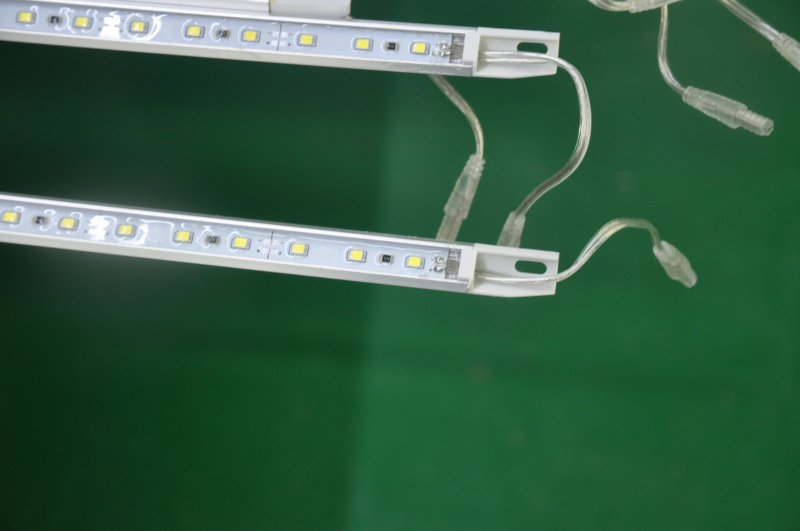

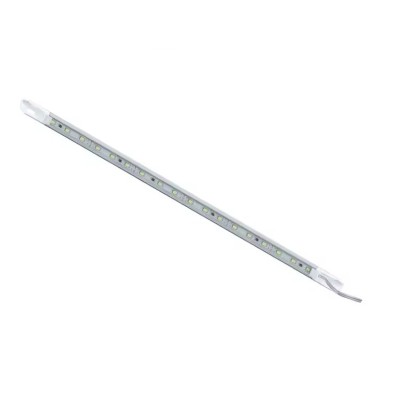

V shape:

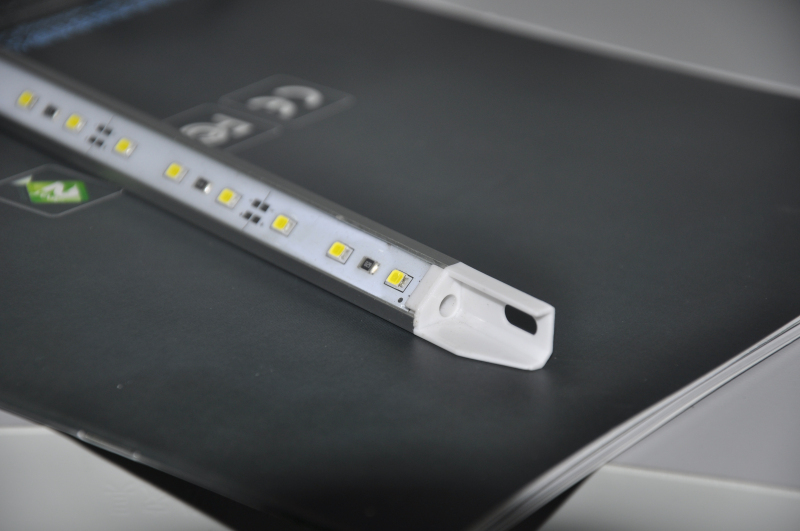

Flat type:

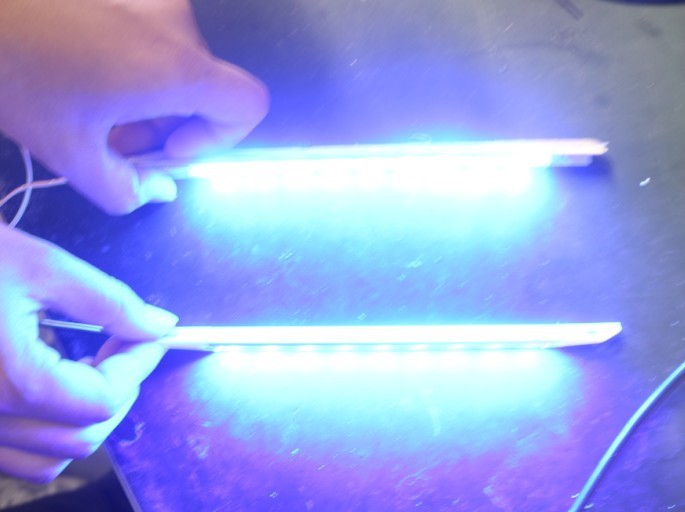

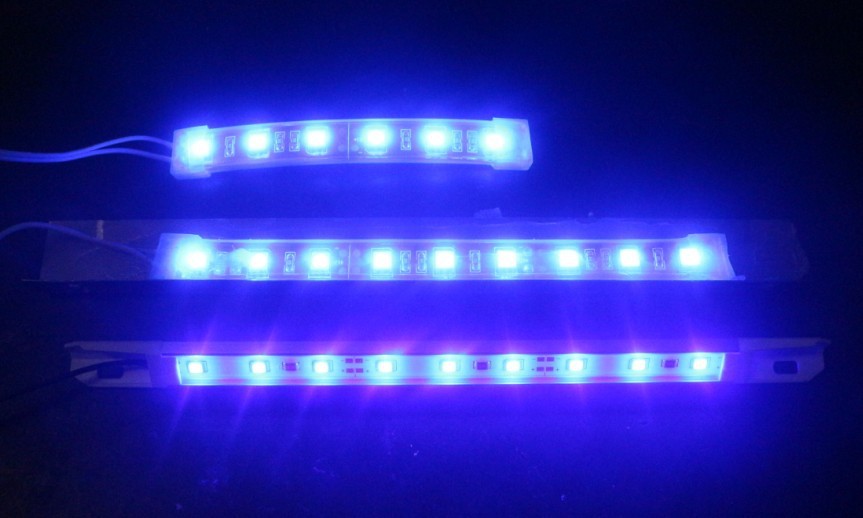

Customized Blue led:

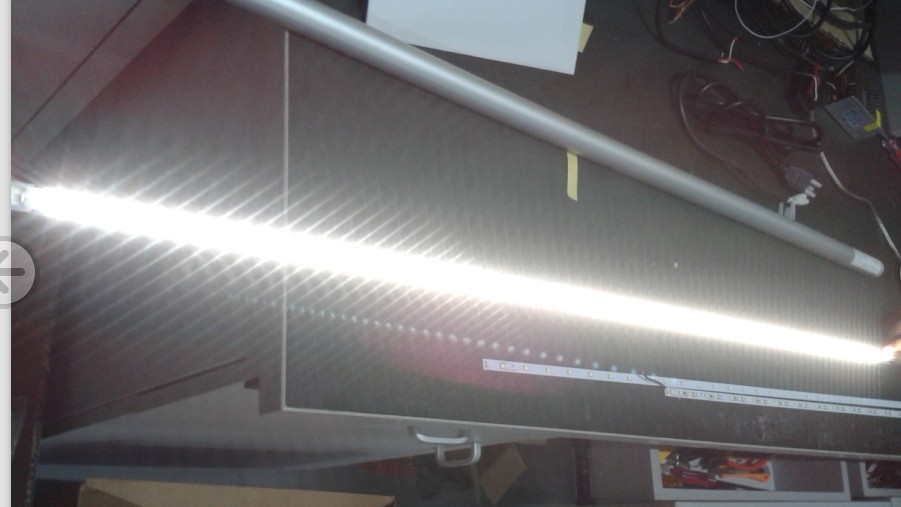

5.The White color display:
Application:

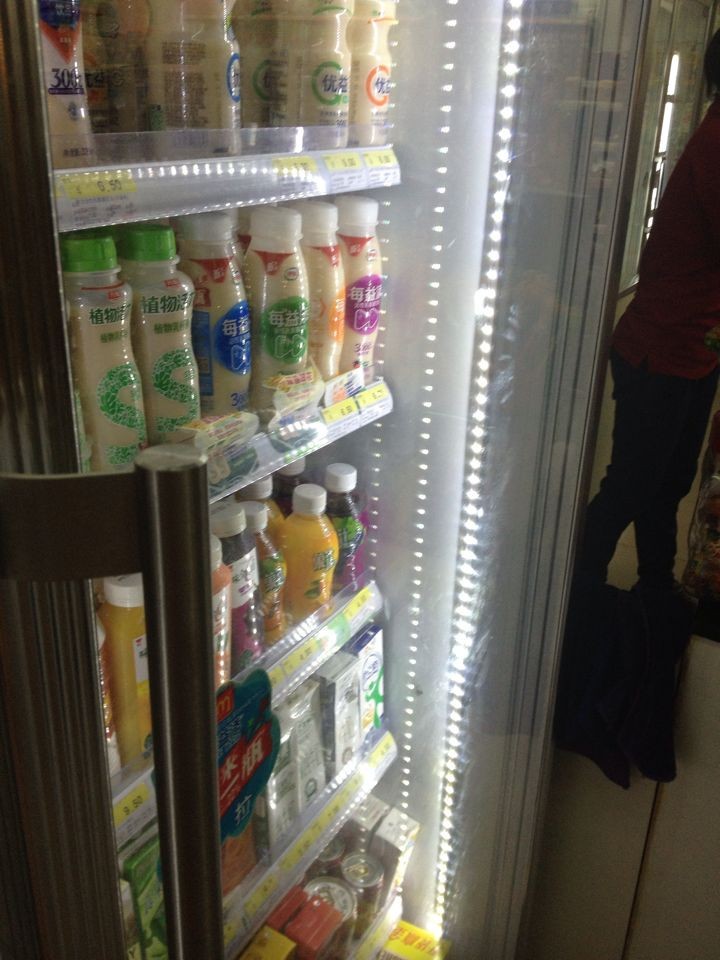

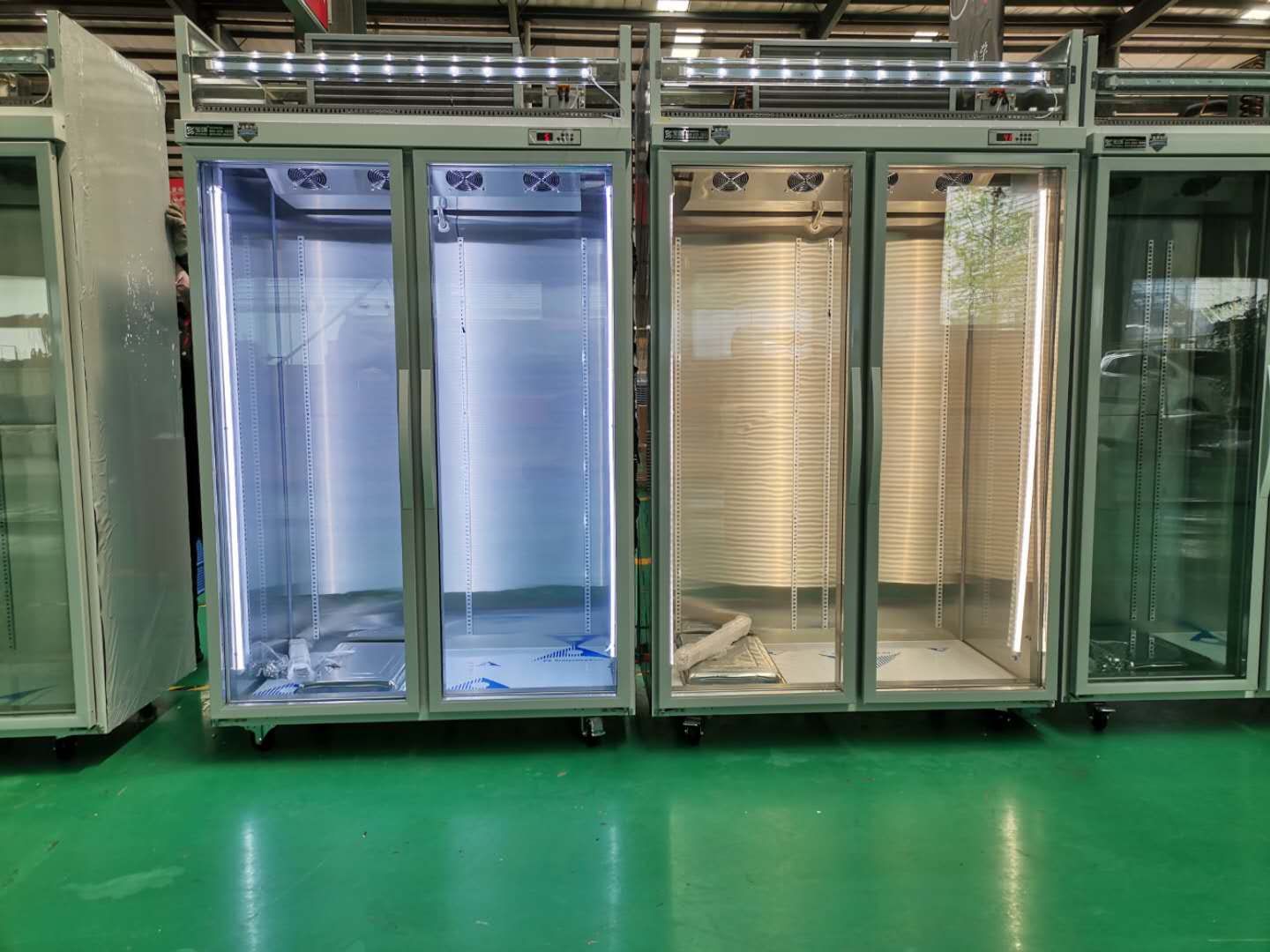

Suitable for using on different shapes freezer,refrigerator,beverage,cold room,etc.
Work temperature:-20 to 60 degrees;
IP65,waterproof;
Data sheet:
| Light source | SMD2835 | Mounting | fixing with two screws | |
| Lifespan of light source | 50000+ hours | Surface Temperature | -20 to<60°C | |
| Viewangle | 120° | CCT | WW:2700-3200K PW:4000~4500K CW:5000-6000K | |
| luminious flux | 85-90 Lm/W | IP grade | IP65 | |
| Voltage | DC12(Standard)/DC24V | length | 300-1500mm,can customize longer length lamp; | |
| Lamp beads density(LED/M) | 60/72/90 led/m,60led/Meter is standard; | |||
Product feature
1. Aluminum body+pc cover construction,good heat dissipation;
2.IP grade reaches to IP65,waterproof,can work at minus 20 degrees low temperature to suitabl for cold environment working conditions;
3. X1A is adopt low voltage constant current scheme, can centralized power supply, aim to cost saving(save power driver cost) and easy installation;
4.Different color temperature available,for example,if used in meat counter,just add red beads make meat more ruddy;if add some green beads make vegetable and fruit more green and fresh,more better display effect for proudct;
5.The lamp use univesal end cap,regardless of left and right sides,convenient for installation,if lamp length is over 1000mm,we will provide stainless steel to holder reinforcement in the middle;
6.Small body,save the space in the corresponding narrow place,convenient to install it;
7.Easy to install,just need 2-3 screws and 1-2 mental clips to fixed the lamp base,that's fast and firm;
8. The 120 degrees light emitting angle, Let the light shining on merchandise fully,not waste;

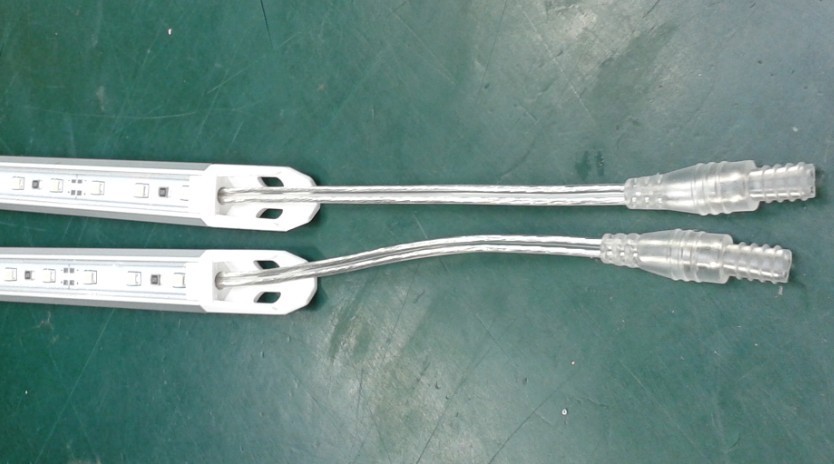

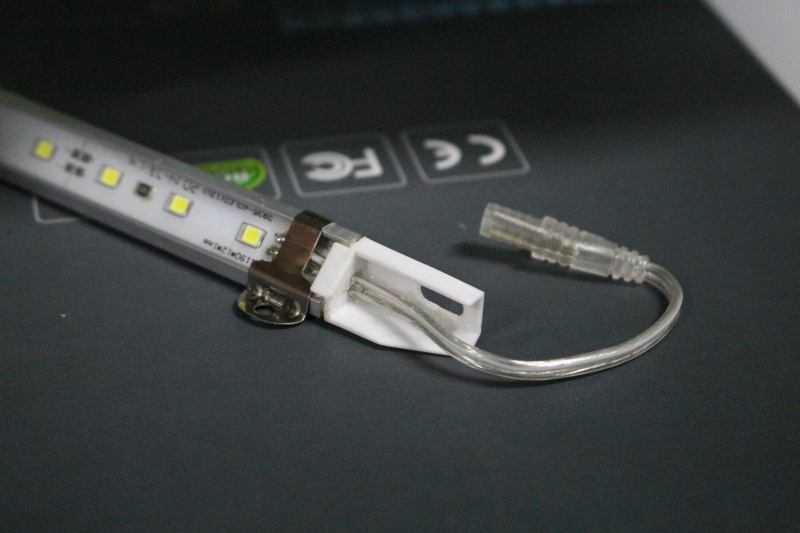

9.Crystal waterproof connectors,beautiful and durable,stong and waterproof,After using the lamp self-contained,easy to install and replacement(the crystal fittings connect to the power supply directly);

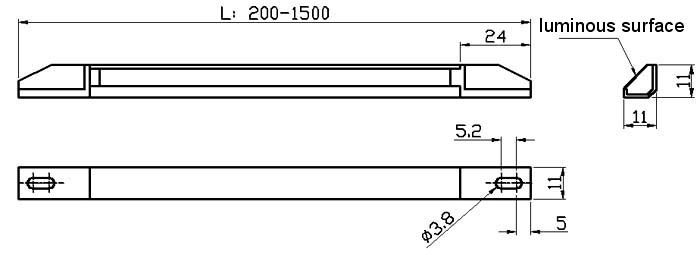

Product size drawing:
