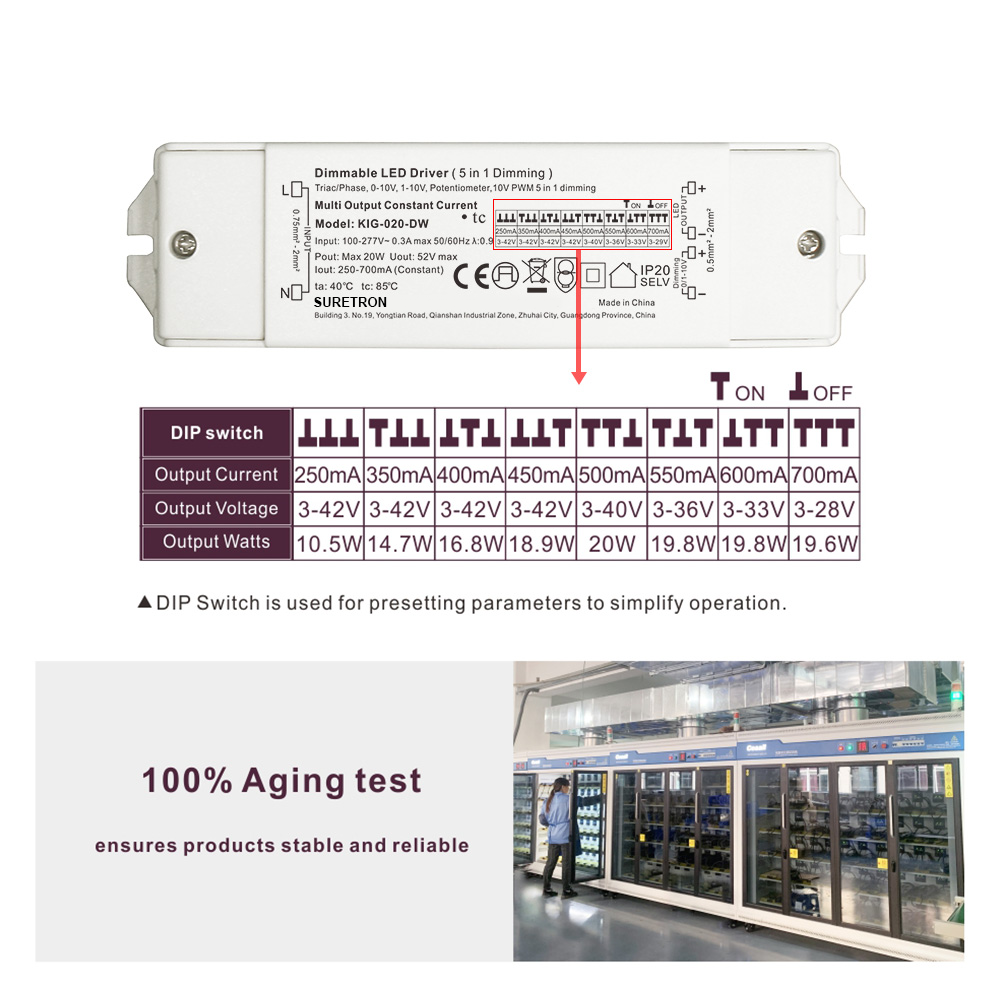

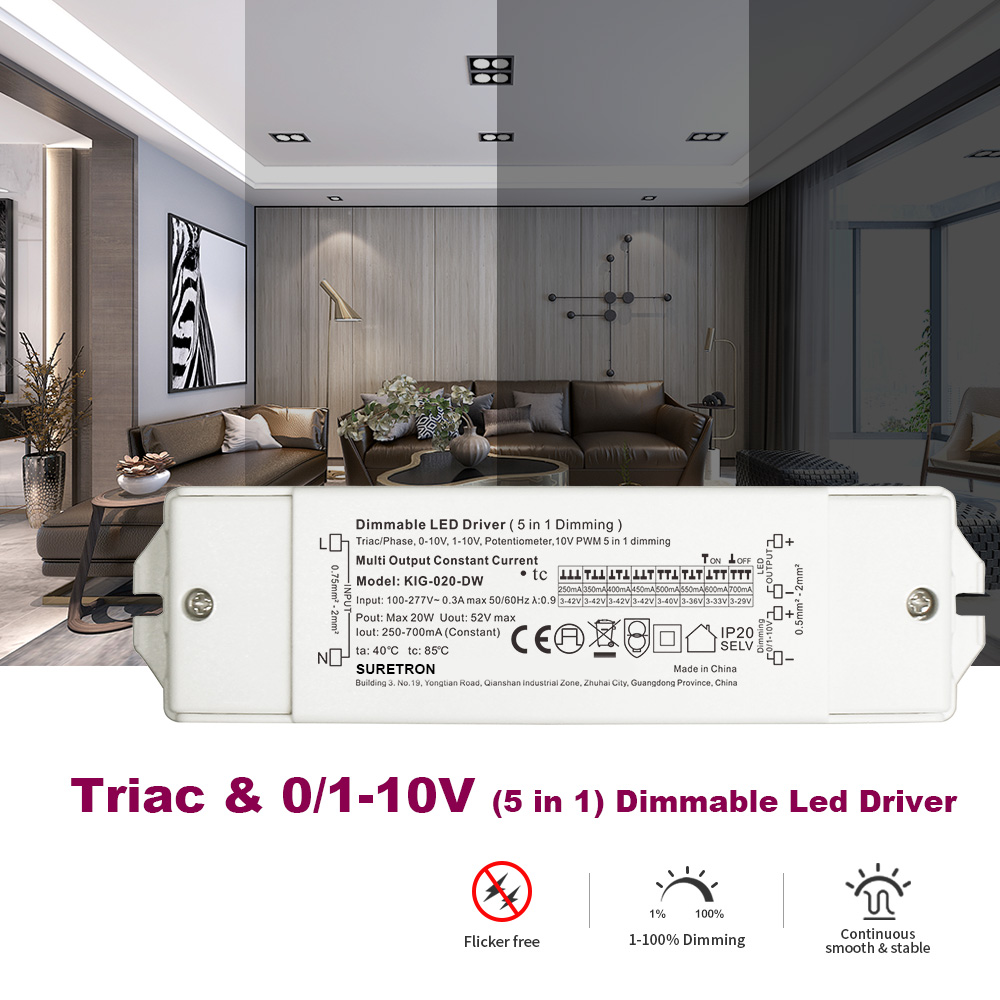

Power Supply 250ma 350ma 500ma 600ma 700ma Triac 010v Constant Current Dimmable LED Driver
Product descriptions
·Output constant current
·Range AC input :200-240VAC
·Efficiency up to 78%
·Built-in active PFC function
·Protections: short circuit/over current

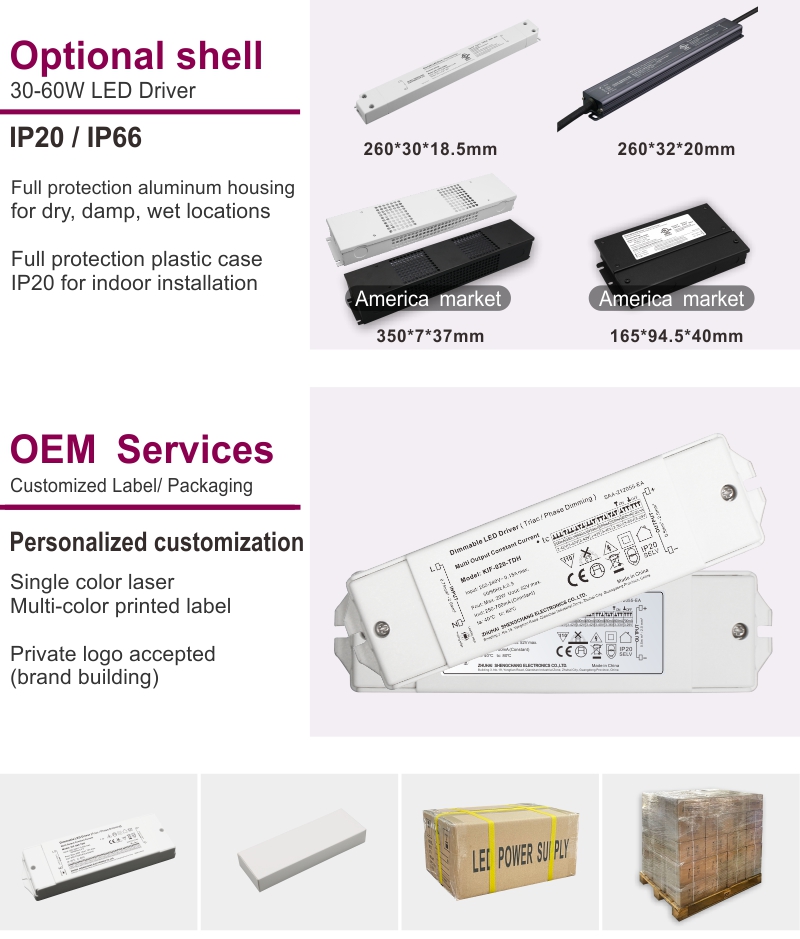

·Full protection plastic housing easy installation
·IP20 design for indoor installation
·Cooling by free air convection

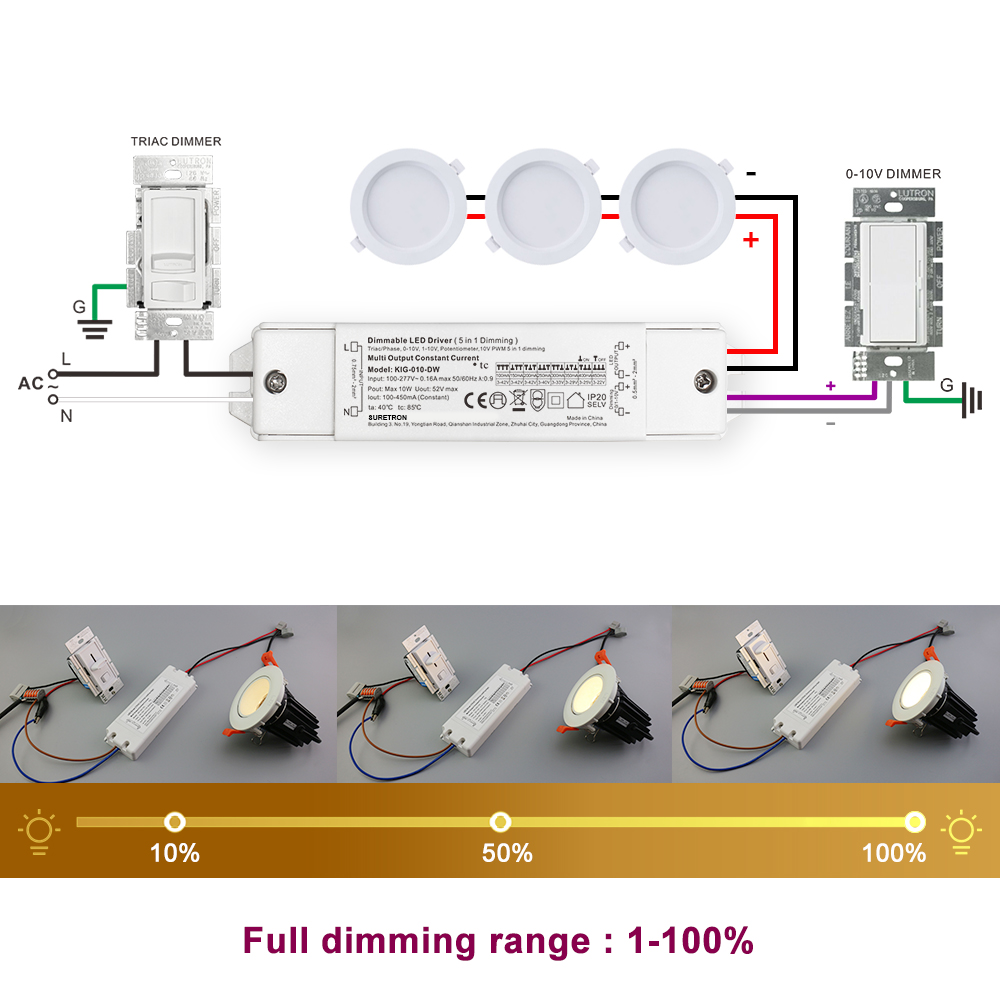

·Dimming function:

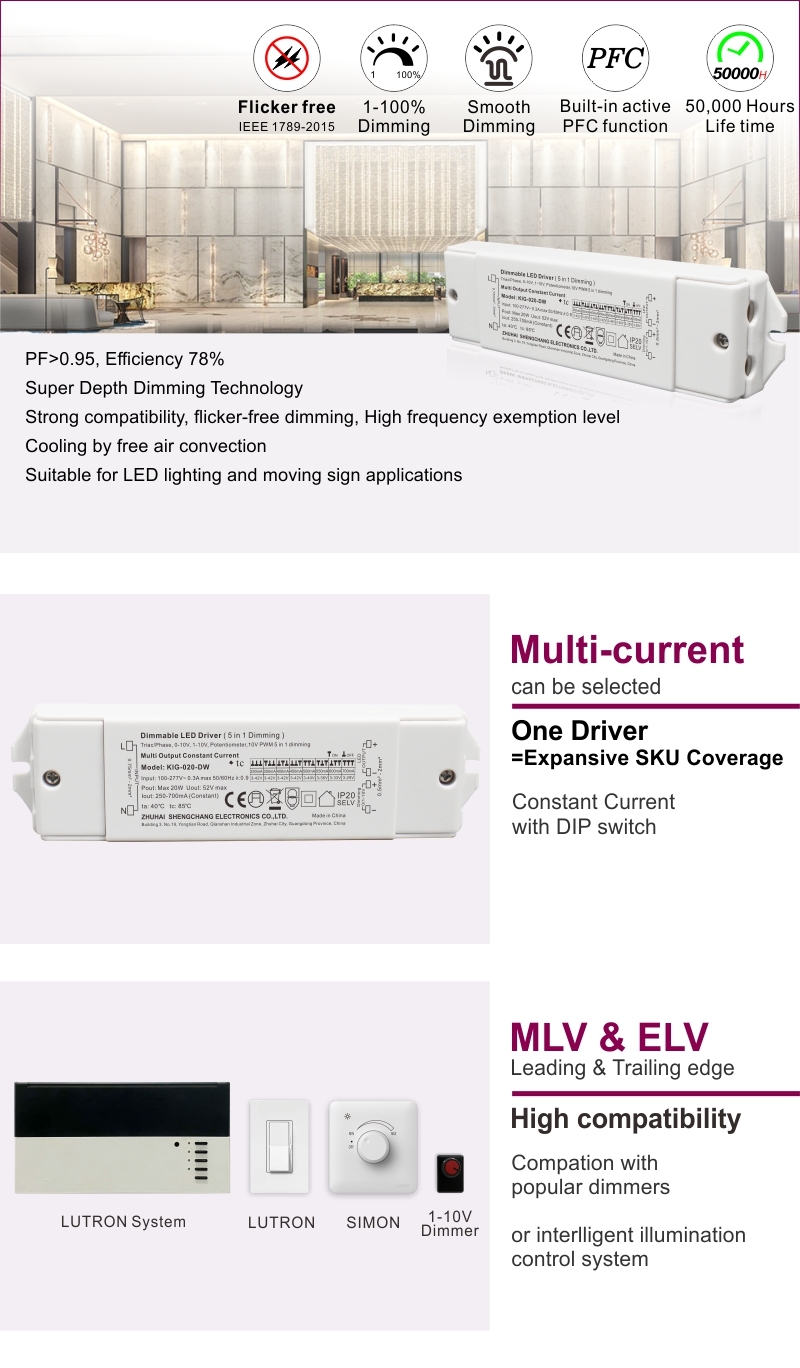

·Triac/phase cut dimming Work with leading or trailing edge Triac dimmer
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Strong compatibility, flicker-free dimming

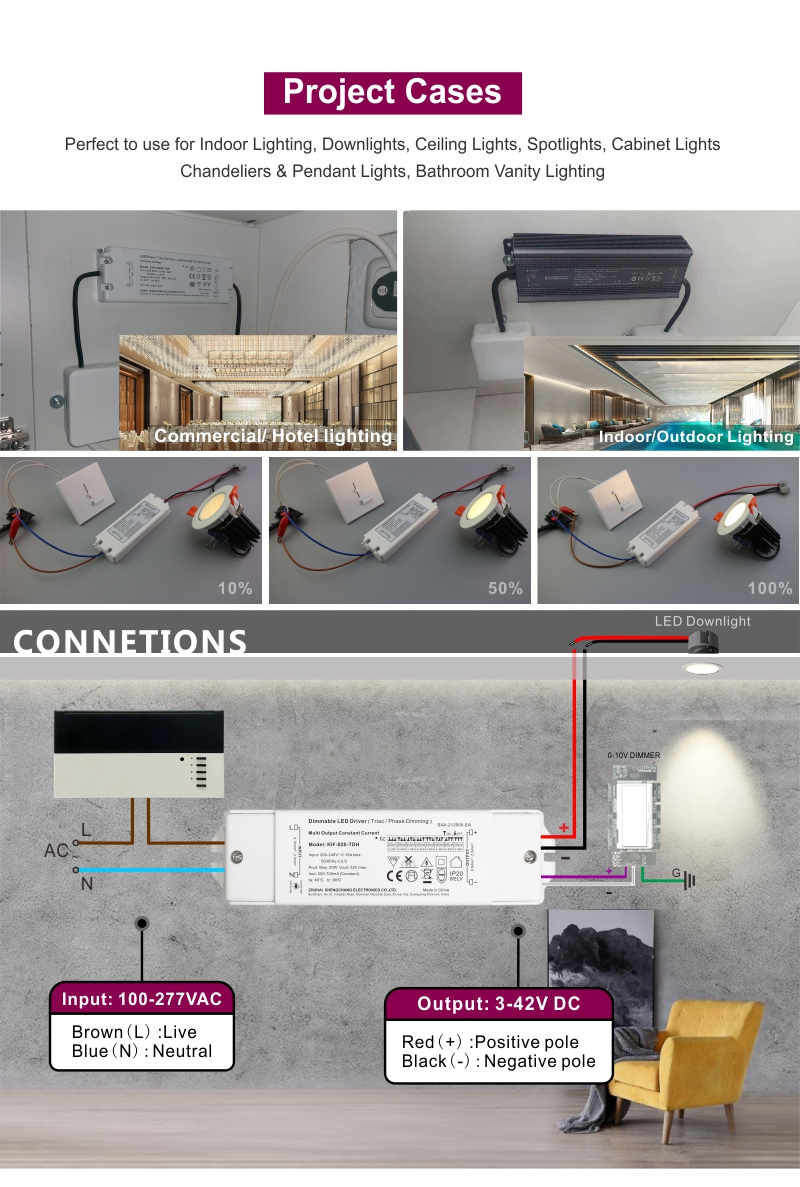

·Suitable for LED lighting and moving sign applications
Input | Rated Input Voltage | 100-277VAC |
Rated Frequency | 47-63HZ | |
Power Factor | 0.95(@120VAC 60Hz) 0.88(@277VAC 60Hz) | |
Efficiency (Typ.) | 78%(@120VAC 60Hz) 78%(@277VAC 60Hz) | |
AC Current (Max.) | 0.3A | |
Inrush Current (Typ.) | 2.56A/18us@50%Ipeak@120V 3.04A/10us@50%Ipeak@277V | |
Leakage current | <0.50mA | |
Protection | Short Circuit | Constant current mode, recovers automatically after fault condition is removed |
Output No-Load Voltage | 52V max. | |
Over temperature | Ambient temp. over 50±5℃, output current will be reduced to 50%; Ambient temp. over 60±5℃, output will be off; recovers automatically after temp. drops. | |
Protection Class: | II | |
Environ- ment | Working TEMP. | -40-+60℃ |
Working Humidity | 20-90%RH, non-condensing | |
Storage TEMP. Humidity | -40-+80℃,10-95%RH | |
TEMP. coefficient | ±0.03%/℃ (0-50℃) | |
Vibration | 10-500Hz, 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | |
Others | Weight | 0.15Kg |

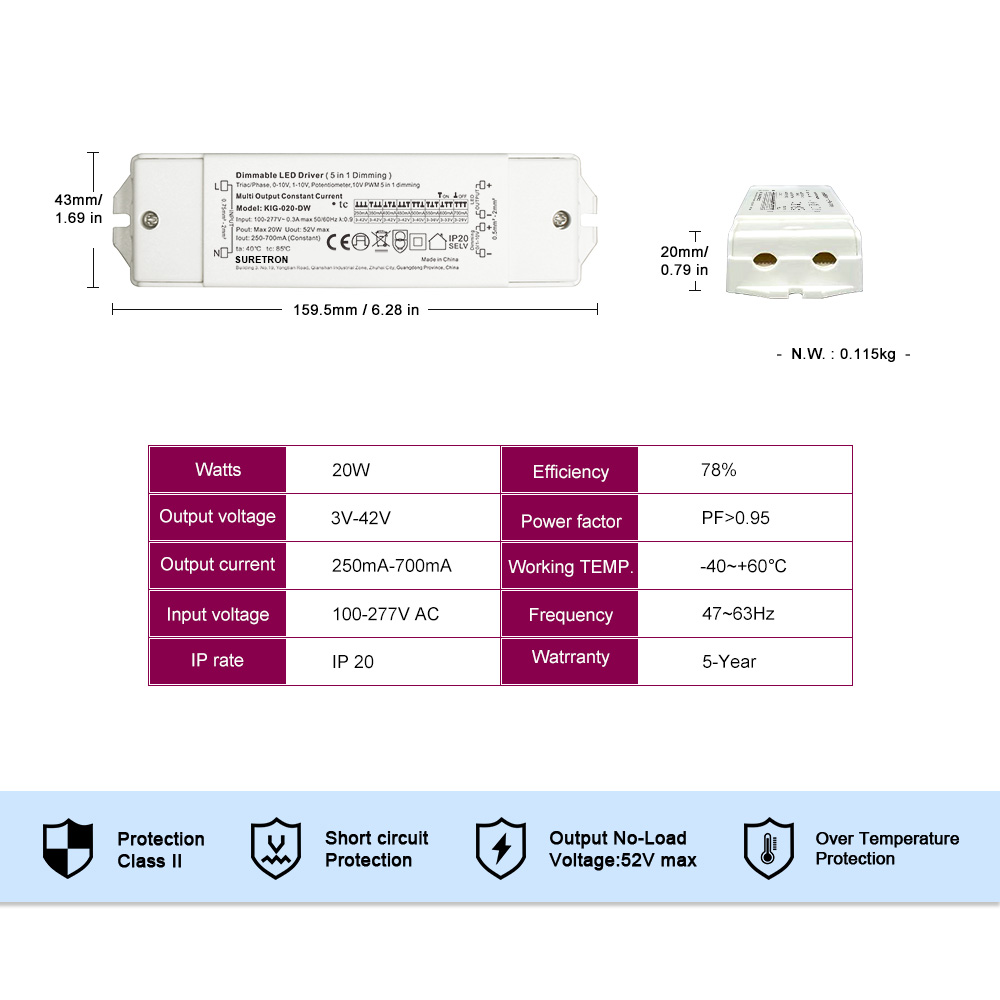

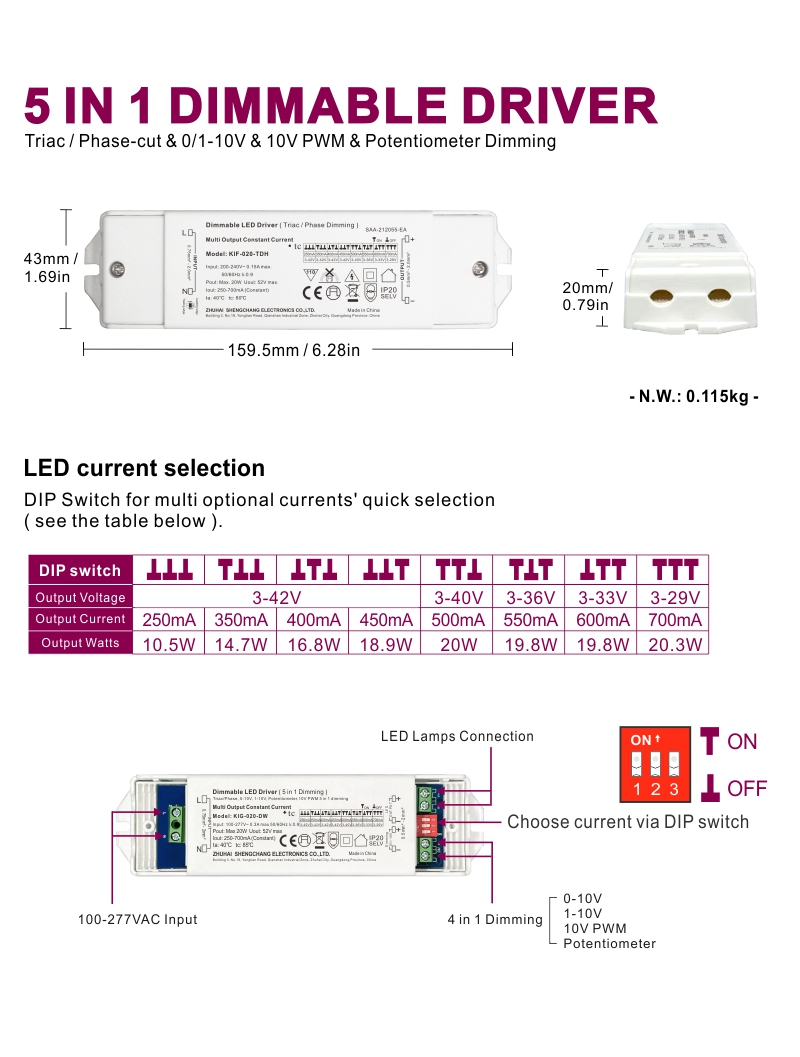

Size | 159.5*43*20mm(L*W*H) | |
packing | 320*280*215mm (50PCS/CTN ) for outer carton | |
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 1. Tolerance: includes set us tolerance, line regulation and load regulation. | |
