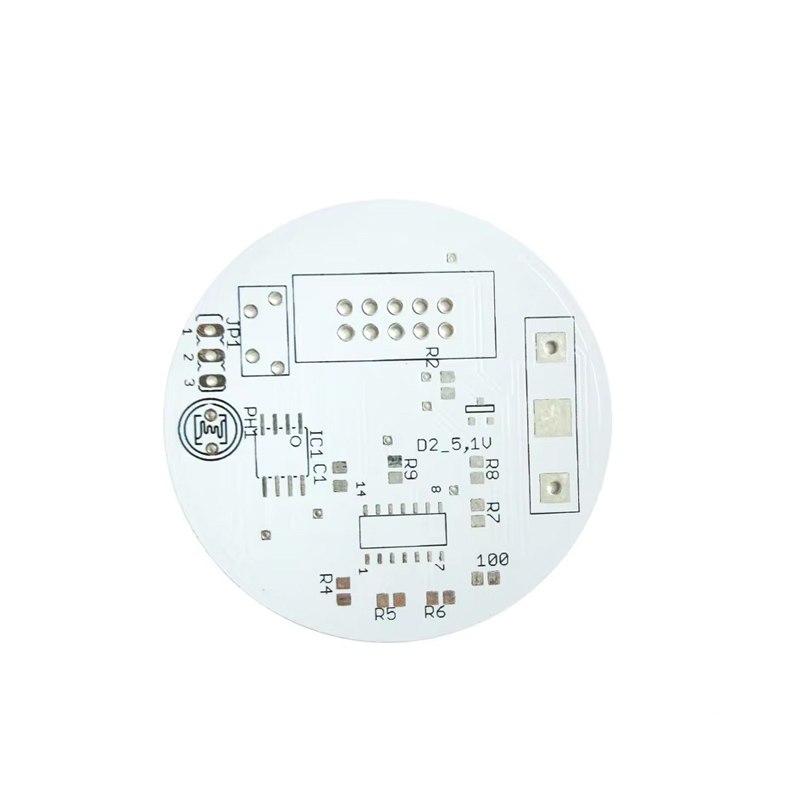

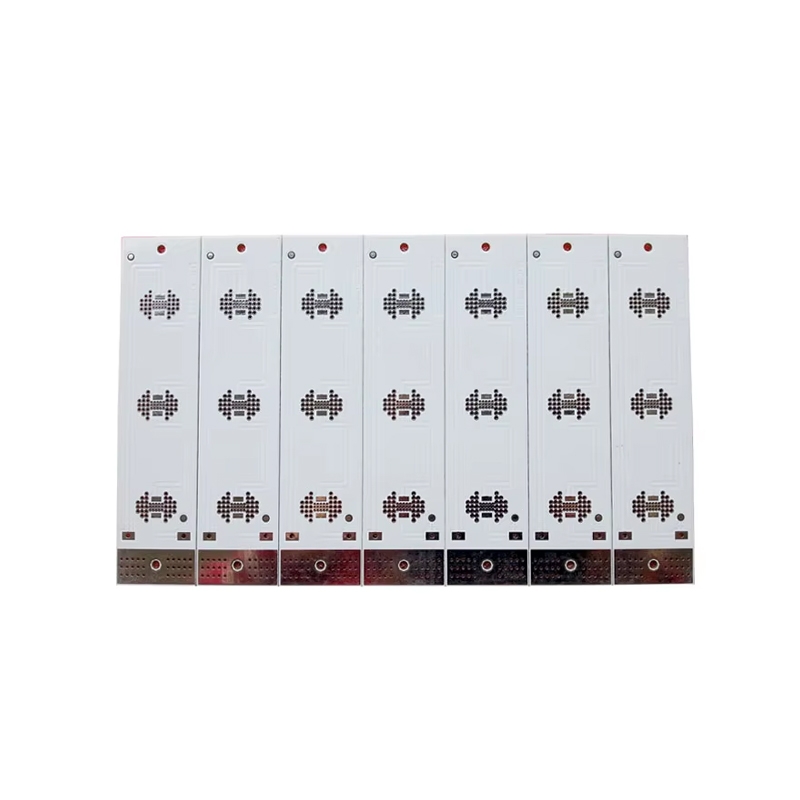

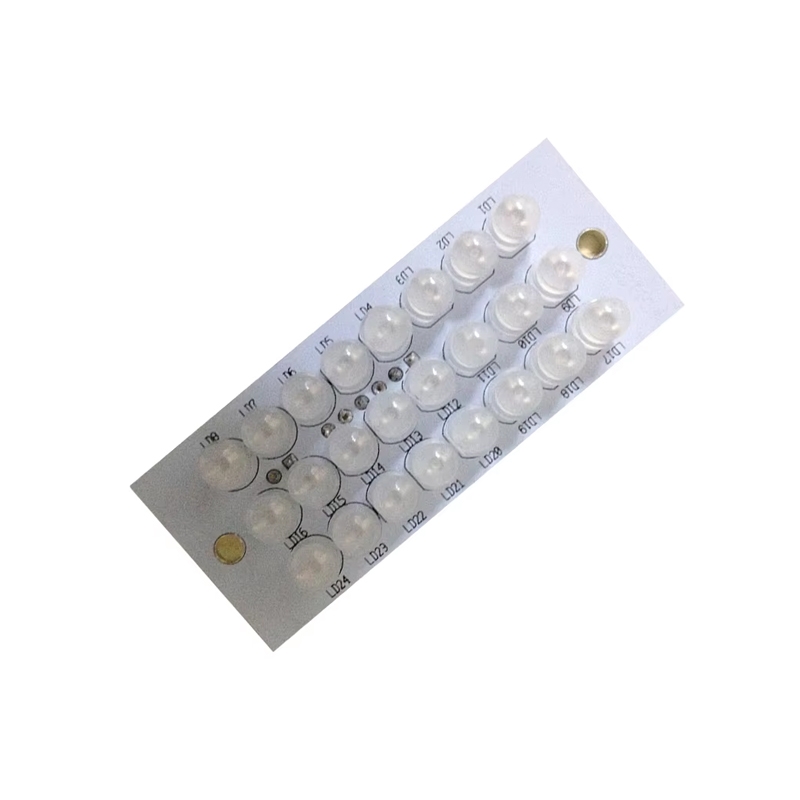

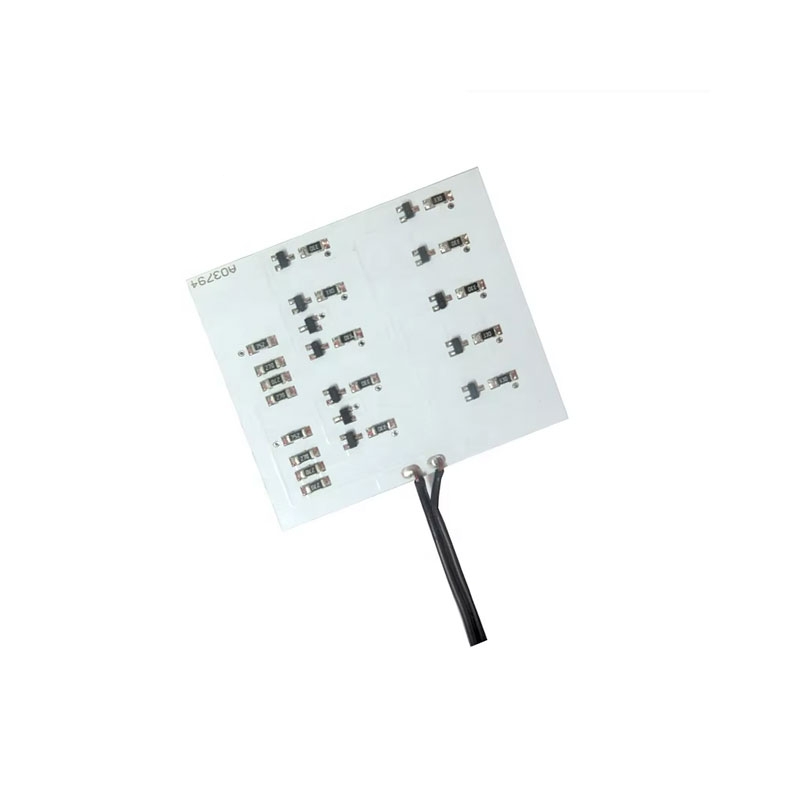

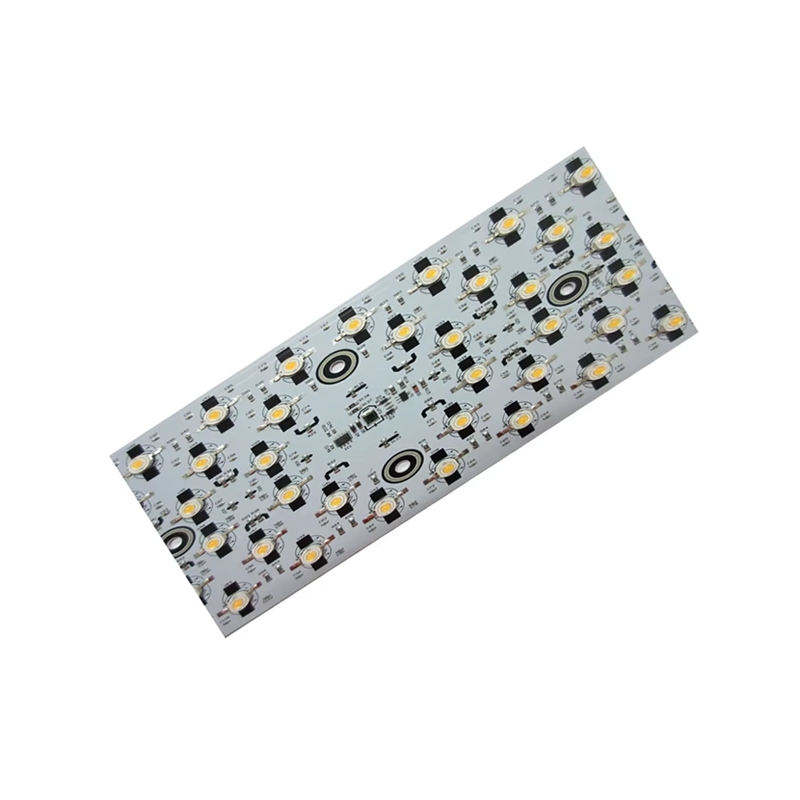

LED PCB 94v0 Circuit Board PCBA FR4 Aluminum LED light PCB PCB400
- Item
- PCB400
- Origin
- China
- Price
- MOQ
- Discuss
- Business
- Wholesale
- Customized
- Available
- Specifications
- Inquiry
- Samples
- Available
- Lead-Time
- 20days
- Payment-Tems
- T/T
- Trade-Terms
- EXW/FOB/CFR
- Sea-Port
- Shanghai/Ningbo
Lightac Industry Co.,Limited
Hot in store
-
12V 2835 SMD LED Modules with 1.2W MD190
Inquiry -
1.5W High Power 2835 LED Module MD1800
Inquiry -
1.5 Watt IP65 SMD 2835 12V LED Module MD
Inquiry -
High Lumen LED Module for Sign Board LED
Inquiry -
Indoor 3 LEDs Module Signage Lens 1.5w 1
Inquiry -
0.72W 12V DC Waterproof RGBIC LED Module
Inquiry -
3 Years 170° DC 12v 24V 0.96w IP65 SMD2
Inquiry -
Custom 12v Sign 2w Back Lit Channel Lett
Inquiry
Product Details
Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.
LED PCB 94v0 Circuit Board PCBA Manufacturer FR4 Aluminum led light pcb
Product descriptions
| Item | Aluminum Production Capability |
| base Material | Aluminum |
| Layers | 1-2 |
| Finised inner/outer copper thickness | 1-2OZ |
| Finished board thickness | 0.2-3.0mm |
| Thermal Conductivity | 0.5/1/1.5/2W/m.K |
| Minimum Size | 1500mm 1Layer |
| Controlled Impedance | +/-5% |
| Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
| Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP… |
| Specification of alumimum substrate plate:1W/m.k | ||||
| item | Test Method | Units | Index | |
| Insulation thickness | IPC-TM-650 2.2 18.1 | PM | 100 | |
| Thermal Stress | IPC-TM-650 2.4 13.1 | S | 288℃>120S | |
| Peel Strength | IPC-TM-650 2.4 8.1 | N/mm | 1.5 | |
| Withstand voltage | DC | KV | Grinding plate:1.2 Oxidation:1.5 | |
| Break-down Voltage | AC | KV | 3 | |
| CTI | GB/T 4207 | V | 575 | |
| Glass Transition Temperature | IPC-TM-650 2.4 25 | ℃ | 130 | |
| CTE(TMA) | IPC-TM-650 2.4 24 | %(50-260℃) | 0.5 | |
| Surface Resistance | IPC-TM-650 2.6 17.1 | MQ | 4.18×103 | |
| Volume Resistance | IPC-TM-650 2.6 17.1 | MQcm | 3.27×107 | |
| Dielectric Constant 1 MHZ | IPC-TM-650 2.6 5.9 | / | / | |
| Dissipation Factor 1 MHZ | IPC-TM-650 2.6 5.9 | / | / | |
| Water Absorption | IPC-TM-650 2.6 2.1 | % | <0.5 | |
| Thermal Conductivity | ASTM E 1464 | W/m-k | 1.3 | |
| Heat Resistance | / | ℃/W | 0.7-0.9 | |
| Flammability | UL 94 Vertical Law | S | t1:0,t2:0 | |
