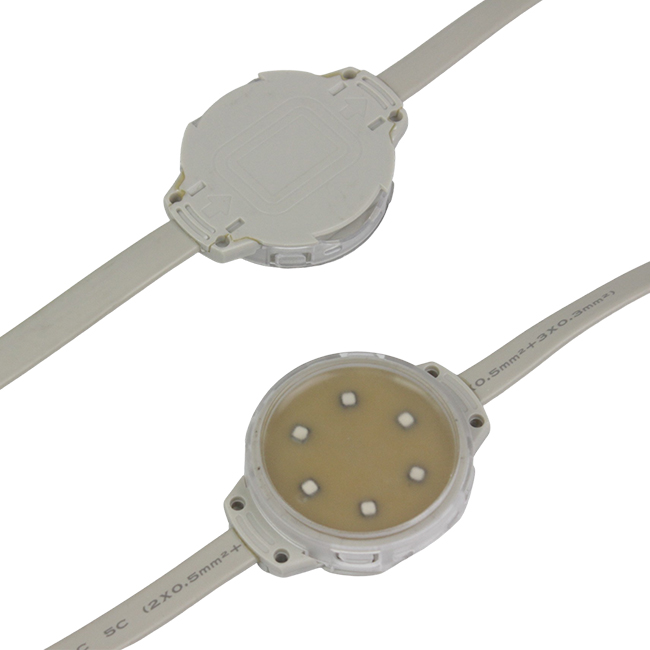

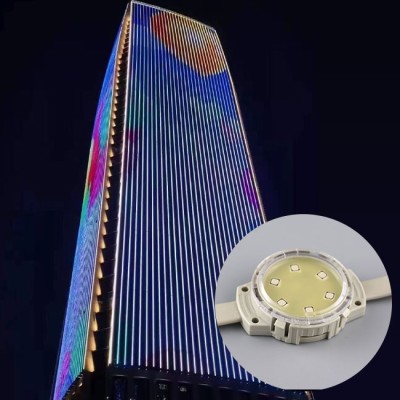

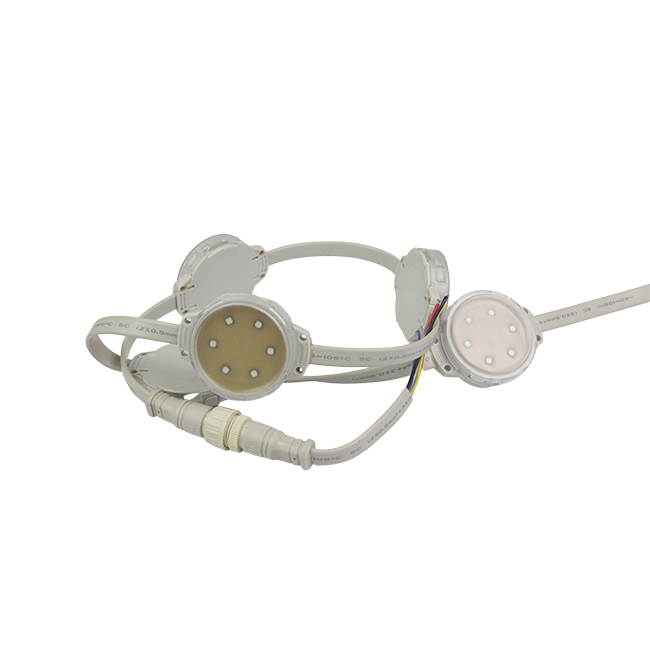

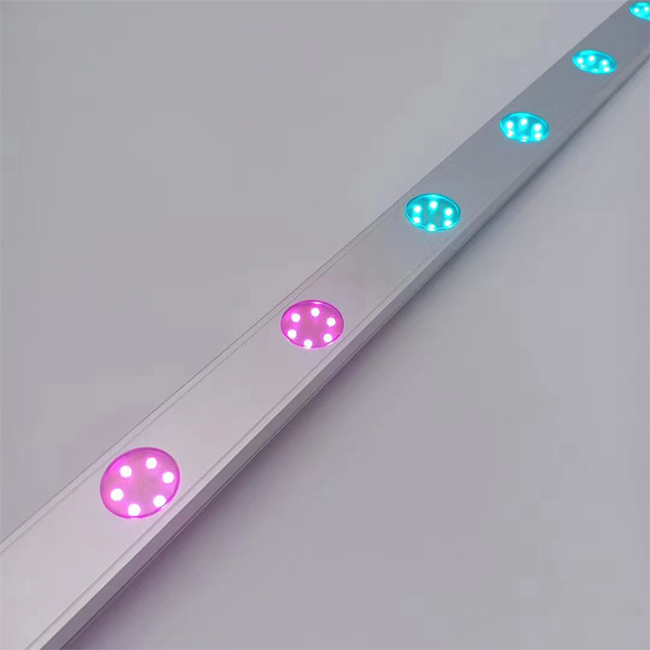

40 50MM RGBW DC24V Dot Pixel Outdoor Facade Building LED Point Dmx Pixel LED Dot Light
Product descriptions

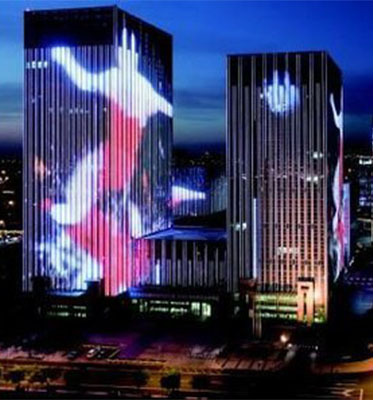

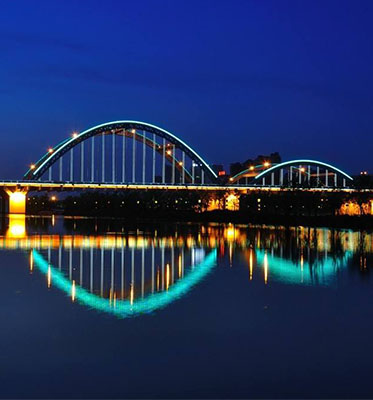

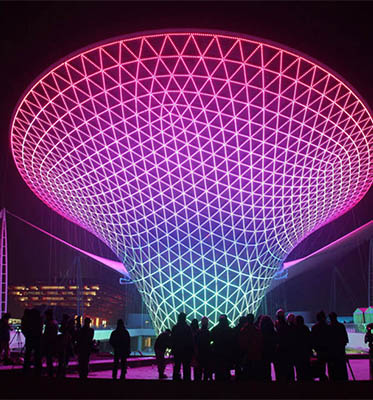

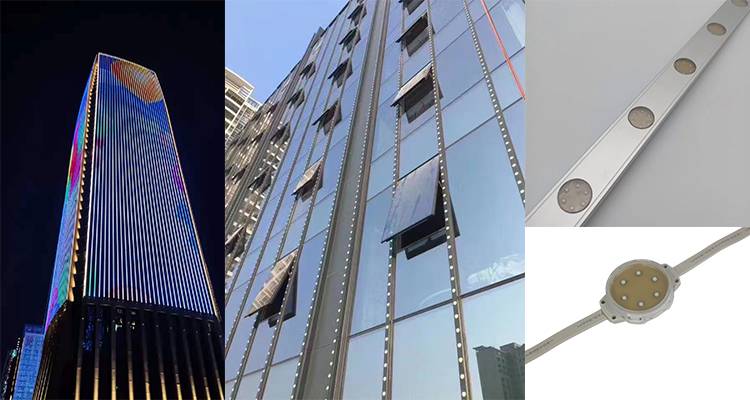

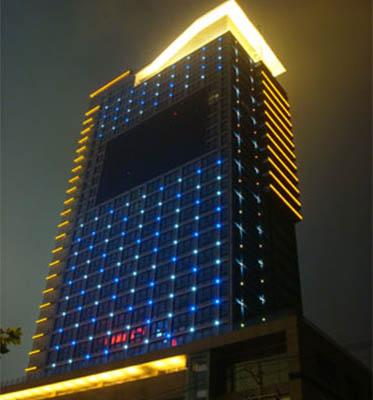

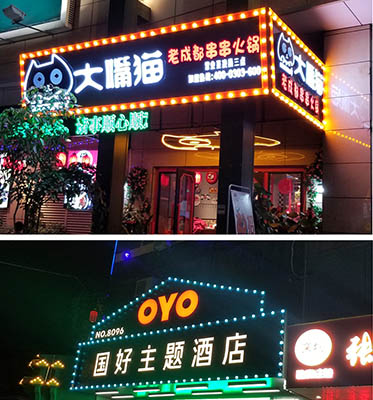

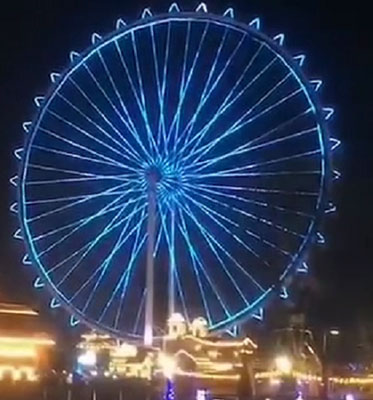

Where to use these RGB pixel lights?
| Item | LED point light | |||
| Color Temperature(CCT) | 1800-6500k, Red,Green,Blue, pink,RGB-TTL.DMX512RGB,DMX512RBGW | |||
| Efficiency(lm/W) | 110lm/W | |||
| Life Span(Hours) | 30000-50000Hours | |||
| Input Voltage(V) | DC24V | |||
| Wattage(W) | 1.5W | |||
| Working Temperature(℃) | -30℃～68℃ | |||
| Lamp Body Materails | PC | |||
| IP Rating | IP65 | |||

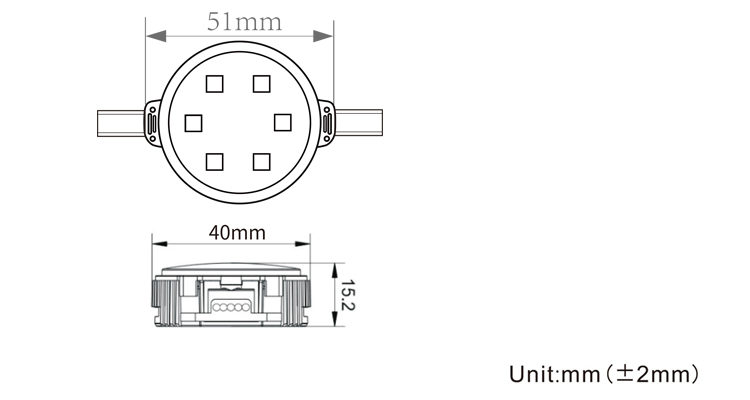

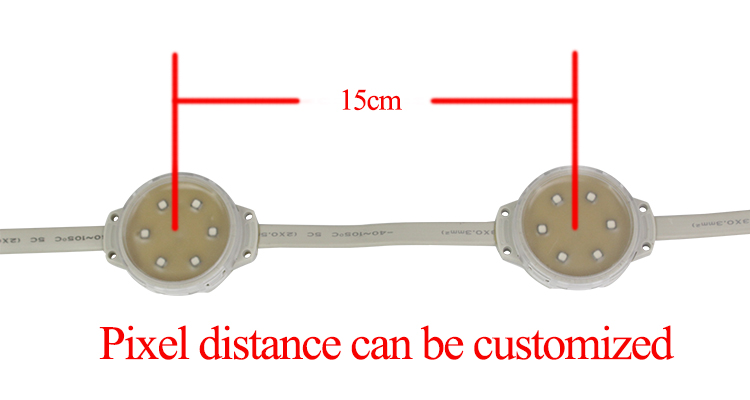

| Size(mm) | Diameter 50mm, 30pcs/strip, | |||
| Warranty | 2Years | |||
| Controller | DMX512 | |||

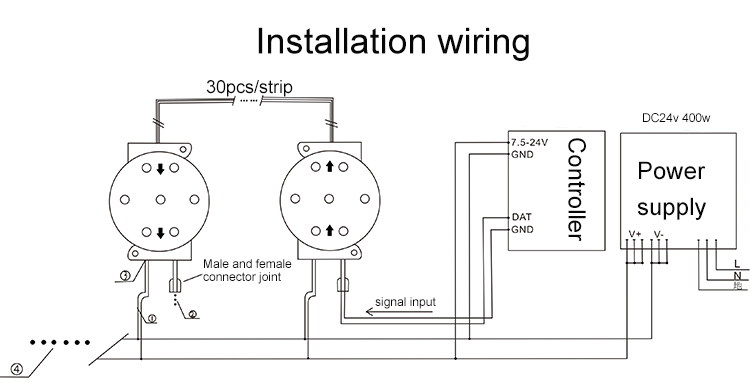

How to Connet the pixel light with a power supply and controller?
Notice
The power wire at the end of each string of lights is strictly prohibited to be connected in series with the power wire of the head of the next string of lights, and the power wire of each string of lights must be connected in parallel to the main power wire.
2.The signal wire of each port light of the controller must be connected in series, and the signal wire interruption means the signal interruption.
3.Please pay attention to distinguish the positive and negative poles of the point light source.

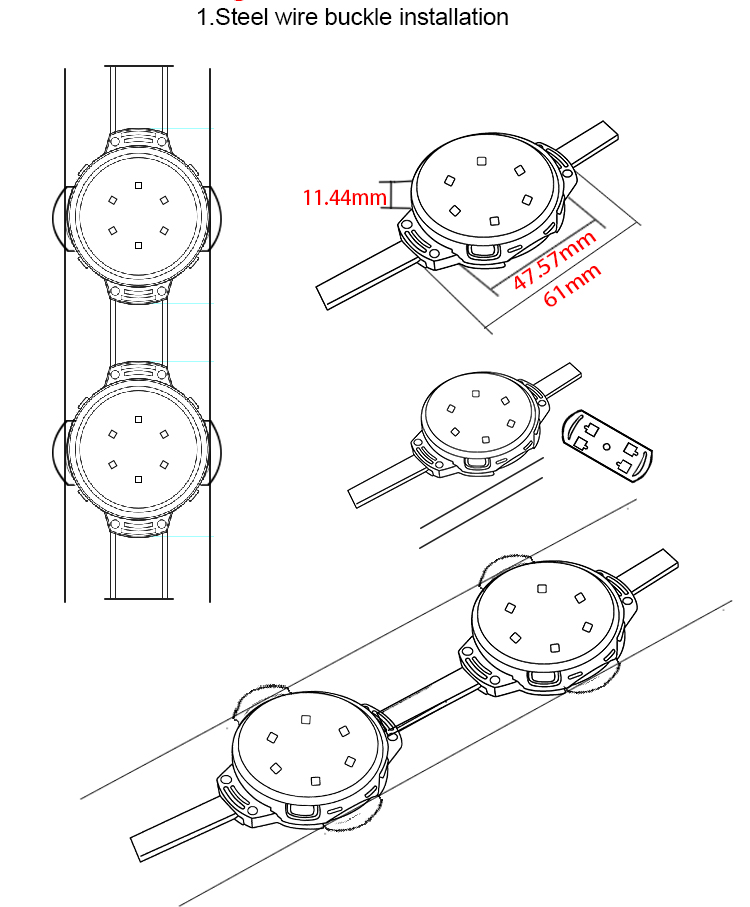

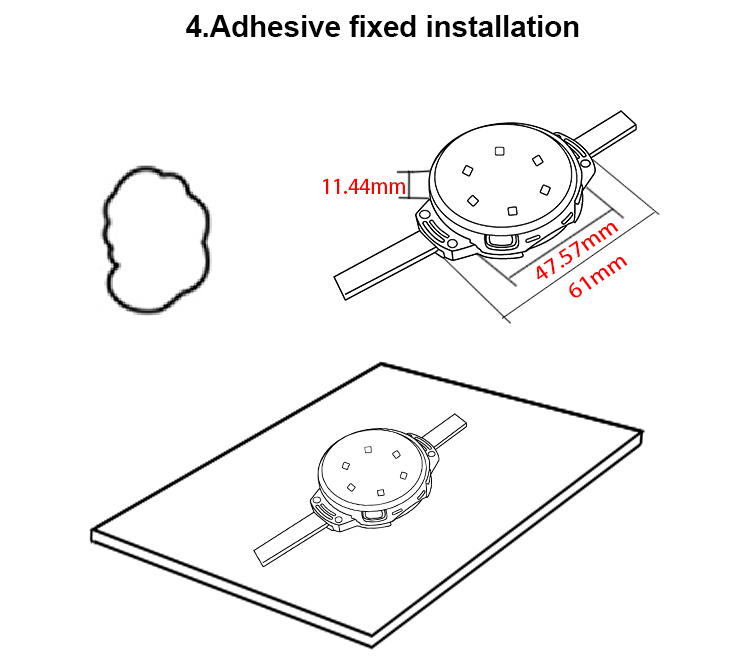

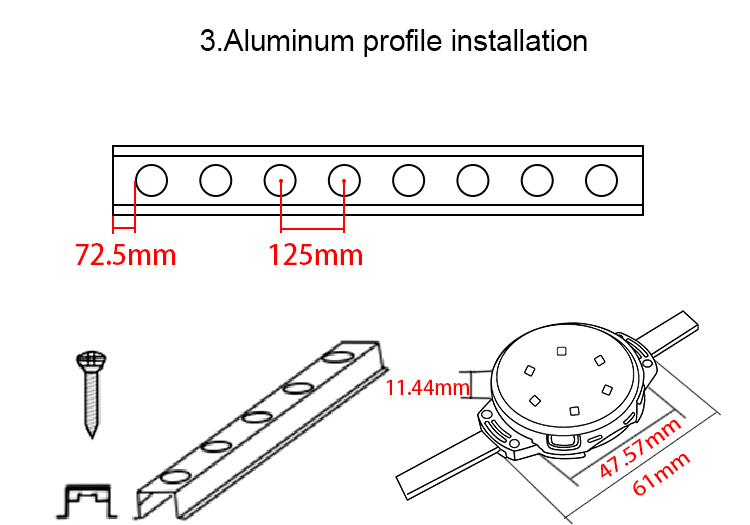

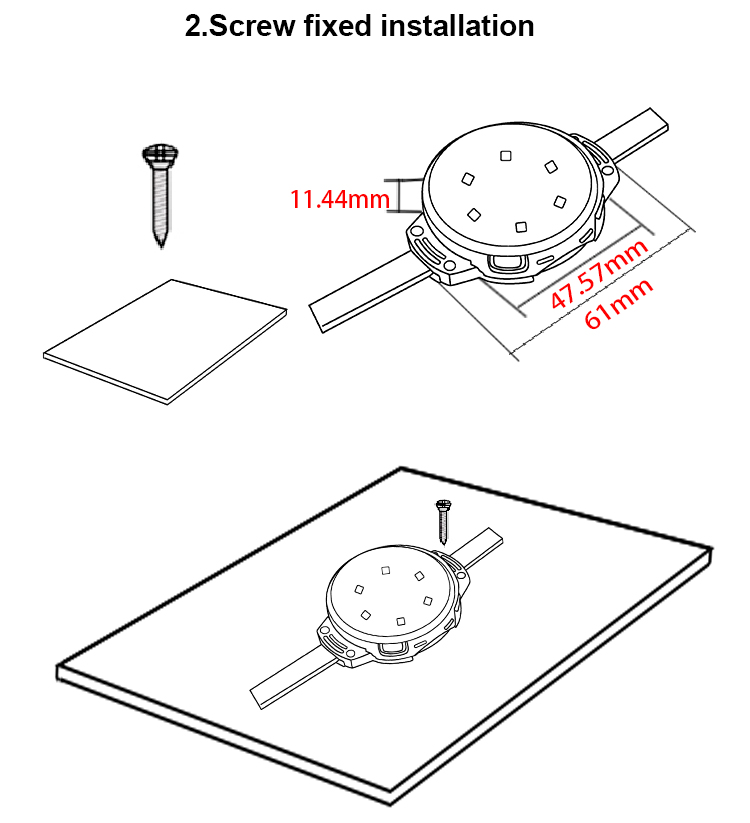

installation methods for pixel light

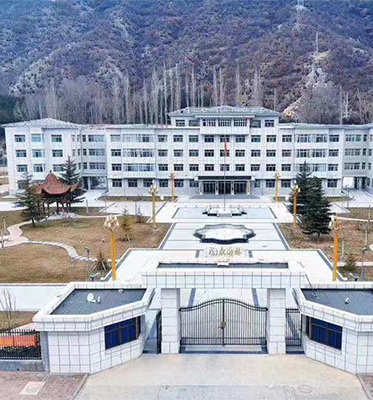

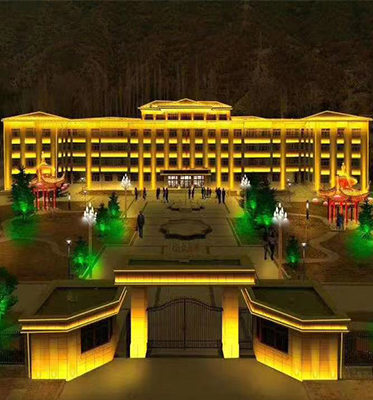

Can you provide lighting solutions?
Before
After
