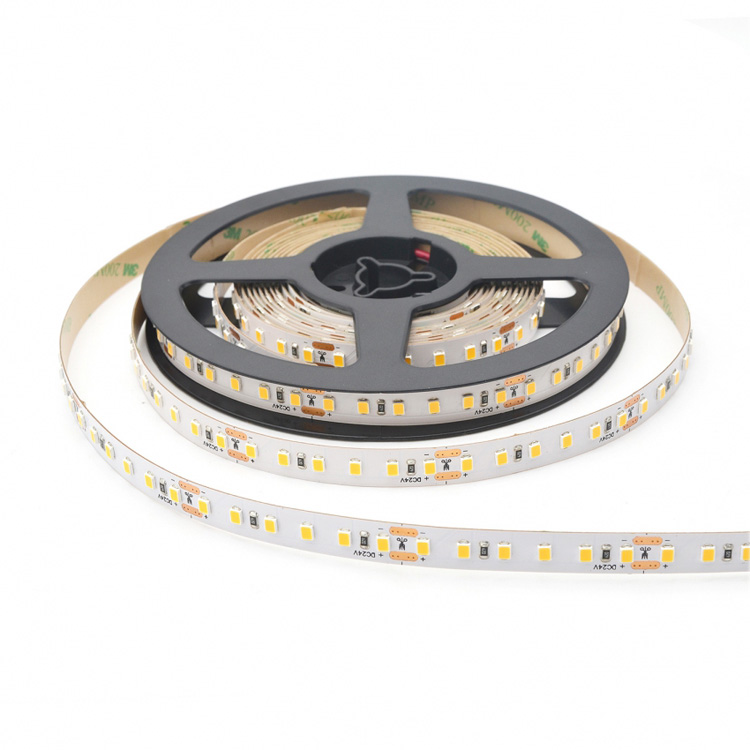

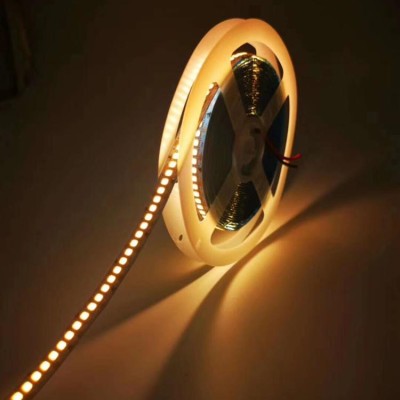

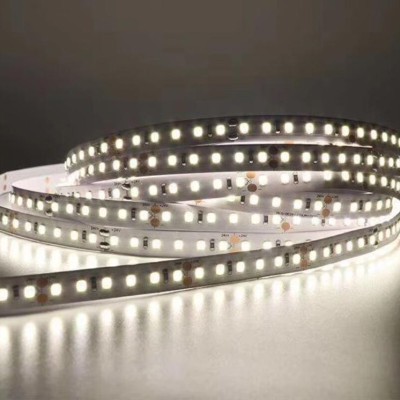

90Ra 2835 SMD 24VDC 60LEDs 12W 2700k 3000k  warm white pure white cool white LED Strip Light

Description & Specifications

Video Description

high quality 3 years warranty 90Ra 2835 SMD 24VDC 60LEDs 12W 2700k 3000k  warm white pure white cool white LED strips lighting

Life span: 50000 hours

Lower power consumption

Easy installation

No UV no IR light radiation

No mercury or other inorganics

No spots, no shadow

Highest optical efficiency

Color temperature for white:

Warm white: 2400-3500K

Pure white: 4000-5500K

Cool white: 6000-7000K

Available color: white, red, yellow, blue, green, and purple

Save and stable for using

Working voltage: DC12/24V

Golden wire copper bracket 2835SMD LED

Beam angle: 120°

High CRI: 90Ra

LED quantity: 60pcs/M

Standard length per reel: 5 meters or 10 meters per roll  (don’t include the length of wire)

Flexible PCB

PCB color: white

External power supplier

Voltage requirement: DC12V/24V

Power output type: constant voltage

IP grade: IP20

3M double adhesive tape on backside

Anti-static bag packing

Main characteristics:

Remarks:

The measured power values will be lower than the value on table above. Because it has internal resistance of the FPC.  The measured voltage values on the end of FPC will also lower than the one on the beginning side. It is also because of the resistance. When you install the strips, please use the series-parallel connection.

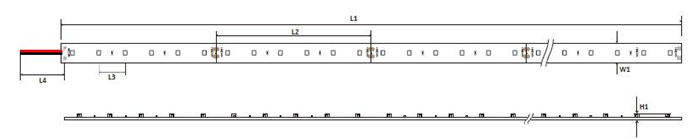

Dimensions(mm):

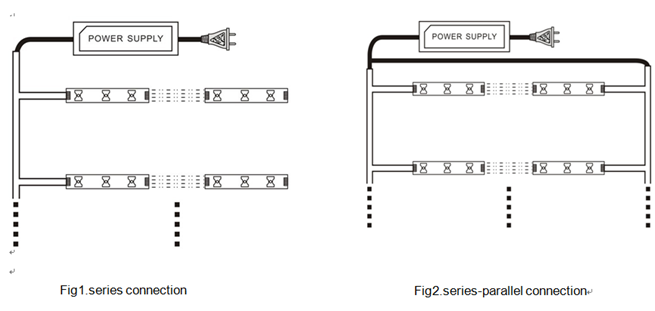

Connection:

Remarks:

Each strip can only connect up to 5 meters. Not recommend more reels. once above 5 meters, recommend series-parallel connection.

Installation notices:

Installation notices:

1.      Follow the wiring diagram to connect the strips.

2.      Please do the installation strictly according the working parameter we offered.

3.      Please keep the products under the antistatic shielding when installation. Don’t use the sharp tool to touch the products.

4.      Product installation surface must be smooth, clean. Or else product will fall off.

5.     3M double glue is on the back of the product. Tear off the protection paper then install the product to anywhere you need.

6.     Please make sure your operation reliability to ensure the life span of the light. Please don’t over-bend or over- fold the strips to avoid to damage the LED.

Applications:

Energy saving programs

Sustainable energy

Landscape lighting

Display case adornment

Artwork lighting

Commercial lighting

Museum lighting/General lighting

Amusement park adornment

Text symbols lighting

Ad decoration

Bar atmosphere

Signal sign backlight

Archway, canopy and bridge edge lighting

Auditorium walkway lighting

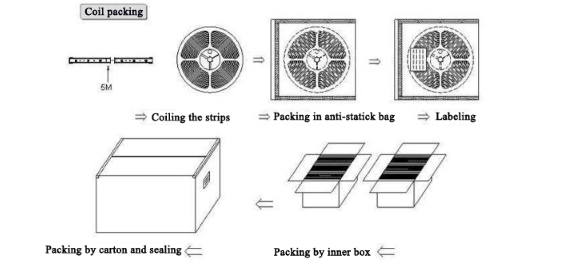

Packaging:
