LED Explosion Proof Light EXP1100
- Model
- EXP1100
- Power
- Customized
- Voltage
- Customized
- CCT
- 2700-6500K
- CRI
- Ra≥80/Ra≥90
- Source
- LED
- Material
- Aluminum
- Finish
- White/Black
- OEM
- Available
- Payment-Tems
- T/T
- Trade-Terms
- EXW/FOB/CFR
- Sea-Port
- Shanghai/Ningbo
Lightac Industry Co.,Limited
Hot in store
-
12V 2835 SMD LED Modules with 1.2W MD190
Inquiry -
1.5W High Power 2835 LED Module MD1800
Inquiry -
1.5 Watt IP65 SMD 2835 12V LED Module MD
Inquiry -
High Lumen LED Module for Sign Board LED
Inquiry -
Indoor 3 LEDs Module Signage Lens 1.5w 1
Inquiry -
0.72W 12V DC Waterproof RGBIC LED Module
Inquiry -
3 Years 170° DC 12v 24V 0.96w IP65 SMD2
Inquiry -
Custom 12v Sign 2w Back Lit Channel Lett
Inquiry
Product Details
Please kindly note:
Below description is just for reference,
contact us if in need of more information.
Some items may upgrading without update here,it may exist the little difference, please kindly note it.
OEM customized is acceptable,We can suggest the items if you can provide the detail reqeuirements.

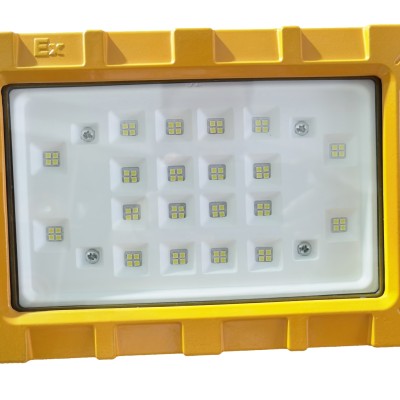

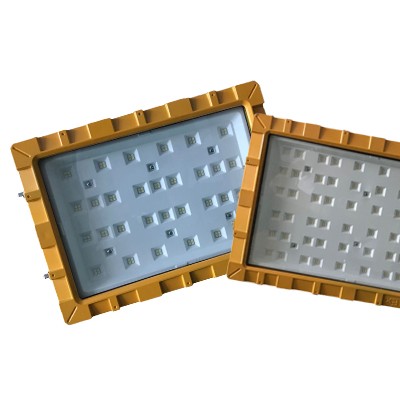

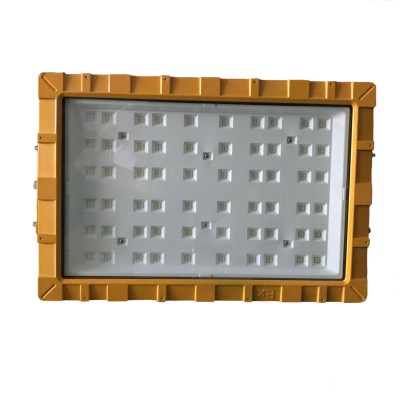

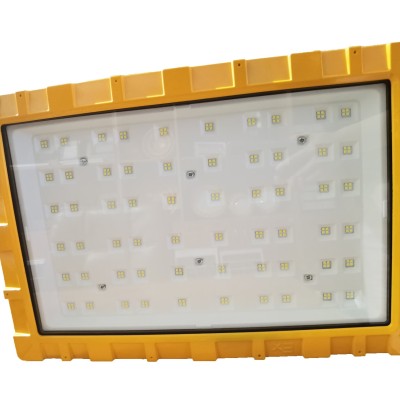

High power LED explosion proof floodlight 150w 200w dangerous environment
Description & Specifications
Products Description
Technical Parameters
| Explosion-proof Grade | Exd II C T6 Gb |
| Power | 50W / 100W /150W / 200W |
| Led Luminous Efficiency | 140LM/W |
| Luminous Flux | 7000LM / 14000LM / 21000LM / 28000LM |
| CCT | 2700-6000K |
| CRI | Ra＞70 |
| Input Volatge Range | AC85-265V |
| Frequency Range | 47-63Hz |
| Power Factor | PF＞0.97 |
| Driver | Specialized Power |
| Efficiency | 90% |
| Led light source | Bridgelux 3030 SMD |
| Max. case Temperature | Tcase=+85°C |
| Working Humidity | 20 ~ 95% RH non-condensing |
| Storage Temperature Humidity | -40 ~ +60℃, 10 ~ 95% RH |
| External dimension | 250*170*130mm / 320*230*160mm / 460*310*200mm |
| Net wight | 3.55kg / 6.2kg / 12.5kg |
| Beam Angle | 90°/120° |
| IP Grade | IP66 |
| Working Life-span | 50000H |
| Warranty | 3 years |
Beam Angle
Installation
Application
* Oil field, oil refineries
* Offshore oil platform, power plants
* Gas stations
* Oil tanks, wharf, tunnel
* Pumping station
* Substation
